FD 22-4 DI CR Contitech Industrial Rubber Air Spring EB-80-45 FESTO Bellows Cylinder

FD 22-4 DI CR Contitech Industrial Rubber Air Spring EB-80-45 FESTO Bellows Cylinder

  • FD 22-4 DI CR Contitech Industrial Rubber Air Spring EB-80-45 FESTO Bellows Cylinder
  • FD 22-4 DI CR Contitech Industrial Rubber Air Spring EB-80-45 FESTO Bellows Cylinder
FD 22-4 DI CR Contitech Industrial Rubber Air Spring EB-80-45 FESTO Bellows Cylinder
Product Details:
Place of Origin: China
Brand Name: Contitech
Certification: ISO/TS16949:2009
Model Number: FD 22-4 DI CR
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: US$149.9-159.9/PC
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 3-7 Working Days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Rubber Air Spring Convolution: Double
Package Size: 24*24*24 Cm OEM Number: FS 22-4 DI
Style: Dunlop Springride 2 3/4 X 2 Net Weight: 0.5KG
Material: Rubber Color: Black
Highlight:

Contitech industrial rubber air spring

,

FESTO bellows cylinder EB-80-45

,

FD 22-4 DI CR air spring

FD 22-4 DI CR Contitech Industrial Rubber Air Spring EB-80-45 FESTO Bellows Cylinder
Product Specifications
TypeDouble Convoluted Air Spring
BrandCONTITECH
Model No.FD 22-4 DI CR
Weight0.5KG
MaterialMain Rubber
Order No.69341
Product Identification
CONTITECH FD22-4
CONTITECH FD 22-4
CONTITECH FD22-4 DI
CONTITECH FD 22-4 DI
CONTITECH FD22-4 DI CR
CONTITECH FD 22-4 DI CR
Compatible Part Numbers
FESTO EB-80-45
FESTO EB 80 45
FESTO EB80 45
DUNLOP 2 3/4" x 2
DUNLOP SP2907

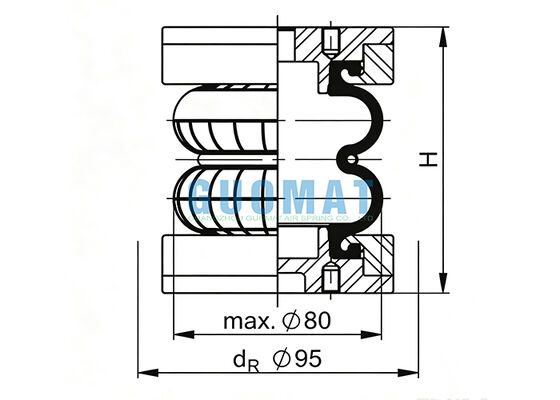

Technical Data
Center distance between mounting threads36mm
Maximum outer diameter80mm
Maximum installation space95mm
Cover diameter78mm
Mounting threadM6
Air HoleG1/4
Minimum installation height65mm
Maximum extended height110mm
Air Spring Advantages
Compared with conventional mechanical springs, industrial rubber air springs provide flexible pneumatic support and effective vibration isolation. By adjusting the internal air pressure, the air spring can provide different load-support characteristics for different operating conditions.
Installation & Maintenance Guidelines
Before installation, check the mounting surface, connection dimensions, air inlet, and available installation height. The air spring should be installed without excessive twisting or lateral deformation.
During operation:
  • Check the air spring for cracks, cuts, or abnormal wear
  • Inspect metal mounting components regularly
  • Check for air leakage around fittings and connections
  • Maintain the recommended operating pressure
  • Avoid contact with sharp objects, excessive heat, oil, or aggressive chemicals
  • Replace the air spring if serious rubber deterioration or leakage is detected
CONTITECH FD 22-4 DI CR Industrial Rubber Air Spring

Tag:

air helper springs,

air suspension parts,

convoluted air spring
