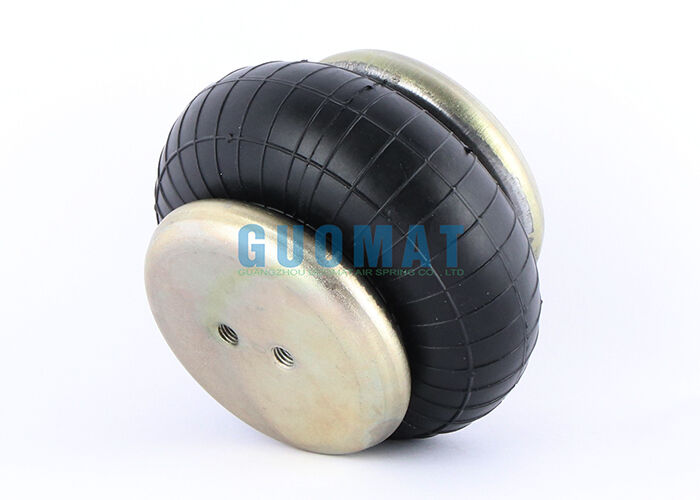

EB-145-60 FESTO Bellows Cylinder Replacement G1/8 Air Hole Single Convoluted Air Spring

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B4060

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$49.9-59.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Product Warranty:	12 Months
Item:	Industrial Air Spring	Air Inlet:	G1/8
Sample:	Avialable	Air Spring Type:	Single
Fuction:	Reduce Shock	Packing Size:	242424(cm)
Highlight:	FESTO bellows cylinder replacement , G1/8 air hole air spring , single convoluted industrial air spring

EB-145-60 FESTO Bellows Cylinder Replacement G1/8 Air Hole Single Convoluted Air Spring

The GUOMAT 1B4060 is a single convoluted rubber air spring designed as a replacement solution for FESTO EB-145-60 bellows cylinder applications. With a compact single-convoluted structure and G1/8 air connection, it provides reliable pneumatic lifting, pressing, positioning, vibration isolation, and shock absorption for industrial equipment.

The flexible rubber bellows operates through compressed air to provide smooth movement and controlled force. Compared with conventional mechanical cylinders, an air spring can offer low-friction operation and effective vibration isolation while requiring no traditional piston rod.

GUOMAT air springs are suitable for automation equipment, pneumatic machinery, industrial handling systems, packaging equipment, and other applications where compact pneumatic actuation or isolation is required.

Replacement Part Numbers

FESTO EB-145-60
FESTO EB 145-60
FESTO EB 145 60

Technical Specifications

Air Hole	G1/8
Threaded Hole	M8
Center-to-Center Distance Between Threaded Holes	20mm
Maximum Outer Diameter	145mm
Cover Plate Diameter	90mm
Maximum Height	110mm
Minimum Height	50mm

Product Advantages

The 1B4060 air spring combines a compact bellows structure with pneumatic flexibility, making it an effective alternative for applications requiring controlled vertical movement or vibration isolation. The G1/8 air port allows convenient connection to compatible pneumatic systems.

GUOMAT can manufacture replacement air springs according to reference models, dimensions, mounting requirements, and customer specifications, supporting both standard replacement orders and OEM applications.

Packaging & Delivery

1 piece packed in a protective poly bag
Individual carton packaging available
Product model and quantity marked on the outer carton
Customer logo and customized packaging can be supported
OEM and bulk orders accepted
Suitable for international air, sea, and express shipment

Warranty & Support

12-Month Warranty: GUOMAT provides a 12-month warranty against manufacturing defects under normal operating and installation conditions.

After-Sales Support: Before ordering, customers can provide the original air spring model, dimensions, photos, or installation information. GUOMAT can help confirm the appropriate replacement model and connection configuration.

For replacement requirements involving FESTO EB-145-60, please contact GUOMAT with your application details and required quantity.
