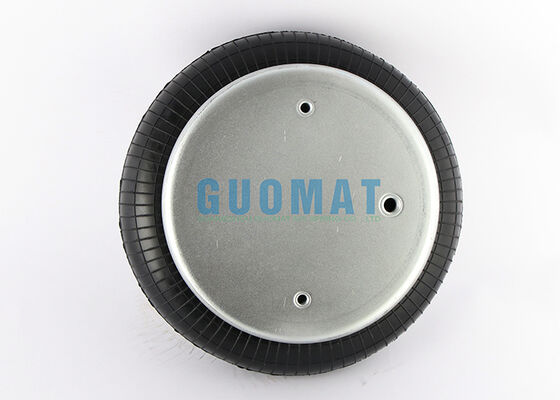

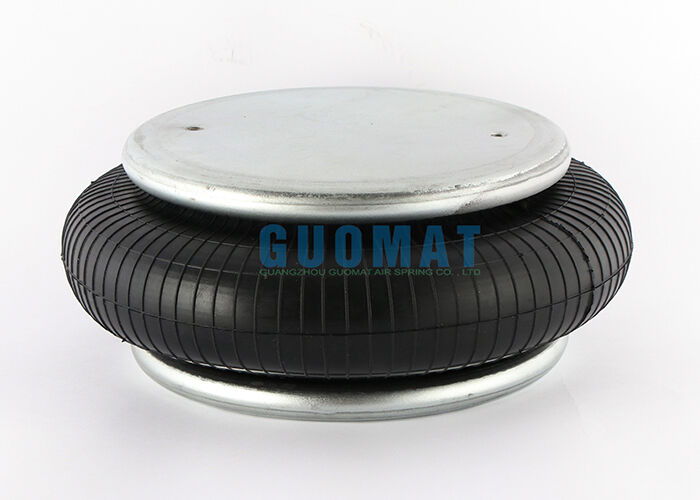

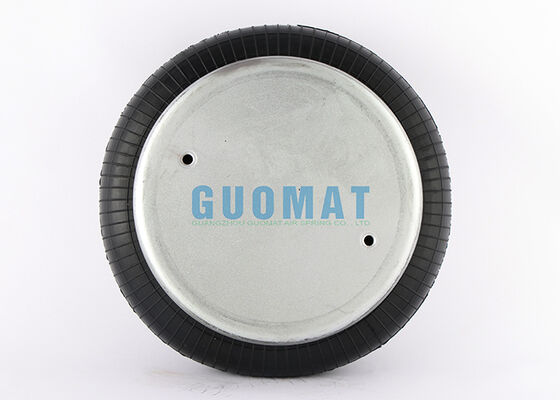

G1/4 Air Hole EB-325-95 FESTO Single Convoluted Air Bellow M8 Threaded Hole Air Spring

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B5330M8G1/4

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$49.9-59.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Shock Absorber Type:	Gas-Filled
Type Name:	Convoluted Air Spring	Air Spring:	Convoluted Type Air Spring
Corrosionresistance:	Excellent	Position:	Industrial Machine
Contitech:	FS330-11	Package:	Carton
Highlight:	G1/4 air spring with M8 threaded hole , FESTO single convoluted air bellow , industrial air spring with warranty

G1/4 Air Hole EB-325-95 FESTO Single Convoluted Air Bellow M8 Threaded Hole Air Spring

Product Overview

Single convoluted air spring with reinforced rubber bellows and metal connection components designed for vibration isolation, shock absorption, lifting, positioning, and pneumatic height adjustment applications.

Product Specifications:

GUOMAT Number: 1B5330M8G1/4
Type: Single Convoluted Air Spring / Air Bellow
Construction: Reinforced rubber bellows with metal connection components
Function: Vibration isolation, shock absorption, lifting, positioning, and pneumatic height adjustment
Design: Compact single-convoluted structure
Application: Industrial machinery, automation equipment, pneumatic systems, and vibration isolation systems

OE Manufacturer Numbers

Technical Specifications

Cover plate diameter	228mm
Air Hole	G1/4
Threaded holes	M8
Center-to-center distance between threaded holes	157.5mm
Center-to-center distance between threaded hole and air hole	73mm
Maximum height	150mm
Minimum height	51mm
Maximum outer diameter	325mm

Why Choose GUOMAT Air Springs?

GUOMAT specializes in the development and production of industrial air springs, rubber air bellows, air suspension components, and vibration isolation products. Our replacement air springs are available in various configurations to meet different equipment requirements.

Stable rubber bellows construction
Multiple connection and mounting options
Suitable for OEM replacement applications
Flexible production for different specifications
Quality inspection before shipment
Support for bulk and wholesale orders
Technical assistance for model and dimension confirmation

Bellows Cylinder EB Series Specifications

Part Number	B1 ±0.2	D1 max.	D2	D3	D4	EE	F1 ±0.2	H1	H2	H3	T1 min.	S max.	1) max.
EB-145-60	20	145	160	90	M8	G1/8	-	90	50	110	15	10	20°
EB-165-65	44.5	165	180	108	M8	G1/4	0	90	51	115	15	10	20°
EB-215-80	70	215	230	141	M8	G3/4	0	110	50	135	15	10	20°
EB-250-85	89	250	265	161	M8	G3/4	38.1	110	51	140	15	10	20°
EB-325-95	157.5	325	340	228	M8	G1/4	73	130	51	150	15	10	15°
EB-385-115	158.8	385	400	287	M8	G1/4	79.4	145	51	175	15	10	15°
