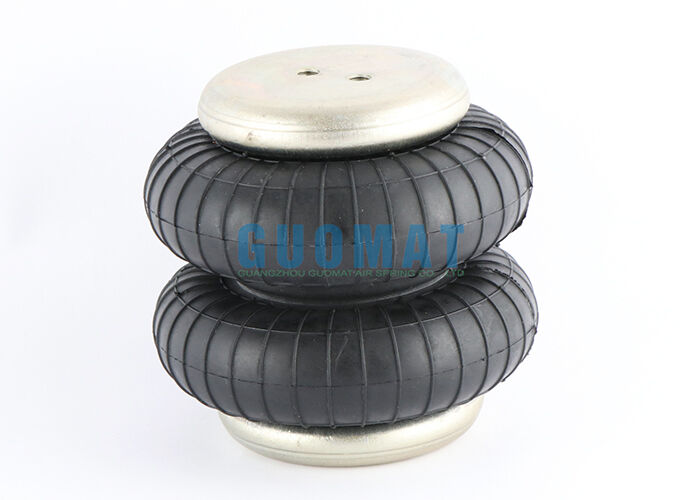

GUOMAT 2B4060 Double Convoluted Air Bellow
The GUOMAT 2B4060 Double Convoluted Type Air Bellow is an industrial rubber air spring designed for applications requiring reliable pneumatic lifting, pressing, vibration isolation, and controlled linear movement. This model serves as an equivalent replacement for the FESTO EB-145-100 air spring and is suitable for various tooling and industrial equipment.
Featuring double convoluted bellows construction, the 2B4060 provides flexible vertical movement and effective vibration absorption while maintaining a compact installation profile. The reinforced rubber bellows design enables operation as a pneumatic actuator without requiring conventional piston and cylinder arrangements.
Product Specifications
GUOMAT Model: 2B4060
Type: Double Convoluted Air Bellow
Construction: Reinforced rubber bellows
Application: Tooling equipment and industrial machinery
Function: Lifting, lowering, pressing, positioning, and vibration isolation
Working Medium: Compressed air
Compatible Part Numbers
| Manufacturer |
Part Number |
| FESTO |
EB-145-100 |
| FESTO |
EB 145 100 |
| CONTITECH |
FD 40-10 |
| CONTITECH |
FD40-10 |
| CONTITECH |
FD 40-10 DI |
| CONTITECH |
FD 40-10 DI G1/8 |
Technical Data
| Specification |
Value |
| Center-to-center distance |
20mm |
| Air Hole |
G1/8 |
| Threaded Hole |
M8 |
| Max. outer diameter |
145mm |
| Cover plate diameter |
90mm |
| Max. height |
170mm |
| Min. height |
70mm |
Product Advantages
Compared to conventional mechanical springs or hydraulic cylinders, the GUOMAT 2B4060 industrial air bellow provides flexible force characteristics and effective vibration absorption. Manufactured for demanding industrial applications, this air spring delivers stable pneumatic performance, compact construction, and extended service life.
GUOMAT supports comprehensive air spring solutions for tooling equipment, industrial automation, vibration isolation systems, lifting applications, and pneumatic machinery. OEM and customized air spring requirements are also available to meet specific application needs.
Technical Support
GUOMAT provides comprehensive technical assistance for product selection, dimensional verification, installation guidance, replacement identification, and application matching.
When replacing a FESTO EB-145-100 or selecting a double convoluted industrial air spring for tooling equipment, please provide the original part number, dimensions, mounting specifications, or product photographs. Our technical team can help identify the most suitable GUOMAT replacement solution.
