EB-325-215 FESTO Air Bellows Replacement FD330-22 Contitech Air Spring For Tooling Equipment

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6330D

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$79.9-99.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Fitment Type:	Direct Replacement	Use Range:	Industrial Machine
Firestone Bellows Number:	22	Style:	Two Ply Bellows
Part:	Air Spring	Sample And Oem:	Available
Warranty:	1 Year	Material:	Rubber And Steel
Highlight:	FESTO air bellows replacement , Contitech air spring for tooling , industrial air spring with warranty

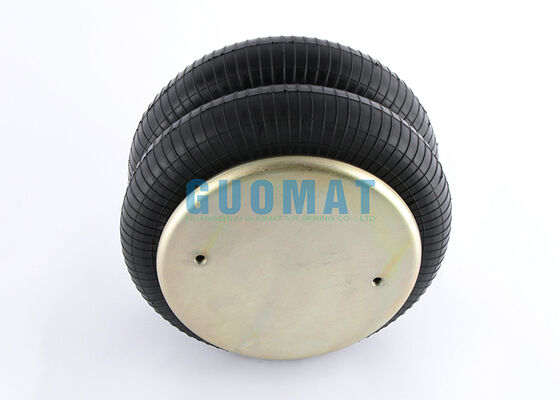

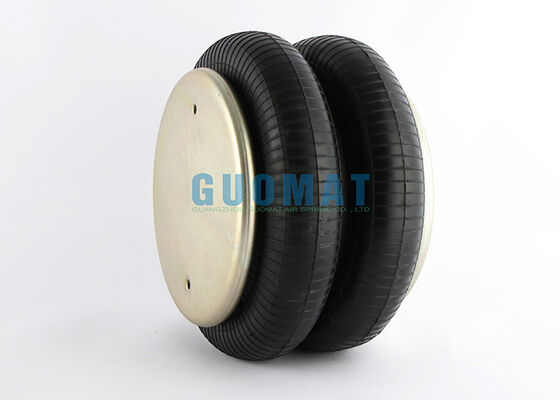

EB-325-215 FESTO Air Bellows Replacement FD330-22 Contitech Air Spring For Tooling Equipment

This industrial air bellow provides reliable vibration isolation, shock absorption, and load support for tooling equipment and industrial machinery applications.

Product Specifications

Item	Specification
Brand	GUOMAT
GUOMAT No.	2B633D
Type	Double Convoluted Air Spring
Product Type	Industrial Air Bellow
Material	Rubber + Steel
Application	Tooling Equipment / Industrial Machinery
Function	Vibration Isolation / Shock Absorption / Load Support
Warranty	12 Months

Replacement Part Numbers

FESTO EB-325-215
CONTITECH FD330-22
FIRESTONE W01-358-7180
FIRESTONE 22
GOODYEAR 2B12-425
GOODYEAR 2B12-311
TRIANGLE 6316/4363
AIRKRAFT 115061/3B-356
Vibracoustic: VSP2B22R7180
EI Ride: 8030190
Leland: Sc2075
Navistar: 1685179C1
Hendrickson: 1VA1816
Ridewell: 1003587180C
SAF Holland: 57007180
Watson&Chalinl: AS01541G/01881F
Peerlee: 0550 00001

Technical Data

Center distance	157.5cm
Maximum outer diameter	325mm
Cover plate diameter	228mm
Threaded hole	M8
Air hole	G1/4
Center distance between threaded hole and air vent	73mm
Maximum height	305mm
Minimum height	75mm

Why Choose GUOMAT 2B633D?

The 2B633D air bellows is designed to provide a practical replacement option for industrial users who need to replace worn or damaged air springs.

Reliable Rubber Construction

The reinforced rubber bellows is designed to withstand repeated compression and expansion during normal operation. The flexible rubber body allows the air spring to absorb vibration and movement while supporting the equipment load.

Vibration Isolation

Air springs can help isolate equipment from unwanted vibration generated during operation. This is particularly useful for tooling equipment and industrial machinery requiring stable movement and reduced mechanical vibration.

Easy Replacement

For applications using FESTO EB-325-215 or Contitech FD330-22 as the reference model, GUOMAT 2B633D provides a convenient replacement option. Please compare dimensions, mounting configuration, working height, and air connection before installation.

Wide Industrial Applications

GUOMAT manufactures air springs for industrial machinery, vehicle suspension, bus suspension, truck cab suspension, and vibration isolation applications. We can also provide customized air spring solutions according to drawings, dimensions, or samples.
