FS1710-12 Contitech Single Convoluted Air Spring 19-inch Center Distance Air Lift Bag

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1H7727

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Full Stroke:	5 Inch
Contitech:	FS1710-12	Product Type:	Air Spring/Air Bags/Air Balloon/Air Lift
Firestone:	W01-358-7727	Trademark:	GUOMAT
Center Distance:	19 Inch	Convolutions:	1
Highlight:	Contitech single convoluted air spring , 19-inch center distance air lift bag , Industrial air spring with warranty

FS1710-12 Contitech Single Convoluted Air Spring 19-inch Center Distance Air Lift Bag

The GUOMAT 1H7727 is a high-quality replacement for the Contitech FS1710-12 Single Convoluted Air Spring. Designed as an industrial air spring and air lift bag, this model provides reliable pneumatic suspension, vibration isolation, and shock absorption for various industrial applications.

With a 19-inch center distance, the FS1710-12 air spring is suitable for equipment where controlled vertical movement, vibration reduction, and load support are required. Its single convoluted rubber bellows construction allows smooth compression and extension while maintaining stable performance under repeated operating cycles.

Product Identification

GUOMAT No.: 1H7727

Replacement Models: Contitech FS1710-12, Contitech FS 1710-12, Contitech FS1710-12RS, Contitech FS 1710-12 RS

Interchange Numbers

Ribbed neck aluminum bead rings (equal spacing), 1 7/8 bolts, nuts, washers:

Firestone W013587727
Firestone W01-358-7727
Firestone W01 358 7727

Rolled Plate Assembly, 1/2 blind nuts, 3/4NPT:

Firestone W013587726
Firestone W01-358-7726
Firestone W01 358 7726

Rubber bellows only:

Firestone W013581026
Firestone W01-358-1026
Firestone W01 358 1026

Technical Specifications

Specification	Measurement
Flange diameter	20.35 inches / 516.89 mm
Maximum outer diameter	22.83 inches / 579.882 mm
Bolts	18pcs x 3/8-24 UNF
Center distance between bolts	19.0 inches / 482.6 mm
Maximum height	7.0 inches / 177.8 mm
Minimum height	2.0 inches / 50.8 mm

Packaging & Delivery

Each air spring is individually protected and packed to prevent damage during transportation
1 piece/poly bag
1 piece/carton
Product number and quantity marked on the carton
OEM packaging and customer logo marking available upon request
International shipping available

Warranty & Support

GUOMAT provides a 12-month warranty for the 1H7727 air spring against manufacturing defects under normal operating conditions.

If you are replacing a Contitech FS1710-12 or need an air spring with a 19-inch center distance, please provide the original part number, dimensions, photos, or mounting information. Our team can help confirm the correct replacement model before ordering.

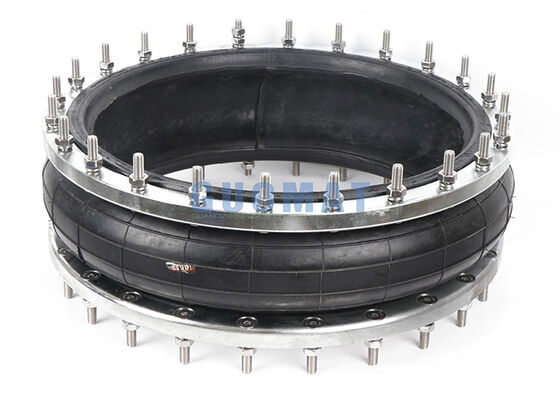

Product Images
