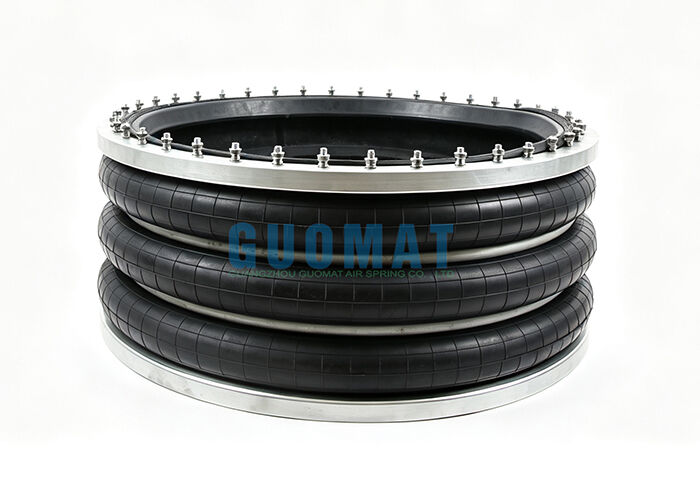

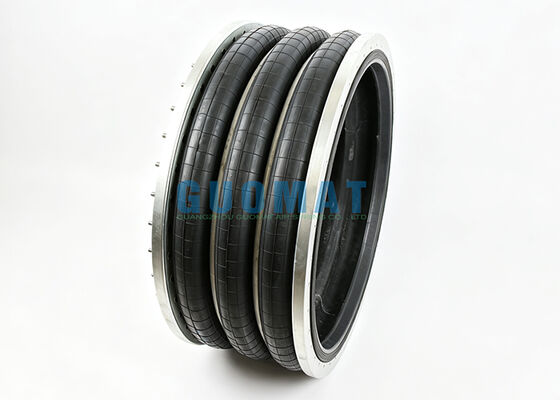

FT1330-35 RS 3/8 UNF Contitech Industrial Pneumatic Spring 4.5-18.3inch Stroke Air Cushion

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	LHF400316-3

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Pressure:	0 ... 8 Bar
Bellows Style:	Industrial Air Spring	Color:	Black
Function:	Reduce Shock	Number Of Convoluted:	3
Working Temperature:	-40℃+70℃	Contitech:	FT1330-35 RS
Highlight:	Industrial pneumatic air spring , 3/8 UNF air cushion , Contitech stroke air spring

FT1330-35 RS 3/8 UNF Contitech Industrial Pneumatic Spring

The GUOMAT LHF400316-3 Industrial Pneumatic Spring is a high-performance rubber air spring engineered for industrial suspension systems, vibration isolation, shock absorption, and precision pneumatic positioning applications.

This Contitech FT1330-35 RS equivalent air spring features a 3/8 UNF air connection and offers a working stroke range of approximately 4.5 to 18.3 inches, providing flexible vertical movement and reliable load support for industrial equipment.

Constructed with reinforced rubber and durable metal components, this industrial air cushion delivers exceptional flexibility, superior vibration isolation, and reliable performance under repeated compression and expansion cycles. Ideal as a replacement air spring in industrial machinery and pneumatic suspension systems.

GUOMAT Part Number

LHF400316-3

Compatible Part Numbers

CONTITECH FT1330-35
CONTITECH FT 1330-35
CONTITECH FT1330-35 RS
CONTITECH FT 1330-35 RS
CONTITECH FT1330-35 RS 3/8UNF
CONTITECH FT 1330-35 RS 3/8UNF

Technical Specifications

Specification	Measurement
Flange diameter	17.75 inches / 450.85 mm
Maximum outer diameter	20.5 inches / 520.7 mm
Bolts	24pcs x 3/8-24 UNF
Center distance between bolts	16.5 inches / 419.1 mm
Maximum height	18.3 inches / 464.82 mm
Minimum height	4.5 inches / 114.3 mm

Minimum Pressure: 0 psi

Return Force to Minimum Height: ≤70 lbs

Overall Weight with Bead Rings, Bolts, Nuts and Washers: 27.6 lbs

Force and Pressure Characteristics

Pressure (psi)	20	40	60	80	100	120	Volume (in³)
Height 15 in	3620	7240	10860	4480	18100	21720	3321
Height 13 in	4240	8480	12730	6970	21210	25450	2991
Height 11 in	4680	9360	14040	8720	23400	28080	2618
Height 9 in	5050	10100	15150	20200	25250	30310	2145
Height 7 in	5350	10710	16060	21410	26770	32120	1594
Height 5 in	5660	11330	16990	22660	28320	33980	950

Order the FT1330-35 RS Replacement Air Spring

Looking for a Contitech FT1330-35 RS replacement air spring? The GUOMAT LHF400316-3 Industrial Pneumatic Spring provides a reliable solution with 3/8 UNF connection and approximately 4.5-18.3 inch stroke range. Suitable for industrial suspension, vibration isolation, shock absorption, and pneumatic equipment applications.

Contact GUOMAT for pricing, availability, technical specifications, bulk orders, and replacement air spring solutions.
