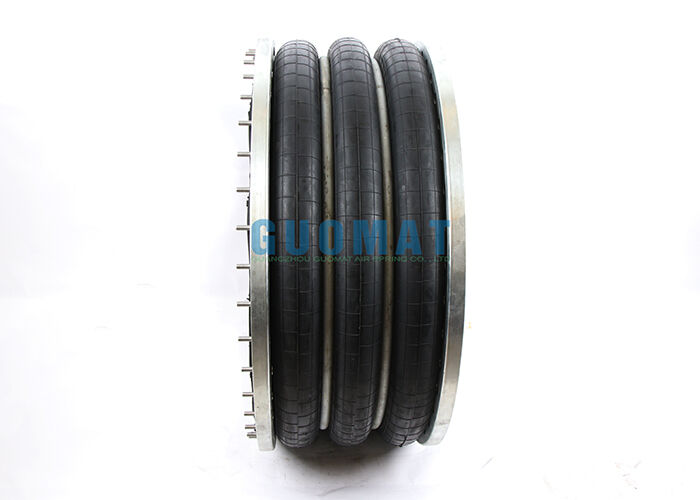

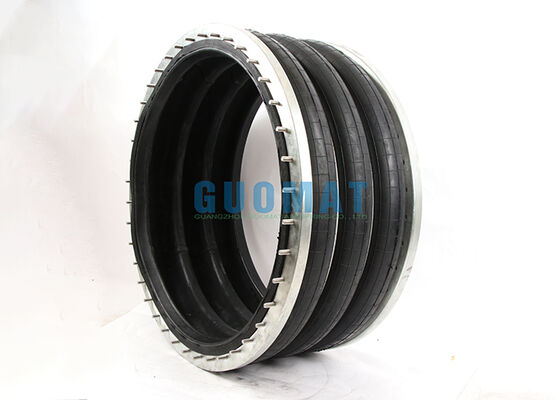

Contitech Triple Convoluted Rubber Air Spring FT 2870-45 RS Air Bag Replacement

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3H6984

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

OEM:	Contitech FD 2870-45 RS	Blind Nuts:	3/8-24UNC
Product Feature:	In-situ Installation	Cross References:	W01-M58-6984
Product:	Industrial Air Spring	Structure:	Triple Convoluted
Model Name:	Rubber Air Spring	Main Material:	Natural Rubber
Highlight:	Contitech rubber air spring replacement , Triple convoluted air bag FT 2870-45 RS , Industrial air spring with warranty

Contitech Triple Convoluted Rubber Air Spring FT 2870-45 RS Air Bag Replacement

The GUOMAT 3H6984 is a high-quality triple convoluted rubber air spring designed as a direct replacement for Contitech FT 2870-45 RS. This industrial air spring features durable rubber bellows construction with reinforced components, delivering reliable flexibility, vibration isolation, shock absorption, and load support capabilities.

The innovative three-convolution design enables the air spring to accommodate greater vertical movement while maintaining stable performance under varying load conditions. It is ideally suited for industrial equipment and pneumatic suspension applications where controlled movement and effective vibration isolation are essential requirements.

As a premium alternative replacement air bag, GUOMAT 3H6984 is manufactured with a focus on consistent quality, reliable sealing performance, and extended service life.

Cross-Reference Part Numbers

Manufacturer	Part Numbers
CONTITECH	FT2870-45, FT 2870-45, FT2870-45 RS, FT 2870-45 RS
FIRESTONE	W01-M58-6984, W01 M58 6984, W01M586984

Technical Specifications

Flange diameter	25.1 inches
Maximum outer diameter	28.3 inches
Bolts	32 x 3/8-24 UNF
Bolt center-to-center distance	23.5 inches
Maximum height	22.0 inches
Minimum height	4.5 inches

Key Benefits

Reliable Rubber Construction: Reinforced rubber materials provide flexibility while withstanding repeated compression and expansion cycles
Effective Vibration Isolation: Absorbs vibration and reduces transmission of mechanical shock to surrounding equipment
Triple Convolution Design: Three-lobe structure provides enhanced flexibility and optimal operating stroke for industrial suspension applications
Premium Replacement Solution: GUOMAT 3H6984 offers a practical, high-quality replacement option for Contitech FT 2870-45 RS applications

Packaging & Delivery

Standard Packaging: 1 piece in poly bag, 1 piece in carton with product number and quantity clearly marked

Custom Options: Customized packaging and customer logo marking available upon request

Shipping: International shipping supported by air, sea, express, and other suitable transportation methods according to order requirements

Warranty & Support

Warranty: GUOMAT provides a comprehensive 12-month warranty for applicable air spring products

Quality Assurance: Products can be inspected according to agreed quality requirements before shipment

Technical Support: Assistance available for replacement identification - please provide original part number, photos, dimensions, or application information
