FD 2870-30 RS Contitech High Load Capacity Air Spring 3.3-14inch Center Distance Vibration Isolator

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2H7230

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

OEM:	Contitech FD 2870-45 RS	Thread Size:	3/8-24 UNF
Connection Type:	Flange	Rubber Type:	Natural Rubber
Color:	Black	Type Of Goods:	Air Spring/Air Bags/Air Ballons
Hs Code:	8708809000	Firestone:	W01-358-7230
Highlight:	Contitech high load air spring , Industrial air spring vibration isolator , 3.3-14inch center distance air spring

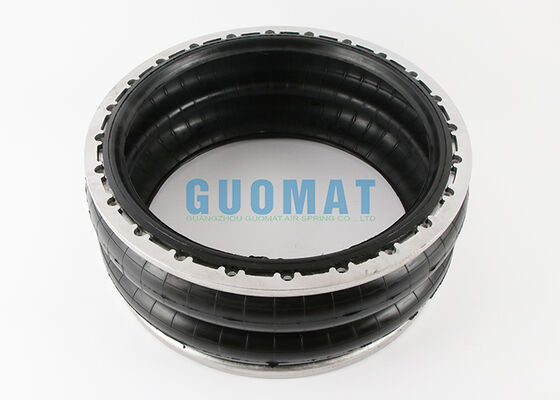

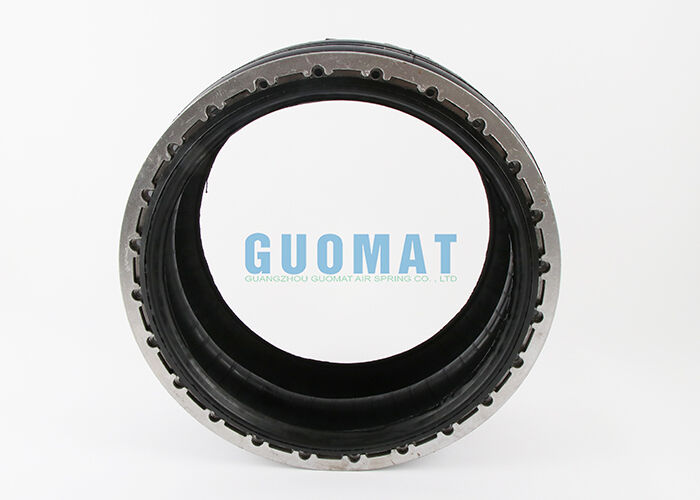

FD 2870-30 RS Contitech High Load Capacity Air Spring

The GUOMAT 2H7230 is a high-load-capacity industrial air spring designed as a replacement for the Contitech FD 2870-30 RS air spring. Featuring durable rubber bellows construction and reinforced metal components, this air spring provides reliable load support, vibration isolation, and shock absorption for industrial machinery and equipment.

With a compact working structure and 3.3-14 inch working height range, the FD 2870-30 RS type air spring accommodates changing load and height requirements while maintaining stable performance. Its flexible rubber air chamber helps isolate mechanical vibration and reduce the transmission of shocks and unwanted movement to surrounding equipment.

GUOMAT industrial air springs are widely used in vibration isolation systems, industrial machinery, stamping equipment, presses, mechanical equipment, lifting systems, and other applications requiring pneumatic isolation and load support.

Compatible OEM Part Numbers

Contitech: FD2870-30, FD 2870-30, FD2870-30 RS, FD 2870-30 RS

Firestone: W01-358-7230, W01 358 7230, W013587230

Firestone Style 215 Configurations:
Ribbed neck aluminum bead rings (equal spacing), 1 7/8" bolts, nuts, washers:
W01-358-7230; W01 358 7230; W013587230
WO1-358-7230; WO1 358 7230; WO13587230

Ribbed neck aluminum bead rings (unequal spacing), 1 7/8" bolts, nuts, washers:
W01-358-7301; W01 358 7301; W013587301
WO1-358-7301; WO1 358 7301; WO13587301

Ribbed neck aluminum bead rings (equal spacing), 1 1/4" bolts, nuts, washers:
W01-358-7302; W01 358 7302; W013587302
WO1-358-7302; WO1 358 7302; WO13587302

Rubber bellows only:
W01-358-7912; W01 358 7912; W013587912
WO1-358-7912; WO1 358 7912; WO13587912

Technical Specifications

Flange Diameter	25.1 inches
Maximum Outer Diameter	27.9 inches
Bolts	32 x 3/8-24 UNF
Bolt Center-to-Center Distance	23.5 inches
Maximum Height	14.0 inches
Minimum Height	3.3 inches

Key Features

High Load Capacity: Reinforced rubber bellows structure provides dependable load-bearing performance for demanding industrial applications. The air spring distributes supported load through compressed air, ensuring stable pneumatic support.
Excellent Vibration Isolation: Flexible rubber air chamber absorbs vibration and mechanical movement, making it ideal for industrial vibration isolation applications where reducing transmitted vibration is critical.
Wide Working Height Range: 3.3-14 inch working height range provides flexibility for equipment positioning and height adjustment according to application requirements.
Durable Construction: Reinforced rubber body combined with metal components provides excellent resistance to repeated compression, expansion, and mechanical movement during normal operation.
