FT 5450-44 RS Contitech Industrial Air Spring Supplier 40pcsx3/8-24UNF Air Spring Distributor

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3H9603

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

OEM:	Contitech FD 2870-45 RS	Package Type:	Normal Exported Package
Product Warranty:	12 Months	Condition:	Brand-New
Packing:	Carton	Structure:	Triple Convoluted Type
Firestone:	W01-358-9603	Color:	Black
Highlight:	Contitech industrial air spring , 3/8-24UNF air spring , industrial air spring distributor

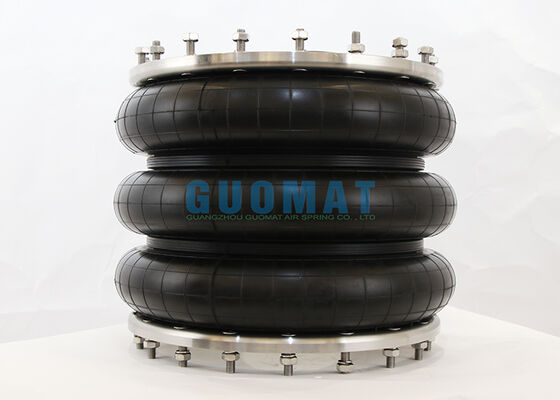

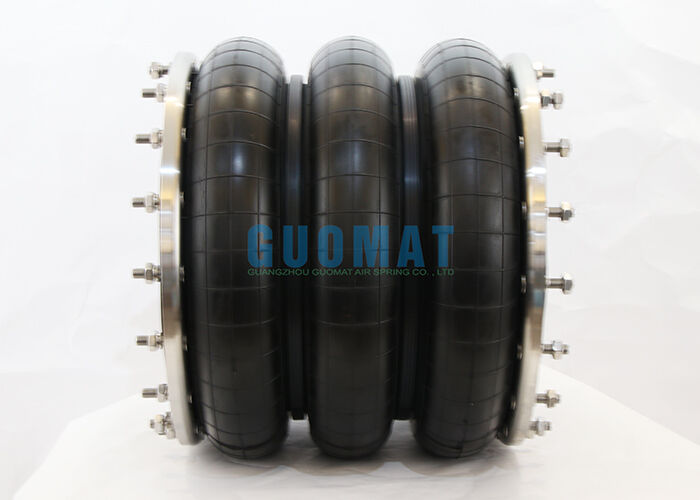

FT 5450-44 RS Contitech Industrial Air Spring

The GUOMAT 3H9603 FT 5450-44 RS is a heavy-duty industrial air spring engineered for vibration isolation, shock absorption, height adjustment, and pneumatic suspension applications. This Contitech equivalent features durable multi-convoluted rubber air bellows construction suitable for demanding industrial equipment and machinery.

With 40 pieces of 3/8-24 UNF threaded connections, this air spring provides reliable mounting and stable pneumatic performance. GUOMAT supplies this model to equipment manufacturers, maintenance companies, distributors, and industrial air spring wholesalers worldwide.

Product Specifications

Brand: GUOMAT

Model No.: 3H9603

Type: Flange Air Spring

Material: Rubber and Steel

Warranty: 12 Months

Alternative Part Numbers

Contitech Equivalent

FT5450-44, FT 5450-44, FT5450-44RS, FT 5450-44 RS

Firestone Equivalent

W01-358-9603, W01 358 9603, W013589603

Firestone Style 348-3

Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers

W01-358-9603 / WO1-358-9603

W01 358 9603 / WO1 358 9603

W013589603 / WO13589603

Rubber Bellows Only

W01-358-1023 / WO1-358-1023

W01 358 1023 / WO1 358 1023

W013581023 / WO13581023

Technical Specifications

Flange diameter	35.04 inches
Maximum outer diameter	37.4 inches
Bolts	40 pcs x 3/8-24 UNF
Bolt center-to-center distance	32.68 inches
Maximum height	23.0 inches
Minimum height	5.5 inches
Minimum pressure	0 psi
Return force to minimum height	≤380 lbs
Overall weight with bead rings, bolts, nuts and washers	97 lbs

Pressure and Height Performance Data

Pressure p (psi)	20	40	60	80	100	120	Vol. (in³)
Height H (in) 18	15080	30170	45250	60340	75420	90500	15381
Height H (in) 16	16190	32380	48560	64750	80940	97130	13705
Height H (in) 14	17090	34190	51280	68380	85470	102560	12000
Height H (in) 12	17880	35770	53650	71530	89410	107300	10289
Height H (in) 10	18590	37170	55760	74340	92930	111520	8564
Height H (in) 8	19290	38590	57880	77180	96470	115760	6810
Height H (in) 6	19850	39700	59550	79390	99240	119090	4893

Industrial Air Spring Applications

This air spring serves multiple functions including industrial air spring, rubber air bag, air bellow, pneumatic spring, vibration isolator, and air suspension isolator applications.

About GUOMAT Industrial Air Spring Supply

GUOMAT is an experienced industrial air spring supplier and manufacturer, offering a comprehensive range of air springs, rubber air bags, air bellows, pneumatic springs, and air suspension components.

Whether you require single replacement air springs or regular wholesale quantities, GUOMAT provides product identification, technical support, customized packaging, and B2B supply services.

Contact GUOMAT for FT 5450-44 RS / 3H9603 industrial air spring inquiries, replacement confirmation, bulk orders, and distributor cooperation opportunities.
