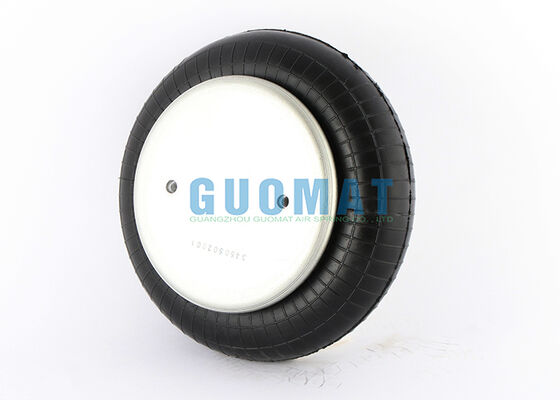

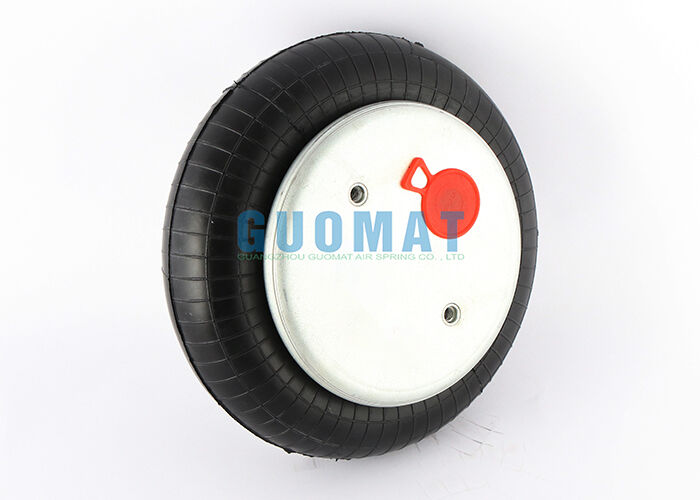

PM/31091 Norgren Industrial Air Spring FS 200-10 Contitech G3/4 Convoluted Rubber Air Shock

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B20010

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$89.9-99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Industrial Air Spring	Structure:	Single Convoluted
Selling Units:	Single Item	Suspension System:	Air Suspension Spring
Position:	For Vibration Isolation	Packing Size:	333325cm
Norgren:	PM/31091	Contitech:	FS200-10
Highlight:	Norgren industrial air spring , Contitech G3/4 air shock , convoluted rubber air spring

PM/31091 Norgren Industrial Air Spring FS 200-10 Contitech G3/4 Convoluted Rubber Air Shock

Product Overview

The GUOMAT 1B20010 Industrial Air Spring is a single convoluted rubber air spring designed as a replacement solution for applications using the Norgren PM/31091 and Contitech FS 200-10 air spring configuration.

This compact industrial air spring features a durable rubber bellows construction and G3/4 connection, providing reliable pneumatic support, vibration isolation, shock absorption, and height adjustment for industrial machinery.

The single-convoluted design allows the air spring to respond smoothly to changing loads while helping reduce mechanical vibration and impact. It is suitable for a wide range of industrial equipment where conventional mechanical springs or vibration isolators may not provide sufficient flexibility.

GUOMAT NO. 1B20010 can be used for replacement and maintenance applications where the corresponding dimensions, mounting configuration, working pressure, and load requirements are confirmed.

Cross-Reference OEM Numbers

ContiTech: FS 200-10 2681 045000

ContiTech: FS 200-10 3/4 M8

ContiTech: FS 200-10 G3/4 M8

ContiTech: FS 200-10 CI G3/4

ContiTech: FS 200-10 CI G3/4 M8

ContiTech: FS 200-10 CI/FS200-10CI/FS20010CI

ContiTech Bellow: FS 200-10/FS200-10/FS20010

Firestone No.: W01-M58-6374/W01 M58 6374/WO1M586374

Firestone Style: 115

Phoenix: SP 1 B 12-1/SP1B12-1/SP1B121

Dunlop FR: S09101

Bosch: 822419004

Festo: EB-250-85/EB 250 85/EB25085

Norgren: PM/31091/PM 31091/PM31091

Nominal Ø x convolutions: 9"1/4 x 1/9"1/4x1/9 1/4x1

Werorma: WBE 400-E1/WBE400-E1/WBE400E1

Airtech: 111004

Airtech Ref: 1B-220/1B 220/1B220

Technical Specifications

Nominal Ø x convolutions	Stroke (mm)	Installation height [A] min. (mm)	Recommended working height [B] max. (mm)	Installation height [C] max. (mm)	Max. torque for mounting studs (Nm)	Natural frequency [fn] at 4 bar (Hz)	Stiffness at 4 bar (N/mm)	Recommended vibration height (mm)	Ø E	Ø D	Ø F	H	Ø N	Weight (kg)	Model
9 1/4" x 1	105	55	150	160	12	2.25	200	110	155	225	89	38	275	2.3	PM/31091

Industrial Applications

The GUOMAT 1B20010 air spring can be used in various industrial applications requiring flexible pneumatic suspension or vibration control, including:

Industrial machinery Packaging equipment Assembly line equipment Automation equipment Machine tools Conveyor and material handling systems Pneumatic lifting equipment Vibration isolation systems Press and manufacturing machinery Industrial suspension systems

Using an air spring instead of a conventional mechanical spring can provide adjustable pneumatic support and effective vibration isolation, making it useful for sensitive industrial equipment.
