PM/31061 NORGREN Air Bag Replacement 6''X1 Air Spring For Injection Molding Machine

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B6X1P

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$89.9-129.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Industrial Air Spring	Contitech:	FS 76-7 DI
Flange Ring:	With	Temperaturerange:	-40°C To 70°C
Number Of Convolutions:	1	Bellows No.:	6''X1
Color:	Black	Type:	Rubber Air Bag
Highlight:	NORGREN air spring replacement , 6x1 air bag for injection molding , industrial air spring with warranty

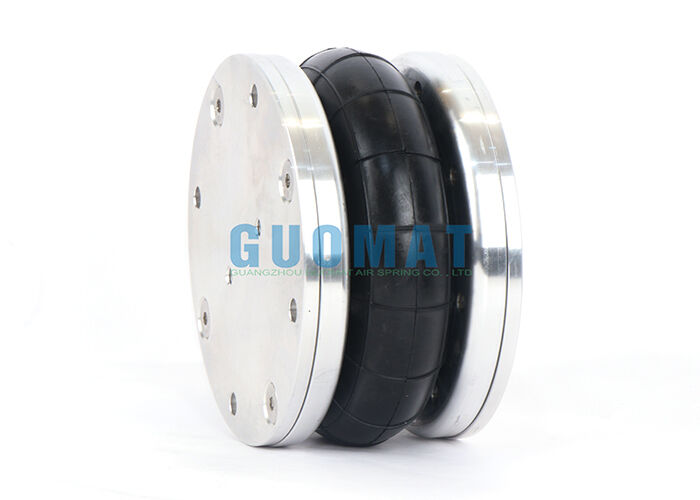

PM/31061 NORGREN Air Bag Replacement 6"×1 Air Spring

The GUOMAT 1B6X1P is a 6-inch single convoluted industrial air spring designed as a direct replacement for NORGREN PM/31061. This flexible pneumatic actuator uses compressed air to provide controlled lifting, positioning, vibration isolation, and shock absorption in industrial applications.

Product Specifications

GUOMAT NO.: 1B6X1P
Type: Single Convoluted Air Spring
Size: 6" × 1
Application: Injection Molding Machine / Industrial Equipment

Compatible Part Numbers

Continental ContiTech: FS 76-7 DI CR / FS76-7DICR / FS767DICR

Continental ContiTech: FS 76-07 DI G1/2 CR / FS76-07DI G1/2 CR

Continental ContiTech Bellow: FS 76-7/ FS76-7/ FS767

Firestone No.: W01-R58-4078/W01 R58 4078/W01R584078

Firestone Style: 6" x1/6"x1/6x1

Goodyear: 1B6-2052/1B6 2052/1B62052

Goodyear Flex No.: 578-91-3-2050/578 91 3 2050/5789132050

Dunlop FR: SP1645 (COMPOSITE)

Dunlop FR: SP2913 (ALUMINIUM)

Dunlop UK (Pneuride): A 31330 01 01/A313300101

Norgren: PM/31061/PM 31061/PM31061

Nominal Ø x convolutions: 6" x1/6"x1/6x1

YS-AIR: YS-160-1VS/YS 160 1VS/YS 160 1VS

Key Features & Benefits

Direct replacement solution for NORGREN PM/31061
6-inch single convoluted rubber air bag construction
Ideal for injection molding and industrial machinery applications
Superior vibration isolation and shock absorption performance
Durable rubber construction for repeated working cycles
OEM and customized marking options available
Comprehensive model and application matching support

Technical Specifications

Nominal Ø x convolutions	Operating angle [α] max. (°)	Out of alignment [Z] max. (mm)	Installation height [A] min. (mm)	Installation height [C] max. (mm)	Model
2 3/4" x 1	-	-	50	70	PM/31021
2 3/4" x 2	10	10	65	110	PM/31022
2 3/4" x 3	10	10	80	140	PM/31023
4 1/2" x 1	5	5	50	90	PM/31041
4 1/2" x 2	10	10	65	150	PM/31042
4 1/2" x 3	10	10	100	200	PM/31043
6" x 1	10	10	55	110	PM/31061
6" x 2	10	10	80	190	PM/31062
6" x 3	10	10	100	285	PM/31063
8" x 1	10	10	55	150	PM/31081
8" x 2	10	10	80	265	PM/31082
9 1/4" x 1	10	10	55	160	PM/31091
9 1/4" x 2	10	10	80	310	PM/31092
12" x 1	10...20	10	51	180	PM/31121
12" x 2	15...25	20	75	305	PM/31122
12" x 3	15...30	30	110	430	PM/31123
