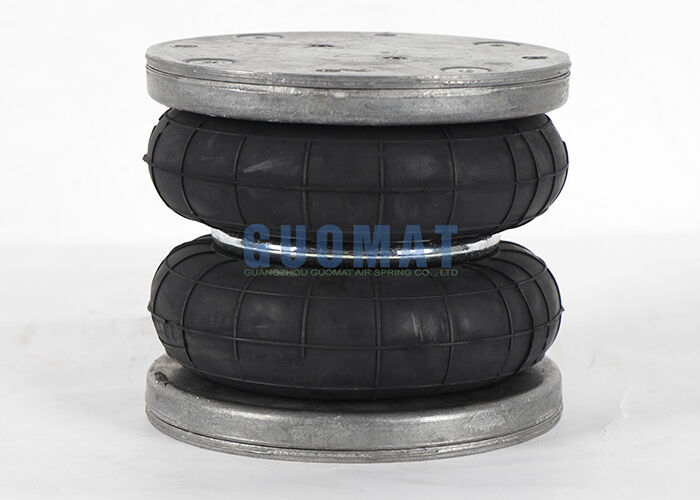

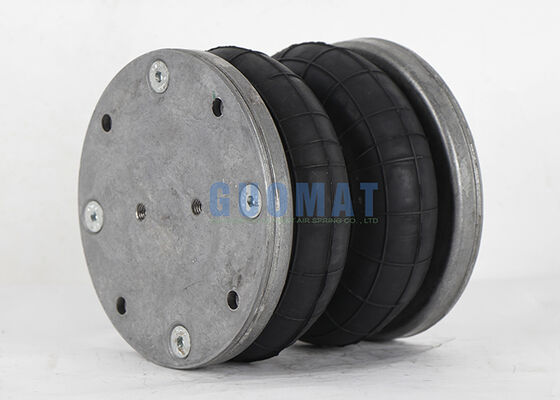

PM/31062 Double Convoluted Type Air Bellows 6''X2 Norgren Air Spring for Packing Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6X2P

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$89.9-129.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Industrial Air Spring	Norgren No:	PM/31062
Trademark:	GUOMAT	Air Hole:	G1/2
Hs Code:	8708809000	Warranty:	1 Year
Material:	Rubber And Steel	Color:	Black
Highlight:	Norgren double convoluted air spring , 6x2 industrial air bellow , packing equipment air spring

PM/31062 Double Convoluted Air Bellows

6"×2 Norgren Air Spring for Packing Equipment

Product Specifications

GUOMAT No.	2B6X2P
Type	Double Convoluted Air Spring
Size	6" × 2
Air Fitting	G1/2
Material	Rubber + Steel Components
Application	Industrial Machinery & Equipment
Function	Vibration Isolation, Shock Absorption, Load Support

Replacement Part Numbers

Continental ContiTech: FD 76-14 1/2 M8
Continental ContiTech: FD 76-14 DI G1/2
Continental ContiTech: FD 76-14 DI G1/2 M8
Continental ContiTech: FD 76-14 DI G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech Bellow: FD 76-14/ FD76-14/FD7614
Firestone No.: W01-R58-4070/W01 R58 4070/W01R584070
Firestone Style: 6"x2
Dunlop FR:6"x2 SP1646 (COMPOSITE)
Dunlop FR:6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride): A 31330 02 01/A313300201
Norgren: PM/31062/PM 31062/PM31062
Nominal 0 (inch) x convolutions: 6" x 2/6"x2/ 6x2
Continental ContiTech: FD 76-14 DI CR /FD76-14DICR/FD7614DICR
Parker: 6"x2 9109001A
YS-AIR:YS-160-2VS/YS 160 2VS/YS1602VS

Technical Data

Cover plate diameter	152.5 mm
Bolts	4 x M8
Air hole	G1/2
Maximum outer diameter	178 mm
Maximum height	195 mm
Minimum height	80 mm

Product Series Comparison

Model	PM/31021	PM/31022	PM/31023	PM/31041	PM/31042	PM/31043	PM/31061	PM/31062
Cylinder Ø [inch]	2 3/4"	2 3/4"	2 3/4"	4 1/2"	4 1/2"	4 1/2"	6"	6"
Air Port	G 1/4	G 1/4	G 1/4	G 3/8	G 3/8	G 3/8	G1/2	G1/2
Nominal Ø x convolutions	2 3/4" x 1	2 3/4" x 2	2 3/4" x 3	4 1/2" x 1	4 1/2" x 2	4 1/2" x 3	6" x 1	6" x 2
Stroke [mm]	20	45	60	40	85	100	55	115
Installation height min [mm]	50	65	80	50	65	100	55	80
Recommended max working height [mm]	65	105	130	80	135	180	100	170
Installation height max [mm]	70	110	140	90	150	200	110	190
Retracting force to reach min height [N]	200	310	300	200	240	140	200	220

Packaging & Delivery

Each air spring is packed individually in a poly bag and then placed in a strong export carton. Customized packaging is available according to customer requirements.

For in-stock products, delivery can normally be arranged within 3-7 working days. We support air freight, sea freight, DHL, FedEx, UPS, and other international shipping methods.

After-Sales Support

GUOMAT provides technical support for model selection, replacement confirmation, installation, and application matching. A 12-month warranty is available for the product under normal operating conditions.
