6''X2 Norgren Rubber Air Bellows M/31062 Pneumatic Spring for Packaging Line

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6X2T

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$89.9-129.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Industrial Air Spring	Connection Method:	Flange Connection
Gas Hole:	G1/2	Stroke:	75-190mm
Position:	Universal	Package Size:	242424 CM
Buffer Block:	Without	Special Features:	Shock Absorption
Highlight:	Norgren rubber air bellows , pneumatic spring for packaging line , industrial air spring with warranty

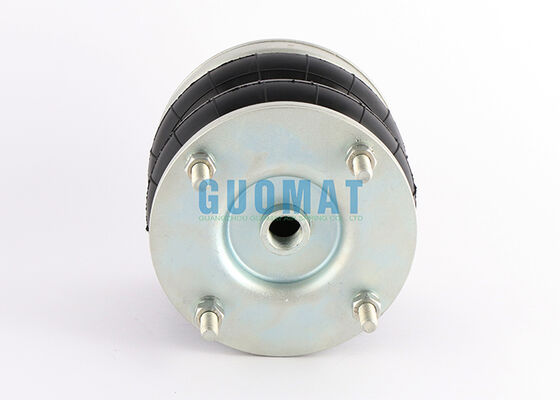

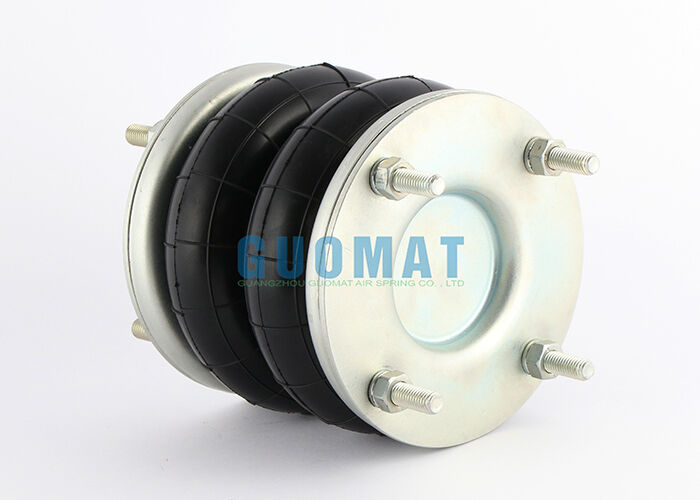

6"×2 Norgren Rubber Air Bellows M/31062 Pneumatic Spring

The GUOMAT 2B6X2T is a double-convoluted rubber air bellows designed as a replacement for Norgren M/31062. With a 6" diameter and two convolutions, this pneumatic spring provides reliable load support, vibration isolation, and shock absorption for industrial equipment.

It is especially suitable for packaging lines, automated machinery, pneumatic equipment, assembly systems, and vibration isolation applications.

Product Specifications

Item	Specification
GUOMAT No.	2B6X2T
Type	Double Convoluted Air Spring
Size	6" × 2
Air Fitting	G1/2
Material	Rubber + Steel Components
Application	Industrial Machinery & Equipment
Function	Vibration Isolation, Shock Absorption, Load Support

Corresponding OEM Numbers

Continental ContiTech: FD 76-14 DS CR 70215
Continental ContiTech: FD 76-14 1/2 M10
Continental ContiTech: FD 76-14 DS G1/2
Continental ContiTech: FD 76-14 DS G1/2 CR
Continental ContiTech: FD 76-14 DS CR G1/2
Continental ContiTech: FD 76-14 DS CR/FD76-14DSCR/FD7614DSCR
Continental ContiTech Bellow: FD 76-14/ FD76-14/FD7614
Firestone No.: W01-R58-4053/W01 R58 4053/W01R584053
Firestone Style: 6" x 2/6"x2/6x2
Dunlop FR:6"x2 SP1482
Dunlop UK (Pneuride): PNP 30550 01 12/PNP30550 0112
Norgren: M/31062/M 31062/M31062
Nominal 0 (inch) x convolutions: 6" x 2/6"x2/6x2
Parker:6"x2 9109001

Technical Data

Cover plate diameter	153.5 mm
Air port	G1/2
Threaded hole	M8
Number of threaded holes (per side)	4
Center-to-center distance between threaded holes	127 mm
Maximum outer diameter	175 mm
Minimum height	75 mm
Maximum height	190 mm

Packaging & Delivery

Each air spring is protected in a poly bag and packed in a strong export carton. Customized packaging is available according to customer requirements.

For stocked products, delivery is normally 3-7 working days. Shipping can be arranged by air, sea, DHL, FedEx, UPS, or other international logistics services.

After-Sales Support

GUOMAT provides technical support for model selection, dimensions, replacement confirmation, and application requirements. A 12-month warranty is available for qualified products.

GUOMAT 2B6X2T is a practical 6"×2 rubber air bellows replacement for Norgren M/31062, offering reliable pneumatic support and vibration isolation for packaging lines and industrial machinery.
