W01-M58-6155 Firestone Style 131 Industrial Air Spring 1/4BSP Single Convoluted Air Cushion

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B6155

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Hs Code:	8708809000
Number Of Convolutions:	1	Natural Height:	90mm
Firestone Bellows Number:	131	Oem:	Available
Main Material:	Rubber And Steel	Screw Tooth:	M8
Highlight:	Firestone Style 131 air spring , industrial single convoluted air cushion , 1/4BSP air spring with warranty

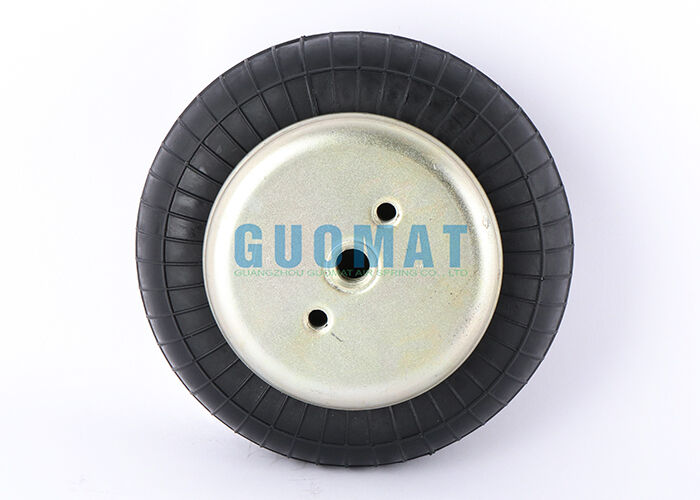

W01-M58-6155 Firestone Style 131 Industrial Air Spring

1/4BSP Single Convoluted Air Cushion for vibration isolation, load support, height adjustment, and shock absorption applications.

Product Overview

The GUOMAT 1B6155 is a direct replacement for the Firestone W01-M58-6155 Style 131 Industrial Air Spring. This single convoluted air spring features a 1/4 BSP air inlet and is engineered for reliable performance in demanding industrial environments.

Key Features

Single convoluted design for optimal flexibility
1/4 BSP air inlet connection
Durable rubber construction with reinforced steel components
Stable performance under repeated compression and expansion
Suitable for vibration isolation, load support, and shock absorption

Specifications

Brand	GUOMAT
Type	Single Convoluted Air Spring
Material	Rubber and Steel
Warranty	1 Year
Color	Black

Technical Data

Air Inlet	1/4BSP
Blind Nuts	M8X1.25
Center-to-Center Distance	44mm
Plate Diameter	114mm
Max. Outer Diameter	165mm
Natural Height	90mm
Max. Height	114mm
Min. Height	51mm

Cross-Reference Part Numbers

Complete Assembly (Blind nuts, 1/4BSP)

Firestone W01-M58-6155; W01 M58 6155; W01M586155; WO1-M58-6155; WO1 M58 6155; WO1M586155

Socket Head Aluminum Bead Rings

Firestone W01-358-0127; W01 358 0127; W013580127; WO1-358-0127; WO1 358 0127; WO13580127

Rubber Bellows Only

Firestone W01-358-0131; W01 358 0131; W013580131; WO1-358-0131; WO1 358 0131; WO13580131

Packaging & Shipping

All items are packaged in standard international shipping cartons. We ship worldwide from China using USPS, UPS, FedEx, DHL, air freight, sea freight, or truck freight. International buyers are responsible for customs duties, import taxes, VAT, and related fees.

After-Sales Support

GUOMAT provides 12-month warranty support and replacement assistance. OEM marking and customized packaging available. Please provide original part number, dimensions, or application information for model confirmation.
