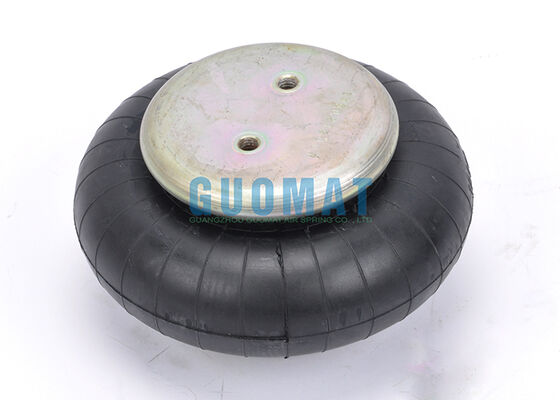

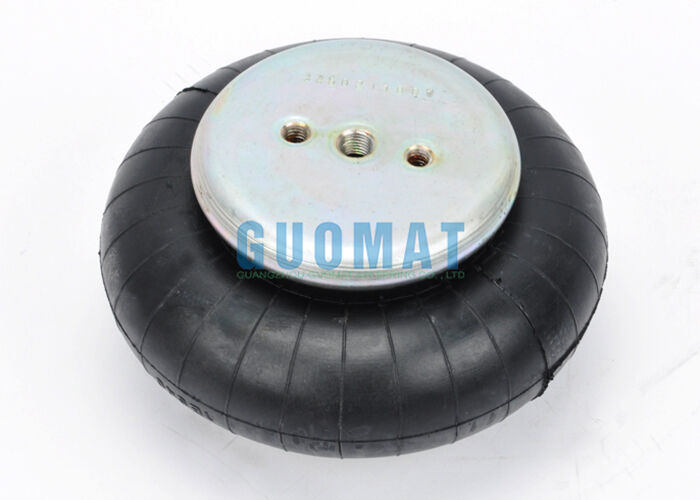

W01-M58-6145 Firestone Convolution Air Spring Style 110 Cover Plate Rubber Airbag

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B6145

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Cover Plate Diameter:	114 Mm
Application:	Industrial Machine	Packing Size:	242424(cm)
Trademark:	GUOMAT	Price Condition:	FOB China
Cover Plate:	Steel Plate	Firestone:	W01-M58-6145
Highlight:	Firestone convolution air spring , Rubber airbag with cover plate , Industrial air spring style 110

W01-M58-6145 Firestone Convolution Air Spring Style 110 Cover Plate Rubber Airbag

High-performance convolution air spring designed for demanding industrial applications, featuring durable rubber construction with steel reinforcement.

Product Specifications

Brand	GUOMAT
Model No.	1B6145
Convolution	1
Warranty	1 Year
Material	Rubber + Steel
MOQ	1 pc
Color	Black

OEM Cross-Reference Numbers

FIRESTONE STYLE 110

FIRESTONE W01-M58-6145

FIRESTONE W01 M58 6145

FIRESTONE W01M586145

Assembly Configuration

Description	Assembly Order No.
Style 110 \| Blind nuts, 1/4BSP	W01-M58-6145
Two Ply Bellows \| Socket head aluminum bead rings (bolts, nuts, washers not included - use M6 cap screws)	W01-358-0112
Rubber bellows only	W01-358-0100

Technical Specifications

1/4BSP AIR INLET

M8X1.25 15MM DEEP

44MM CENTER-TO-CENTER DISTANCE BETWEEN THREADED HOLES

114MM COVER PLATE DIAMETER

211MM MAX.O.D. AT 7BAR

152MM MAX.HEIGHT

53MM MIN.HEIGHT

115MM DESIGN HEIGHT

Industrial Application Excellence

GUOMAT 1B6145 – The Reliable Choice for Industrial Washing Machines

Industrial washing machines operate in extremely demanding environments with high-temperature steam, continuous vibration, frequent start-stop cycles, and prolonged uninterrupted operation. These conditions test the reliability of every core component.

Specifically engineered for industrial laundry applications, the GUOMAT 1B6145 delivers exceptional vibration resistance and a wide operating temperature range. It maintains stable performance across all operational stages including washing, rinsing, draining, and spinning cycles.

Built to withstand high-frequency usage, this air spring resists malfunctions and performance degradation, ensuring reliable operation in continuous-use settings such as hotels, hospitals, and commercial laundries.

Key Benefits:

• Lower failure rates and reduced maintenance downtime

• Extended equipment lifespan

• Consistent reliability under heavy-duty workloads

• Optimal performance in demanding industrial environments
