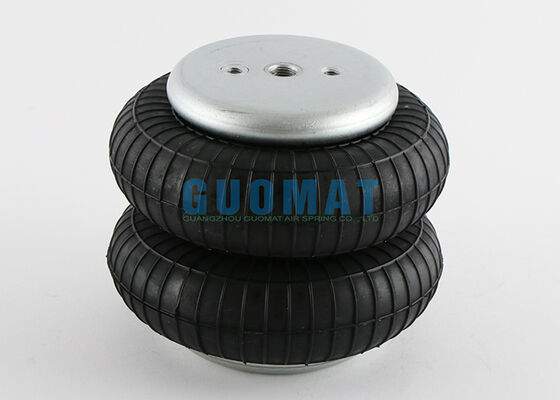

Style 255-1.5 Double Convoluted Air Bags W01-M58-6105 Firestone Air Spring For Tooling Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6105

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Stroke Length:	76 Mm To 203 Mm
Firestone Style:	Style 255-1.5	Fuction:	Shock Absorption
Gas Hole:	1/4 BSP	Spring Material:	Natural Rubber
Usage:	Industrial Machine	Plate Dia:	114 Mm
Highlight:	Firestone double convoluted air spring , Industrial air spring for tooling , Style 255-1.5 air bags

Style 255-1.5 Double Convoluted Air Bags W01-M58-6105 Firestone Air Spring

High-performance air spring designed specifically for demanding tooling equipment applications, offering exceptional vibration resistance and reliable operation.

Product Specifications

GUOMAT NO.	2B6105
Type	Air Spring
Warranty	12 Months
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber + Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality

Cross-Reference Part Numbers

FIRESTONE STYLE: 255-1.5

FIRESTONE Blind nuts, 1/4 BSP
W01-M58-6105 / W01 M58 6105 / W01M586105
WO1-M58-6105 / WO1 M58 6105 / WO1M586105

FIRESTONE Socket head aluminum bead rings
(bolts, nuts, washers not included, use cap screws)
W01-358-6833 / W01 358 6833 / W013586833
WO1-358-6833 / WO1 358 6833 / WO13586833

FIRESTONE Rubber bellows only
W01-358-0048 / W01 358 0048 / W013580048
WO1-358-0048 / WO1 358 0048 / WO13580048

Technical Data

Air port: 1/4 BSP

Threaded holes: M8 x 1.25

Center-to-center distance between threaded holes: 44 mm

Cover plate diameter: 114 mm

Maximum outer diameter: 163 mm

Maximum height: 203 mm

Minimum height: 76 mm

Design height: 165 mm

GUOMAT 2B6105 – Engineered for Tooling Equipment Reliability

Tooling equipment operates in exceptionally demanding environments that far exceed standard machinery requirements. With repeated clamping, continuous vibration, high-frequency operation, and extended uninterrupted use, every core component faces rigorous testing for reliability and durability.

Specifically engineered for tooling equipment applications, the GUOMAT 2B6105 delivers exceptional vibration resistance and stable performance characteristics. It maintains consistent reliability across diverse operational modes including positioning, clamping, inspection, and assembly/disassembly processes.

Built to withstand high-frequency operations, this air spring resists malfunctions and performance degradation, ensuring stable long-term operation in continuous workflows such as machining, assembly, and inspection applications.

Selecting the GUOMAT 2B6105 provides superior positioning accuracy, reduced failure rates, and minimized maintenance downtime. It ensures your tooling equipment maintains consistent reliability even under the most intensive workload conditions.
