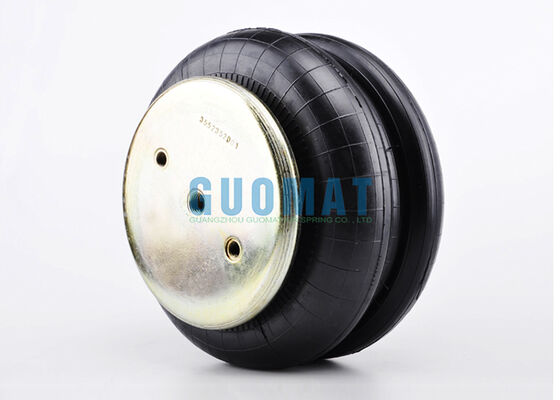

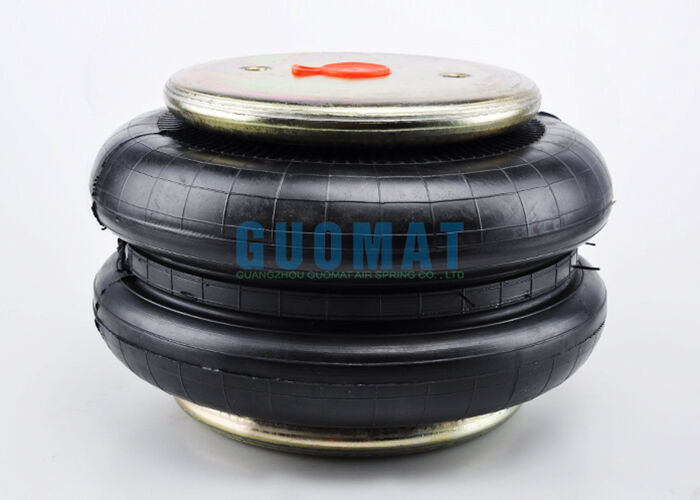

Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System

Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System

Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6400
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $59.9-69.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Tempera Turerange: -40°C To 70°C Sample: Available
Transport Package: Neutral Boxes Air Fitting: 1/4BSP
Fuction: Reduce Shock Item Name: Industrial Air Spring
Style: Style 224 Spring Material: Rubber And Steel
Highlight:

Firestone industrial air spring

,

Style 224 vibration dampening system

,

W01-M58-6400 air spring

Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
Direct replacement for Firestone W01-M58-6400 industrial air spring designed for vibration isolation and dampening applications.
Product Specifications
Item Specification
GUOMAT No. 2B6400
Equivalent Firestone W01-M58-6400
Firestone Style Style 224
Type Two-Ply Convoluted Air Spring
Application Industrial Vibration Dampening
Air Inlet 1/4 BSP
Mounting M8 Blind Nuts
Blind Nut Center Distance 70 mm
Max. Diameter Approx. 203 mm
Recommended Design Height Approx. 165 mm
Material Rubber Bellows + Steel Components
Compatible Part Numbers
  • FIRESTONE STYLE 224
  • FIRESTONE W01-M58-6400 (Blind Nuts, 1/4BSP)
  • FIRESTONE W01-358-5101 (Rubber Bellows Only)
  • FIRESTONE W01-358-3407 (Countersunk Steel Bead Ring)
Technical Data
  • 1/4BSP Air Inlet
  • M8X1.25 Blind Nuts 15mm Deep
  • 70mm Center-to-center Distance Between Threaded Holes
  • 135mm Cover Plate Diameter
  • 203mm Max.O.D At 7BAR
  • 229mm Max.Height
  • 71mm Min.Height
  • 165mm Design Height
Typical Applications
  • Industrial vibration isolation systems
  • Machine mounting and vibration dampening
  • Automation equipment
  • Press and forming machinery
  • Manufacturing equipment
  • Shock and impact absorption systems
  • Load support systems
  • Industrial machinery requiring pneumatic isolation
GUOMAT Advantages
  • Direct replacement for Firestone W01-M58-6400
  • Durable rubber bellows and steel components
  • Suitable for industrial vibration isolation applications
  • Stable load support and shock absorption performance
  • OEM and customized requirements supported
  • Quality-controlled manufacturing
  • 12-month warranty
Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
