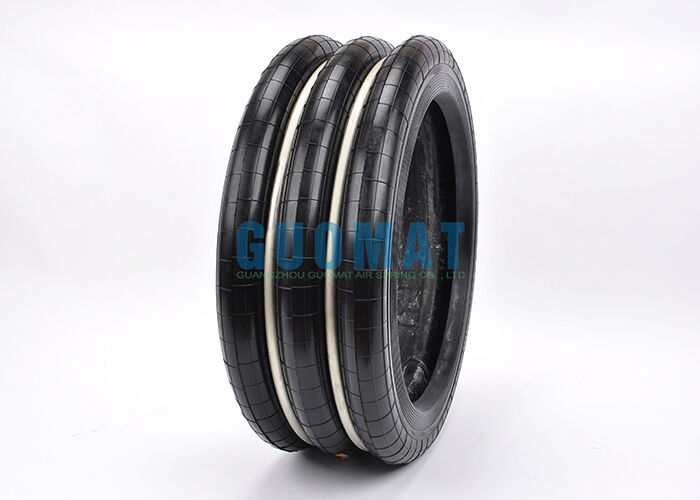

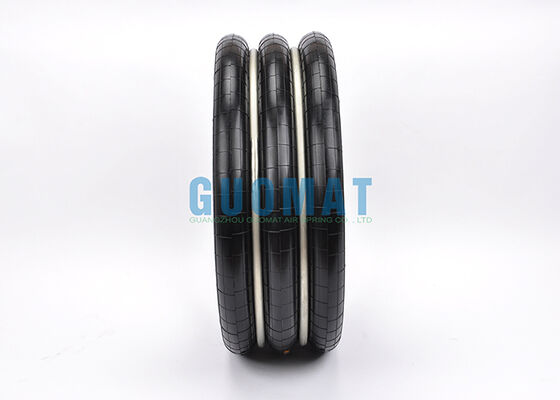

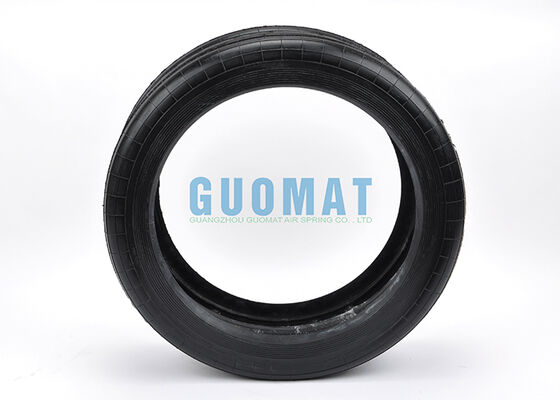

S-400-3 S-400-3R YOKOHAMA Punch Press Air Spring Rubber Air Bellows Replacement

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-400-3

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Structure:	Triple Convoluted Type	Replace Number:	YOKOHAMA S-400-3R
Operating Temperature:	-40℃+70℃	Item Name:	Punch Press Airbag
Type Of Goods:	Rubber Air Spring	Shock Absorber Type:	Gas-filled
Compatibility:	Easy To Replace	Condition:	100% New
Highlight:	YOKOHAMA S-400-3 air spring replacement , S-400-3R punch press rubber air bellows , rubber air spring for punch press

S-400-3 / S-400-3R YOKOHAMA Punch Press Air Spring Replacement — GUOMAT F-400-3

GUOMAT F-400-3 is a durable industrial rubber air spring engineered as a direct replacement option for YOKOHAMA S-400-3 and S-400-3R air springs. Built with a reinforced rubber bellows structure and metal end components, it delivers reliable vibration isolation, shock absorption, and stable load support for punch press machines and other industrial equipment.

Product Overview

Brand	GUOMAT
GUOMAT Model	F-400-3
Reference Models	YOKOHAMA S-400-3 / S-400-3R
Product Type	Industrial Rubber Air Spring
Application	Punch Press Machines and Industrial Equipment
Replacement Type	Industrial Air Spring Replacement

Technical Specifications

Model Size	F-400-3
Design Height (mm)	160
Max Height (mm)	260
Min Height (mm)	90
Common Maximum Travel (mm)	±68
Compression Max Outside Diameter (mm)	460
Effective Area (cm²)	1260
Volume (L)	19.5
Load (KN)	61.6
Dynamic Spring Constant (N/mm)	834
Natural Vibration Frequency (Hz)	1.8
Maximum Internal Pressure (MPa)	0.69
Internal Pressure Failure (MPa)	3.9–4.9

Why Choose GUOMAT Air Springs?

GUOMAT supplies industrial air springs, rubber air bellows, and pneumatic vibration isolators to customers across a wide range of markets. Our product range covers single-, double-, and triple-convoluted air springs for diverse industrial applications.

Broad compatibility with major OEM air spring references, including YOKOHAMA S-400-3 and S-400-3R.
Durable rubber bellows construction with metal components for long service life.
Selection support based on original model number, product photos, or dimensional drawings.
Assistance with export packaging and order requirements.

We understand that equipment compatibility is essential when replacing an existing air spring. Share your original model number, product photos, or dimensional drawings, and our team will help confirm the appropriate replacement and support your selection process.

Contact GUOMAT

Looking for a replacement for the YOKOHAMA S-400-3 or S-400-3R punch press air spring?

Contact GUOMAT with your required quantity, application details, and available product dimensions. We will help you verify whether the GUOMAT F-400-3 is suitable for your equipment and provide a quotation for your requirements.
