1B12-322 Goodyear Pneumatic Air Spring 578-91-3-301 Rubber Air Bellows For Industrial Machinery

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B1322

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$49.9-59.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Industrial Air Spring	Temperature Range:	-40℃~+70℃
Usage:	Industrial Machine	Factory Warranty:	12 Months Warranty
Air Spring:	Rubber Bellow Air Spring	Flange Ring:	Without
Goodyear:	1B12-322	Color:	Black
Highlight:	Goodyear pneumatic air spring , 578-91-3-301 rubber air bellows , industrial machinery air spring

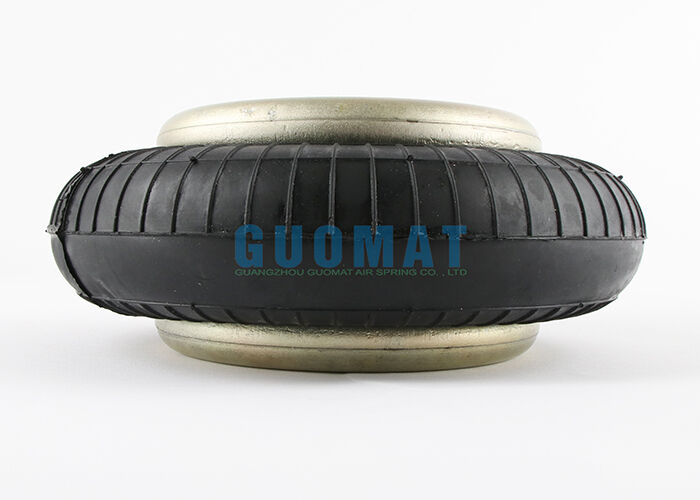

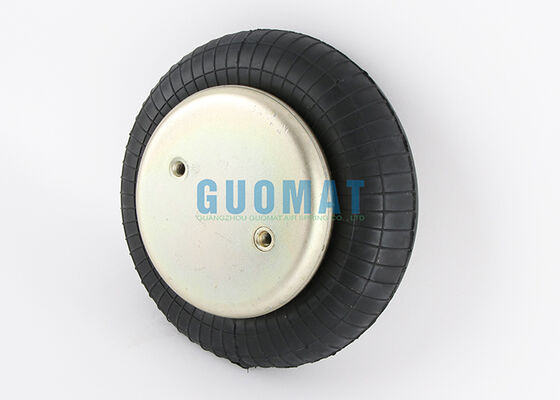

Product Overview: GUOMAT 1B12-322 Pneumatic Air Spring

The GUOMAT 1B1322 industrial air spring is constructed from durable rubber and metal components. It provides flexible cushioning and helps reduce the transmission of vibrations between mechanical equipment and its supporting structure. This product is suitable for industrial applications that require pneumatic suspension, vibration control, or controlled vertical movement.

Type	Single Convoluted Air Spring Bags
Brand	GUOMAT
Model No.	1B1322
Material	Rubber, Steel
Warranty	1 Year

Cross-Reference Part Numbers

The GUOMAT 1B1322 air spring is a direct replacement option for the following OEM and aftermarket part numbers. Dimensional verification is recommended prior to installation.

GOODYEAR 1B12-322
GOODYEAR 1B 12-322
GOODYEAR 1B12 322
GOODYEAR 578-91-3-301
GOODYEAR 578 91 3 301
GOODYEAR 578913301
AUTOMANN ABSP1B22A-6994
CONTITECH 64594
CONTITECH FS330-11467
CONTITECH FS 330-11467
CONTITECH FS 330-11 467

Technical Specifications

Top Plate Hole / Stud Qty	2
Top Plate Diameter	9''
Top Plate Center-to-Center Diameter	5.5''
Bottom Plate Hole / Stud Qty	2
Bottom Plate Diameter	9''
Bottom Plate Center-to-Center Diameter	6.2''
Bottom Plate Alignment	Parallel
Bumper	Yes
Minimum Height	2.6''
Maximum Height	7.2''

Advantages of GUOMAT Industrial Air Springs

Durable Rubber Construction: Designed for industrial environments requiring flexibility and cushioning.
Vibration Reduction: Helps minimize unwanted vibration transmitted through machinery supports.
Flexible Load Support: Provides pneumatic support when operated within the specified pressure and load limits.
Replacement Solutions: Suitable for customers sourcing replacement air bellows for existing industrial equipment, subject to dimensional verification.
Multiple Applications: Available for different industrial vibration isolation and pneumatic support requirements.
OEM and Customization Support: Contact GUOMAT to discuss product specifications and customization requirements.
