2B9-200 Goodyear Air Spring Replacement 578-92-3-202 Vibration Isolator Air Spring With Cover Plate

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6910

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Industrial Air Spring	Cover Plate:	Steel Plate
Goodyear:	2B9-200	Origin:	Guangzhou
Other Name:	Industrial Air Spring Bags	Installation:	Screw Installation
Warranty:	One Year	Firestone:	W013586910
Highlight:	Goodyear air spring replacement , vibration isolator air spring , air spring with cover plate

2B9-200 Goodyear Air Spring Replacement 578-92-3-202 Vibration Isolator Air Spring With Cover Plate

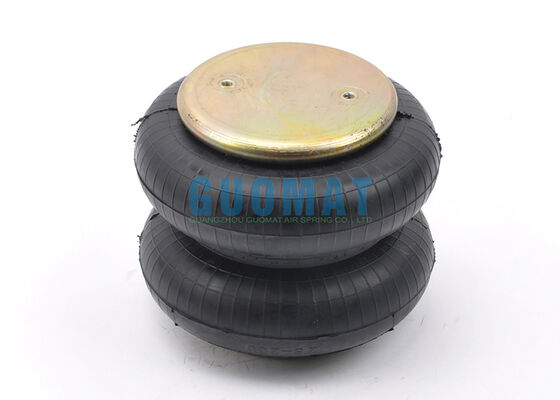

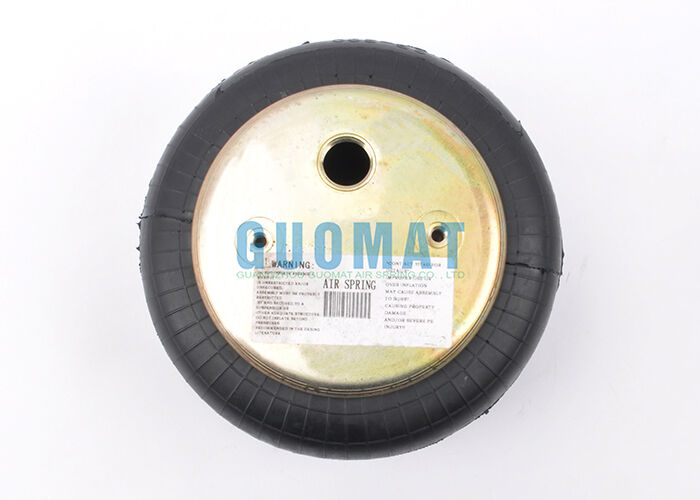

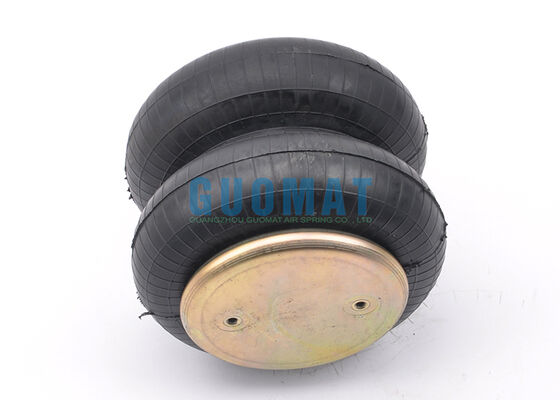

GUOMAT Model 2B6910-1/4 is a double convoluted air spring designed as a direct replacement for the Goodyear 2B9-200 and 578-92-3-202 vibration isolator air springs. Built with a durable rubber bellows and metal components, this air spring is supplied with a cover plate and delivers reliable vibration isolation, shock absorption, and load support for industrial machinery and pneumatic vibration isolation systems.

Product Specifications

GUOMAT Model: 2B6910-1/4
Product Type: Double Convoluted Air Spring
Material: Rubber bellows with metal components
Configuration: With cover plate
Main Functions: Vibration isolation, shock absorption, and load support
Application: Industrial machinery and pneumatic vibration isolation systems

Compatible Part Numbers

Brand	Part Number
GOODYEAR	2B9-200
GOODYEAR	578-92-3-202
AUTOMANN	ABSP2B12R-6910
CONTITECH	64267
CONTITECH	FD 200-19 320
DAYTON	354-6910
DINA	A-8127-19
FIRESTONE	6910
FIRESTONE	W01-358-6910
GRANNING	1371
HDA	PMABG-6910B
HENDRICKSON	45843-3
HENDRICKSON	B-8768
INT'L/NAVISTAR	554783C1
LOAD GUARD	SC2011
MASA	227138412
PREVOST	63-0173
R&S TRUCK & BODY	1027405
RIDEWELL	1003586910C
RIDEWELL	S-4512-C
SPRINGRIDE	2B9-492
TAURUS	AS218-6910
TRIANGLE	4320
TRP	AS69100
WATSON&CHALIN	AS-0001

Technical Data

Top Plate Hole/Stud Qty	3
Top Plate Dia	6.4
Top Plate C to C Diameter	3.5
Bottom Plate Hole Stud Qty	2
Bottom Plate Dia	6.4
Bottom Plate C to C Diameter	3.5
Bottom Plate Alignment	Parallel
Bumper	No
Min Height	3.2
Max Height	10.8

Advantages of GUOMAT Air Springs

Effective Vibration Isolation: Helps reduce vibration transmission between machinery and its supporting structure.
Flexible Rubber Construction: The rubber bellows provide flexibility and pneumatic cushioning for industrial applications.
Reliable Replacement Option: Suitable for replacement projects when the model, dimensions, and mounting details are compatible.
Multiple Industrial Applications: Designed for equipment requiring vibration reduction, impact cushioning, and pneumatic support.
OEM and Customization Support: Contact GUOMAT for product identification, dimensional confirmation, and customized requirements.
