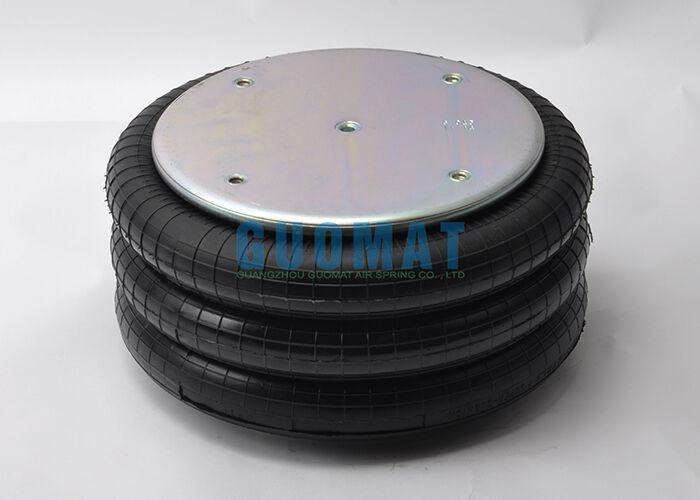

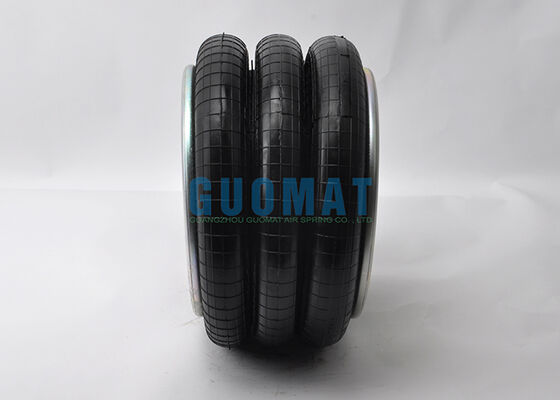

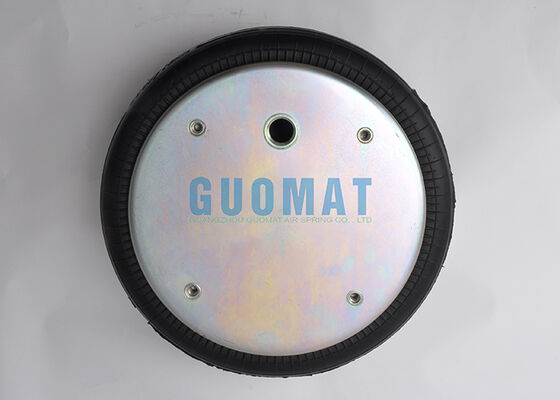

3B14-455 Goodyear Air Spring Triple Convoluted 556-33-8-335 Vibration Isolator For Factory Machinery

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B53035

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$89.9-109.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Rubber Type:	Natural Rubber	Model Name:	Industrial Air Spring
Bellow Number:	556-33-8-335	Specification:	242424 Cm
Medium:	Compressed Air	Goodyear:	3B14-455
Convolutions:	3	Color:	Black
Highlight:	Goodyear triple convoluted air spring , 556-33-8-335 vibration isolator , industrial air spring for machinery

Product Overview: GUOMAT 3B53035 Triple Convoluted Air Spring

The GUOMAT 3B53035 Triple Convoluted Air Spring is a high-performance rubber air spring replacement engineered for Goodyear 3B14-455 and 556-33-8-335 applications. It delivers reliable vibration isolation, shock absorption, and load support for industrial machinery, manufacturing equipment, and automated production lines that demand stable pneumatic support and precise vibration control.

Key Specifications

Brand	GUOMAT
Model No.	3B53035
Type	Triple Convoluted Type
Material	Rubber and Steel
Warranty	1 Year

Corresponding OEM Cross-Reference Numbers

This air spring is a direct replacement for the following Goodyear OEM part numbers:

GOODYEAR 3B14-455
GOODYEAR 3B 14-455
GOODYEAR 3B14 455
GOODYEAR 556-33-8-335
GOODYEAR 556 33 8 335
GOODYEAR 556338335

Technical Data

Top Plate Hole / Stud Qty	4
Top Plate Diameter	11.3
Top Plate C to C Diameter	6.25
Bottom Plate Hole / Stud Qty	4
Bottom Plate Diameter	11.3
Bottom Plate C to C Diameter	6.25
Bottom Plate Alignment	Parallel
Bumper	Yes
Min Height	4.5
Max Height	20.5

Packaging and Delivery

GUOMAT air springs are carefully packaged to protect rubber and metal components during transportation.

Packaging: Individual protective packaging and export cartons
Shipping Methods: Express courier, air freight, or sea freight
Delivery Time: Typically 3–7 working days for available stock; made-to-order items require confirmation
OEM Services: Logo marking and customized packaging can be discussed according to order requirements

Warranty and After-Sales Support

GUOMAT provides a 12-month warranty under applicable warranty terms. Our team can assist with product identification, model cross-referencing, dimensional confirmation, and replacement selection to help customers find a suitable air spring for their industrial equipment.
