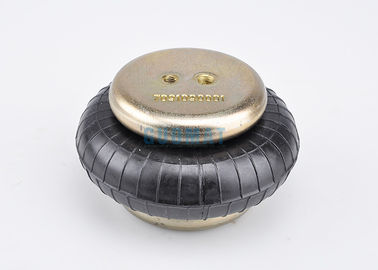

Industrial Air Spring Contitech FS40-6 Phoenix SP1B04 Weforma WBE100-E1
| FS40-6 Technical Parameters | |
| Top Cover Plate Diameter | 90mm |
| Bottom Cover Plate Diameter | 90mm |
| Screw Center Distance | 20mm |
| Distance Gas Hole Between Nut | Together |
| Gas Hole | G1/8 |
| Screw (Nut) Tooth | 2pcsXM8X1.25 |
| Rubber Bellows MAX Diameter | 145mm |
| The Stroke | 50-110mm |
FS40-6 OEM Original Equipment Manufacturer:
| Phoenix |
SP1B04 ; SP 1B04 SP 1B 04 |
| Weforma |
WBE100-E1 WBE 100-E1 |
| contitech | FS 40-6 |
| contitenal |
FS40-6 FS406 |
| Technical data of FS40-6 | |
| Min. pressure | 0 bar |
| Return force to min. height | ≤ 120 N |
| Overall weight with clamped plates | 0.9 kg |
| Vibration isolation - dynamic characteristic values of FS40-6 | |||||||
| Design height H: recommended 90mm, minimum 70mm | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [KN] | 1.7 | 2.3 | 2.8 | 3.4 | 3.8 | 4.4 | 0.5 |
| Spring rate [N/cm] | 760 | 990 | 1220 | 1480 | 1610 | 1820 | |
| Natural frequency [Hz] | 3.5 | 3.3 | 3.3 | 3.3 | 3.2 | 3.2 | |
| Pneumatic application - static characteristic values of FS40-6 | |||||||
| Force F [kN] | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Height H [mm] 60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 |
| 70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 |
| 80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 |
| 90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 |
| 100 | 1.2 | 1.6 | 2 | 2.5 | 3 | 3.4 | 0.6 |
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator | ||||
| All Measurements Are In Mm | ||||
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 1B4060 | FS 40-6 | 50 | 160 | 60 |
| 1B5050 | FS 50-5 | 51 | 165 | 44 |
| 1B7070 | FS 70-7 | 51 | 180 | 64 |
| 1B10010 | FS 100-10 | 51 | 225 | 94 |
| 1B1209 | FS 120-9 | 50 | 230 | 85 |
| 1B1210 | FS 120-10 | 51 | 245 | 99 |
| 1B12012 | FS 120-12 | 51 | 250 | 119 |
| 1B20010 | FS 200-10 | 51 | 265 | 89 |
| 1B33011 | FS 330-11 | 51 | 340 | 99 |
FS40-6 Air springs have successfully solved actuating problems, at a reduced cost,in many applications including:
1.Commercial washing machine
2.Hopper tank
3.Packaging machine vibration
4.The compressor
5.The console
6.Vibrating screen
7.Blower and motor
8.Control panel
9.Shock isolation
10.Shielding and flexible coupling
11.Vacuum pump
12.Expansion chuck
13.Supporting roller CAM
14.The sun tracker
Real detail photos of FS40-6 :
This FS46-6 Industrial Air Spring can be used for:
Such as:
Blower and Motor,
Control Panel,
Conveyor End Stop,
Mountain/Trail Bike,
Delicate Electronic Equipment
and Vibrating Screen.
| These OEM guomat can offer as the same size: | |||
| SP 1 B 04 | SP 2 B 05 R-a | 2B 07 R | 2B07R |
| SP 1 B 05 | SP 2 B 07 R | 2B 12 R | 2B12R |
| SP 1 B 07 | SP 2 B 12 R | 2B 12 R-3 | 2B12R-3 |
| SP 1 B 12 | SP 2 B 12 R-1 | 2B 15 R | 2B15R |
| SP 1 B 22 | SP 2 B 12 R-2 | 2B 20 R | 2B20R |
| SP 1 B 34 | SP 2 B 12 R-3 | 2B 20 R-9 | 2B20R-9 |
| SP1B04 | SP 2 B 22 R | 2B 21 R | 2B21R |
| SP1B05 | SP 2 B 34 R | 2B 21 R-9 | 2B21R-9 |
| SP1B07 | SP 2 B 34 R-b | 2B 22 R | 2B22R |
| SP1B12 | SP2B05R-a | 2B 22 R a-9 | 2B22Ra-9 |
| SP1B22 | SP2B07R | 2B 34 R | 2B34R |
| SP1B34 | SP2B12 R | 2B 34 R-b | 2B34R-b |
| SP2B12R-1 | 2B 49 R-a | 2B49R-a | |
| SP2B12R-2 | 2B 49 R-b | 2B49R-b | |
| SP2B12R-3 | 2B 85 R | 2B85R | |
| SP2B22R | 2B 85 R-a | 2B85R-a | |
| SP2B34R | |||
| SP2B34R-b | |||
