Place of Origin: | China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | W01-358-7994 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel And Rubber | Contitech: | FT330-29 |
---|---|---|---|
Warranty: | 12 Months | Weight: | 6.0kg |
Other Name: | Air Suspension Bags | Pressure Ability: | 2-8 M Pa |
Highlight: | convoluted air spring,air suspension parts |

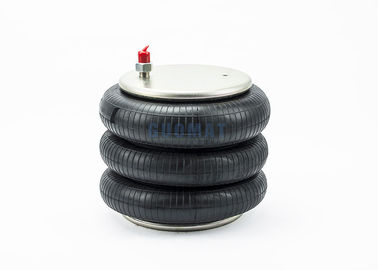

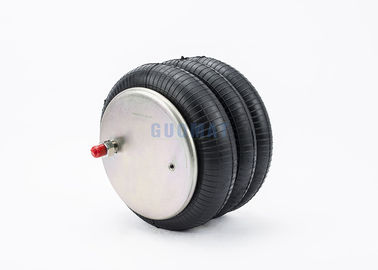

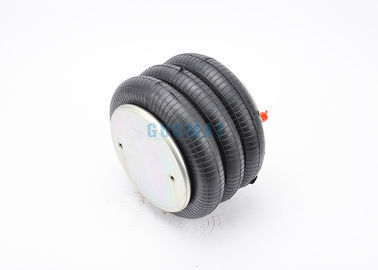

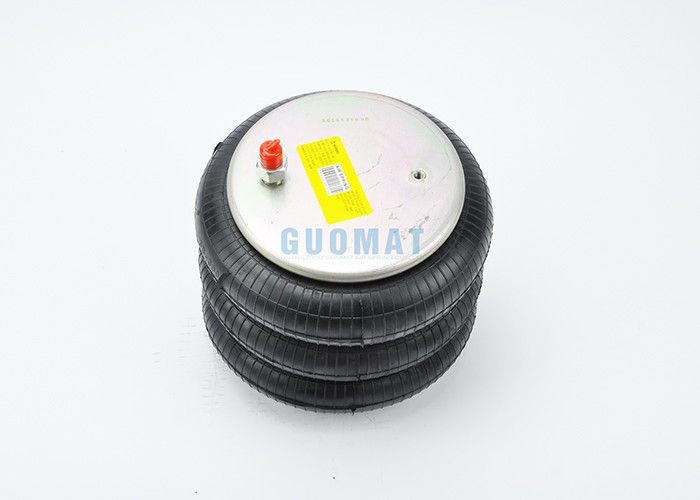

GOODYEAR 3B12-328 Air Spring Actuator FIRESTONE 7994 For Industrial Laundry Equipment
3B12328 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 140 mm
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm

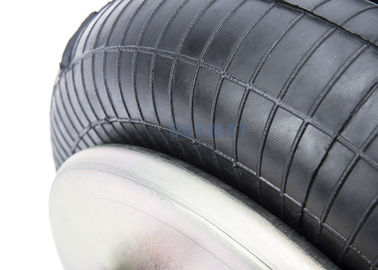

❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mm
Compression Height : 330 mm
❺ Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
OEM Original Equipment Manufacturer:
BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
AIRKRAFT 116008 | AIRKRAFT 115034 | AIRKRAFT 115072 |
FIRESTONE FLEX 38R/38D | CONTITECH FT 330-29 431/469 | CONTITECH FT 330-29 546 |
FIRESTONE 095.0047 | FIRESTONE W01-358-8008 | FIRESTONE W01-358-7994 |
GOODYEAR FLEX 556 3 3 8334 | W01-358-8025 | GOODYEAR 3B12-328 |
578 93 3 100 | W01-358-8028 | |
GOODYEAR 3B12-300 |
Firestone : W01-358-7994
Contitech : FT 330-29 546
Goodyear : 3B12-328
: 64572
Triangle : 4546/6364
Euolid/meritor After market : E-FS7994
Watson&chalin : AS-0019-F
CONTI | 64572 |
CONTI | FT330-29546 |
FIRESTONE | 7994 |
FIRESTONE | W013587994 |
TRIANGLE | 4546 |
WATSON & CHALIN | AS-0019-1F |
The usal kinds of Triple Convoluted Air Springs
Triple Convolution Air Actuator | ||||
All Measurements Are In Mm | ||||
GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
3B33029 | FT 330-29 | 110 | 345 | 320 |
3B43032 | FT 430-32 | 115 | 355 | 315 |
3B53032 | FT 530-32 | 110 | 410 | 325 |
3B53035 | FT 530-35 | 115 | 430 | 395 |
3B96034 | FT 960-34 | 120 | 510 | 335 |
3B133035 | FT 1330-35 | 120 | 570 | 350 |
Use in many applications including:
Air spring production process:
1. Rubber mixing: exercise and rubber processing
2. The production of rubber bellows: bellows is made of inner is a layer of rubber, the middle is two layers of cord fabric and the outside is a layer of rubber. Through the fixed mold them together.
3. Other forming accessories: plastic parts, iron base, aluminum base, iron plate, and other hardware accessories, these parts have been made in different moulds.
4. The bellows and other accessories are gotten together by machine and make out air spring.
5. Air tightness detection: each production of good air spring fills the air, and then put into the water to test whether the bubbling gas leakage.
6. Quality: blasting test, fatigue test, the air spring blasting pressure GUOMAT factory is up to 30 atmospheric pressure, fatigue to reach 3 million times, meet the international standards.
7. Packing: the qualified products for packaging, are usually carton packaging, need some special strong wooden case packing, others are labeling packaging according to customer's requirements.
57893232500000 | 20118924 | Y | 3B12-325 | 3B12-325 |
3B12-325 | 20118925 | N | 3B12-325 Bellows Air Spring | 3B12-325 Bellows Air Spring |
57893232500018 | 20118926 | Y | ENIDINE YI-3B12-325 | ENIDINE YI-3B12-325 |
57893232500019 | 20118927 | Y | ENIDINE YI-3B12-325 | ENIDINE YI-3B12-325 |
57893232600000 | 20118928 | Y | 3B12-326 | 3B12-326 |
3B12-326 | 20118929 | N | 3B12-326 Bellows Air Spring | 3B12-326 Bellows Air Spring |
57893232600018 | 20118931 | Y | ENIDINE YI-3B12-326 | ENIDINE YI-3B12-326 |
57893232600019 | 20118930 | Y | ENIDINE YI-3B12-326 | ENIDINE YI-3B12-326 |
57893232700000 | 20132717 | Y | 3B12-327 | 3B12-327 |
3B12-327 | 20132718 | N | 3B12-327 | 3B12-327 |
57893232800000 | 20132490 | Y | 3B12-328 | 3B12-328 |
3B12-328 | 20132491 | N | 3B12-328 Bellows Air Spring | 3B12-328 Bellows Air Spring |
57893232800077 | 20215646 | Y | 3B12-328 WATSON & CHALIN AS0019 | 3B12-328 WATSON & CHALIN AS0019 |
57893232900000 | 20132492 | Y | 3B12-329 | 3B12-329 |
3B12-329 | 20132493 | N | 3B12-329 Bellows Air Spring | 3B12-329 Bellows Air Spring |
57893232900077 | 20215647 | Y | 3B12-329 WATSON & CHALIN AS0048-2G | 3B12-329 WATSON & CHALIN AS0048-2G |
57893233000000 | 20130960 | Y | 3B12-330 | 3B12-330 |
57893233000004 | 20130961 | Y | 3B12-330 | 3B12-330 |
57893233400000 | 20156850 | Y | 3B12-334 | 3B12-334 |
3B12-334 | 20156851 | N | 3B12-334 | 3B12-334 |
57893233400055 | 20551236 | Y | 3B12-334 FOR MDC | 3B12-334 FOR MDC |
57893233500000 | 20141253 | Y | 3B12-335 | 3B12-335 |
3B12-335 | 20141254 | N | 3B12-335 Bellows Air Spring | 3B12-335 Bellows Air Spring |
57893233600000 | 20141257 | Y | 3B12-336 HENDRICKSON HEBRON 004645 | 3B12-336 HENDRICKSON HEBRON 004645 |
57893233600004 | 20141258 | Y | 3B12-336 HENDRICKSON HEBRON 004645 | 3B12-336 HENDRICKSON HEBRON 004645 |
57893233700000 | 20156098 | Y | 3B12-337 | 3B12-337 |
