Top and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying Machines

China Top and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying Machines supplier
Top and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying Machines supplier Top and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying Machines supplier Top and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying Machines supplier Top and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying Machines supplier

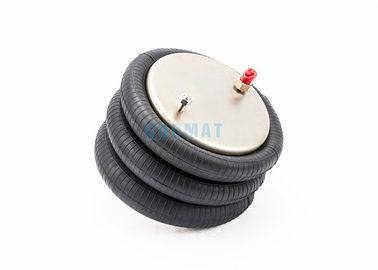

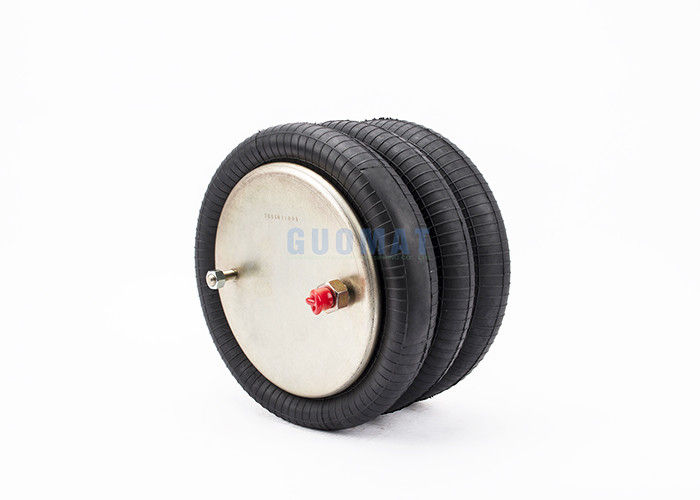

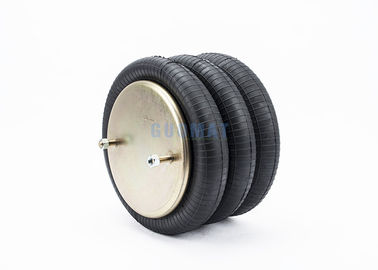

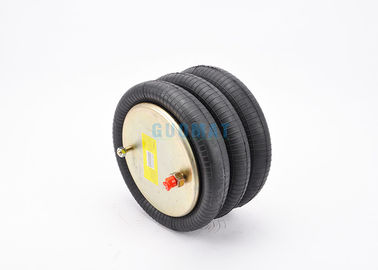

Large Image :  Top and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying Machines

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W01-358-7996

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Bellow Goodyear: 3B12-335
Warranty: 12 Months Weight: 6.0kg
Other Name: Air Suspension Bags Pressure Ability: 2-8 M Pa

Top and Bottom Cover Plate Diameter 231mm Industrial Air Spring For Large Drying Machines



3B6601

Large Drying Machines Air Spring Technical Parameters
Top Cover Plate Diameter 231mm
Bottom Cover Plate Diameter 231mm
Screw Center Distance 157.5mm
Distance Gas Hole Between Nut Together with Gas Hole
Gas Hole 1/4NPTF M18X1.5
Screw (Nut) Tooth 2pcsXM12X1.75
Rubber Bellows Diameter 330 max. OD
The Stroke 117-460mm
The Height Natural 110mm





Air springs have solved vibration and noise problems in multiple applications

  • machine controls
  • Check valve grinding
  • Jet engine testing platforms (isolation and thrust absorption)
  • Industrial suspension systems
  • Spray gas generator
  • Large drying machines (milk dryers)
  • Foundry shake-out systems
  • Swash plate of motor
  • Centrifugal separators
  • Scales and weight control equipment
  • Wave power module
  • Presses
  • Compressors, fans and blowers
  • The positioning device
  • Textile looms
  • Reduction of sever impact and elimination of impact idlers at
  • conveyor load points
  • Environmental protection equipment air spring,



three convolution bellows need to take care of these suggestions



Special happened to air three convolution bellows Spring conditions at a certain load and deflection. In order to Remained stable throughout three convolution bellows air springs Must fully support the maximum outer diameter Air springs. In addition, retainers must end Hidden approximately 0.75 " to the support surface, Or be accompanied by a special rubber ring mounted on the outside .The diameter of the retainer. Contact Goodyear engineered Product design of air spring on behalf of assistance. Special consideration to sleeve-shaped bellows When handling the air spring or below .Listed in the table height, care must be taken to avoid Flexible members contact with obstacles. Air spring Should be installed on a flat and Lower retainers, or a base . And the base plate are specified in the table.







Top and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying MachinesTop and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying MachinesTop and Bottom Cover Plate Industrial Air Spring Diameter 231mm For Large Drying Machines
