Rubber Four layers convoluted air spring

Rubber Four layers convoluted air spring

  • Rubber Four layers convoluted air spring
  • Rubber Four layers convoluted air spring
  • Rubber Four layers convoluted air spring
  • Rubber Four layers convoluted air spring
  • Rubber Four layers convoluted air spring
Rubber Four layers convoluted air spring
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: S-500-4R
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokoham: S-500-4
GUOMAT: F-500-4 Layer Number: 4 Convolution
Using Maximum Internal Pressure: 0.69 Mpa Vibration Frequency: 1.5 Hz
High Light:

triple convoluted air spring

,

double convoluted air spring

Rubber Air Spring S-500-4 To Isolate Of Frozen Food And Plastic Pellet Compaction Systems





Net Weight:13.5 KG



Gross Weight:14.5 KG



Package Size:228 mm*550mm*550mm

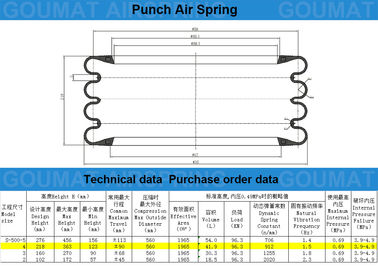

This item Detailed Parameter Table:



GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-500-4 S-500-4 218 363 123 ±90 560





Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
1965 41.9 96.3 912 1.5 0.69 3.9-4.9

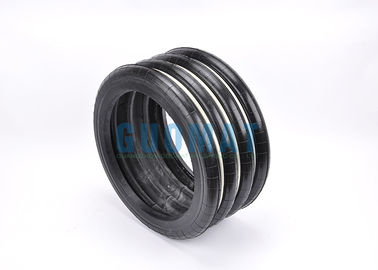

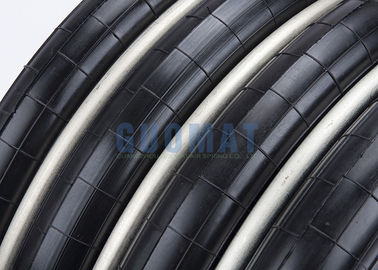

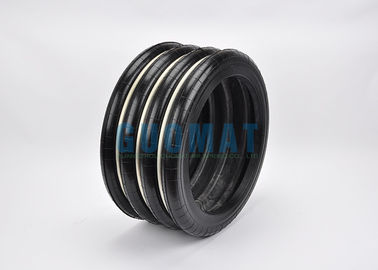

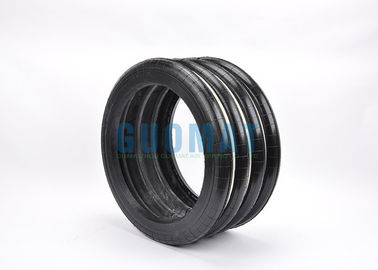

Rubber Four layers convoluted air spring 0Rubber Four layers convoluted air spring 1

Rubber Four layers convoluted air spring 2
