| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | S-240-3 R |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Yokohama: | S-240-3 |
|---|---|---|---|
| GUOMAT: | F-240-3 | Layer Number: | 3 Convolution |
| Using Maximum Internal Pressure: | 0.88 Mpa | Vibration Frequency: | 1.9 Hz |
| High Light: | double convoluted air spring,industrial air springs |
||

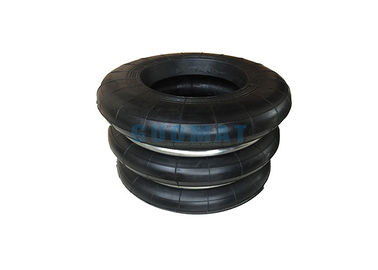

Hardware Punch S-240-3 Yokohama Air Spring Or Isolation Of Flex Testing Machines
Net Weight:4.35 KG
Gross Weight:4.85 KG
Package Size:165mm*295mm*295mm
S-240 Yokohama Air Spring Catalogue items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-240-4 | S-240-4 | 206 | 316 | 111 | ±80 | 300 |
| F-240-3 | S-240-3 | 152 | 232 | 82 | ±60 | 300 |
| F-240-2 | S-240-2 | 98 | 148 | 53 | ±40 | 300 |
| F-240-1 | S-240-1 | 72 | 110 | 40 | ±30 |
340 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-240-4 | S-240-4 | 450 | 10.1 | 22.2 | 235 | 1.6 | 0.88 | 2.9-3.9 |
| F-240-3 | S-240-3 | 450 | 7.3 | 22.2 | 324 | 1.9 | 0.88 | 2.9-3.9 |
| F-240-2 | S-240-2 | 450 | 4.4 | 22.2 | 520 | 2.4 | 0.88 | 2.9-3.9 |
| F-240-1 | S-240-1 | 450 | 3.5 | 22.2 | 765 | 2.9 | 0.69 |
2.9-3.9
|
This item can fits for many kinds of machines
