| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1R1A 390 295 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $19-29/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber | Contitech: | 661 N |
|---|---|---|---|
| Natural Outer Diameter: | 240 Mm | Opening Diameter: | 150.8 Mm |
| Height: | 395 Mm | FIRESTONE: | 1R1A 390 310 |
| GOODYEAR: | 8018 | PHOENIX: | 1E25 |
| High Light: | contitech air bags,air helper springs |
||

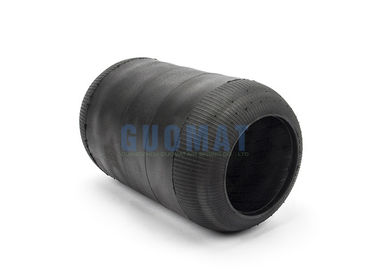

Air Spring Rubber Bellows Contitech 661 N IVE-CO 4746733 And Bussing Goodyear 8018
661 N Air Spring parameter value:
Nominal working pressure : 5.0-6.0 bar
maximum working pressure : 7.0bar
space envelope diameter : 325mm
maximum height: 460mm
Assembly height: 170mm - 310mm
Minimum height: 155mm
Minimum burst pressure : 18bar
load capacity (7.0 bar): 3885kg
| CROSS REFERENCES OEM REFERENCES | CROSS REFERENCES OEM REFERENCES |
| CONTITECH 661 N | GRANNING 15621 |
| FIRESTONE 1R1A 390 310 W01 095 0021 | HANOMAG-HENSCHEL 536905265 |
| GOODYEAR 8018 | HANOMAG-HENSCHEL 536905266 |
| PHOENIX 1E25 | IRIS 5001829866 |
| DUNLOP UK PNP304980101 | IVE-CO 4746733 |
| DUNLOP FR D12 S02 | IVE-CO 41822247 |
| CF GOMMA 1S 310-28 91016 | M.A.N 90.83112.0144 |
| TAURUS BL 114 | MAGIRUS-DEUTZ 0249 8667 |
| BUSSING 831120144 | MAGIRUS-DEUTZ 0418 22247 |
| BUSSING 546905134 | NEOPLAN 100112250 |
| DROGMOELLER 440320200002-00 | NEOPLAN AA10-01-001 |
| EVO-BUS 4,771,440,000 | French car V.I 5001829866 |
| EVO-BUS 4,731,031,000 | SCHMITZ-ANHANGER 750208 |
| VAN HOOL 624319-670 | |
| VAN HOOL 624319-690 | |
| VOL-VO 1 137882 | |
| VOL-VO 1 137888 | |
| VOL-VO 3159253 |
Dunlop Part Number
PNP 30498 01 01
Contitech Reference
661 N
Firestone Style
1R1C 390-310
Firestone Reference
W01 095 0021
Phoenix
1 E 25
Taurus
BL 114
Dunlop France
D12 S02
Goodyear
8018
CF Gomma (Pirelli)
1 SC 310-28
OEM Applications / Part Numbers
BUSSING 831 120 144 EVO 4.731.042.000 HANOMAG 536 905 265 IVE-CO 474.6733 KASSBOHRER MAGIRUS 0249 8667 MAN 90.83112.0144 NEOPLAN 1001 12 250 VAN HOOL
VOL-VO 1 137 888
661 N Air Spring Rubber Bellows can fit for below Vehicle and Model:
Hanomag 536 905 265 ( 661 N ) Vehicle : F 221 LEL Bus
Hanomag 536 905 265 ( 661 N ) Vehicle : F 223 LNL Bus
Hanomag 536 905 265 ( 661 N ) Vehicle : F 76 LL Bus
Hanomag 536 905 265 ( 661 N ) Vehicle : F 77 LL Bus
Ikarus ( 661 N ) Vehicle : Vov - Bus
Ikarus ( 661 N ) Vehicle : 19001
Ikarus ( 661 N ) Vehicle : 19002
IRIS 5.001.829.866 ( 661 N ) Vehicle : Tracer Eport Substitude lobe
IRIS 5.001.829.866 ( 661 N ) Vehicle : Tracer R 333
IRIS 5.010.073.846 661 MB R 333 Complete assembly only available through OES
IRIS 5.010.073.846 ( 661 N ) Vehicle : P01 Tracer
IRIS 5.010.393.477 C ( 661 N ) Vehicle : P03 Karosa Damper module with integrated shock absorber
IRIS 5.010.393.477 C ( 661 N ) Vehicle : P03 Illiade Damper module with integrated shock absorber
IRIS 5.010.556.291 ( 661 N ) Vehicle : P04 Illiade/Ares Damper module with integrated shock absorber (10 mm shorter
than ( 661 N ) Vehicle : P03)
IVE-CO 41822247 ( 661 N ) Vehicle : Bus 470 IVE-CO
IVE-CO 41822247 ( 661 N ) Vehicle : Bus 471 IVE-CO
IVE-CO 41822247 ( 661 N ) Vehicle : Bus 570 IVE-CO
IVE-CO 41822247 ( 661 N ) Vehicle : Bus 670 IVE-CO
IVE-CO Fiat 474.6733 ( 661 N ) Vehicle : FIAT - 116.121
IVE-CO Fiat 474.6733 ( 661 N ) Vehicle : FIAT - 119.121
IVE-CO Fiat 474.6733 ( 661 N ) Vehicle : FIAT - 79.121
IVE-CO Fiat 474.6733 ( 661 N ) Vehicle : IVE-CO - 190.30
IVE-CO Fiat 474.6733 ( 661 N ) Vehicle : IVE-CO - 240.30
IVE-CO Fiat 474.6733 ( 661 N ) Vehicle : IVE-CO - 240.36
IVE-CO Fiat 474.6733 ( 661 N ) Vehicle : IVE-CO - 240.38
Magirus 0418 22247 ( 661 N ) Vehicle : SH 110
Magirus 0418 22247 ( 661 N ) Vehicle : SH 120
Magirus 0418 22247 ( 661 N ) Vehicle : SH 170 (GL.B.)
Magirus 0418 22247 ( 661 N ) Vehicle : U 80
Magirus 0249 8667 ( 661 N ) Vehicle :
Magirus 0249 8667 ( 661 N ) Vehicle : M 170 SH 110
Magirus 0249 8667 ( 661 N ) Vehicle : M 200 SH 110
Magirus 0249 8667 ( 661 N ) Vehicle : M 200 SH110-U
How to install the bus air spring?
Step one: first of all, with both hands thumb and hold the upper seam allowance, four points to squeeze the middle part of the bellows at the same time, and the width of the compressed down to about one hand.
Step two: pick the compressed air spring on the piston and roof, you must let the trademark face up in the right place.
Step three: Put the under port fix on the bottom piston ring seat, and put the upper port fix to the roof of annular seat. Must to take protective measures in the process of the entire installation, supporting frame and the axle, to prevent slip body and cause damage.
Step four: pressurize air spring, make its port accurately with up and down between roof and pistons. Port will be fast 1 of "pa" in place.
Step five :Lowered vehicles, air spring will automatically scroll down along the piston. The installation is finished.
