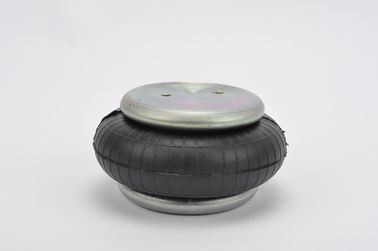

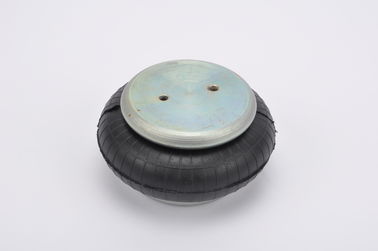

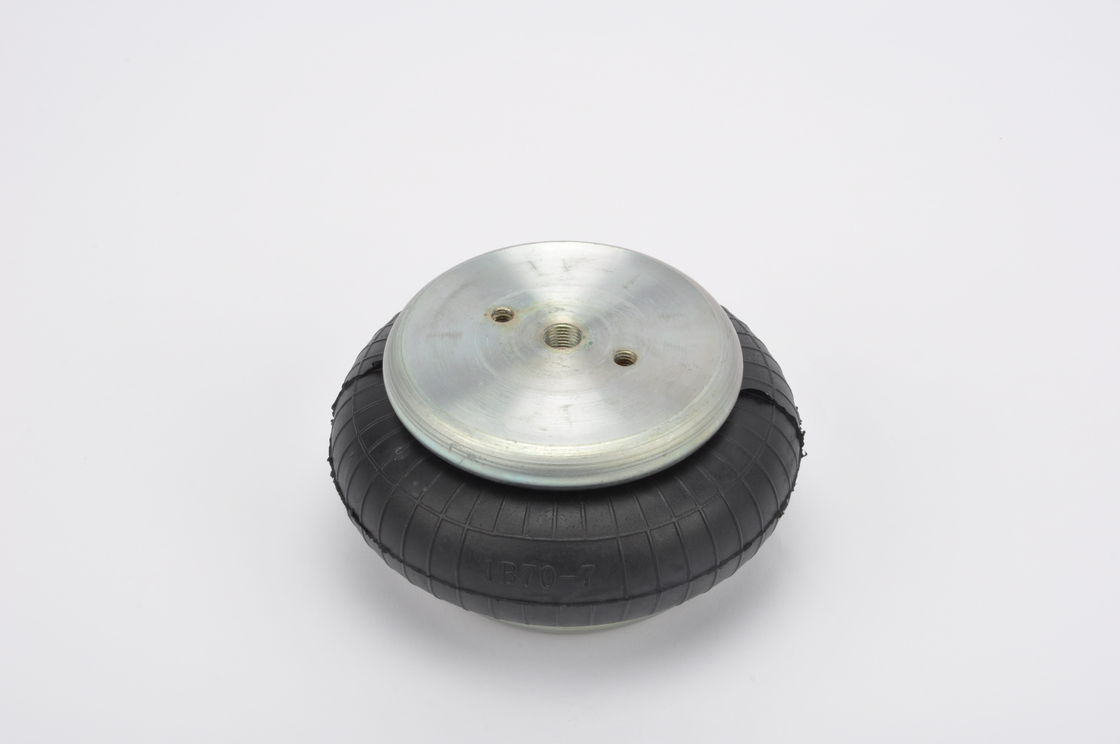

Industrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCH

China Industrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCH supplier
Industrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCH supplier Industrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCH supplier Industrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCH supplier Industrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCH supplier

Large Image :  Industrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCH

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: FS70-7

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel FIRESTONE: W01-358-0131
Warranty: 12 Months Weight: 1.5 Kg
Other Names: Industrial Air Shock Absorbers Pressure Ability: 2-8 M Pa
CONTITECH: FS 70-7 60512 BOSCH: 822419002

Industrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCH





OEM Original Equipment Manufacturer:



BELLOW NO. COMPLETE NO.
AIRKRAFT 112003 CONTITECH FS 70-7 2681 015 000
CONTITECH FS 70-7 60512 PHOENIX SP 1 B 05
FIRESTONE FLEX 131 BOSCH 822419002
FIRESTONE W01-358-0131 FESTO EB-165-65
  WEFORMA WBE 200-E1

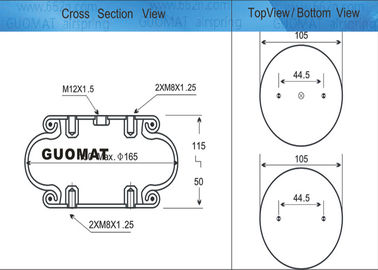

W01-358-0131 Technical Parameters
Top Cover Plate Diameter 105mm
Bottom Cover Plate Diameter 105mm
Screw Center Distance 44.5mm
Distance Gas Hole Between Nuts In Middle of Top Cover Plate
Gas Hole M12X1.5
Screw (Nut) Tooth 2pcsXM8X1.25
Rubber Bellows MAX Diameter Φ150 Max. Φ165
The Stroke 50-115mm





attention must be paid when installation the air spring



In design when using air spring, attention must be paid make sure there are no sharp edges will contact the flexible member air spring for the whole trip. This must be verified maximum inflation and zero pressure operation especially for the leaf and sleeves rolled leaf spring is the gap in menisci and piston supports the reduce surface pressure decreases. Space envelope outside of the air springs have to clear the maximum air spring two inches in diameter (inch) to allow normal growth and deformity deviation.





The structure of the industrial air spring element:



screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate

Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.

Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.

Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.

Composite Piston - GUOMAT provides a composite of glass fiber reinforced plastic piston into the reversible sleeve spring bus suspensions.





  Description Assembly Order No.
Style 131 Blind nuts, 1/4 BSP W01-M58-6155
Socket head aluminum bead rings (bolts, nuts, washers not included–use M6 cap screws) W01-358-0127
Two Ply Bellows
Rubber bellows only W01-358-0131




Industrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCHIndustrial Air Spring Cylinders PHOENIX SP 1 B 05 FIRESTONE W01-358-0131 BOSCH

Contact Details
GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Contact Person: Linda Lin

Tel: +8613924100039

Send your inquiry directly to us (0 / 3000)
