| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-7731 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Firestone: | W01-358-7731 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 1.5 Kg |
| Other Name: | Convoluted Air Spring | Pressure Ability: | 2-8 M Pa |
| High Light: | convoluted air spring,air helper springs |
||

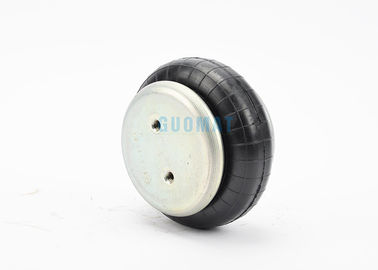

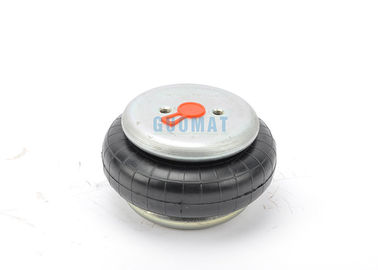

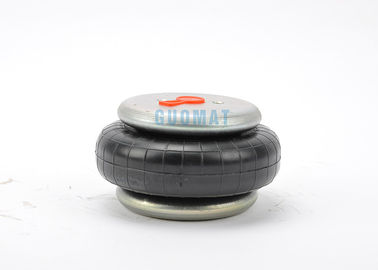

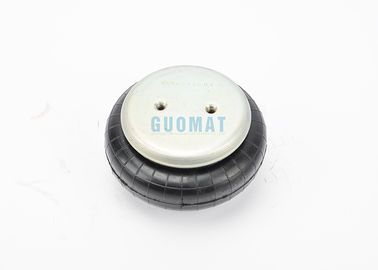

W01-358-7731 Single Convoluted Air Spring for Air spring vibration testing machine
OEM Original Equipment Manufacturer:
GUOMAT NO.:1B7070
Firestone : W01-358-7731

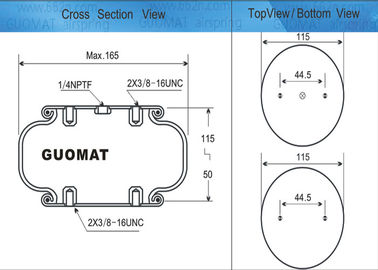

| W01-358-7731 Technical Parameters | |
| Top Cover Plate Diameter | 160mm |
| Bottom Cover Plate Diameter | 160mm |
| Screw Center Distance | 89mm |
| Distance Gas Hole Between Nut | 44.5mm |
| Gas Hole | 1/4NPTF |
| Screw (Nut) Tooth | 2pcsX3/8-16UNC |
| Rubber Bellows Diameter | Natural Φ220mm |
| The Height | Natural 110mm |
GUOMAT NO.:1B7070 this item can fit for the below Equipment:
Construction Equipment:Commercial dirt moving scraper, compactor, and wagon.
Agricultural Scrapers:Land Levelers, Laser-Scrapers, and Dirt Movers for the farm.
Subsoiler :Agricultural tillage tool.
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator | ||||
| All Measurements Are In Mm | ||||
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 1B4060 | FS 40-6 | 50 | 160 | 60 |
| 1B5050 | FS 50-5 | 51 | 165 | 44 |
| 1B7070 | FS 70-7 | 51 | 180 | 64 |
| 1B10010 | FS 100-10 | 51 | 225 | 94 |
| 1B1209 | FS 120-9 | 50 | 230 | 85 |
| 1B1210 | FS 120-10 | 51 | 245 | 99 |
| 1B12012 | FS 120-12 | 51 | 250 | 119 |
| 1B20010 | FS 200-10 | 51 | 265 | 89 |
| 1B33011 | FS 330-11 | 51 | 340 | 99 |
Effective noise reduction
The air suspension isolator reduces the noise transmitted by the structure.
The air isolator itself is also very quiet, because
There is no spring vibration found in traditional coil springs.
Compact installation height
Air suspension isolators can carry loads and provide isolation
The installation height described above is as low as 2.5 inches. Coil
A spring that provides equal isolation requires a free height of
5 to 25 inches.
Precise height control
Air suspension isolator can provide precise height control through adjuster
Changes in internal air pressure. This function eliminates
Found fatigue and permanent deformation when using other types of tires
Wide range of vibration isolators
The air suspension isolator can isolate 100 loads
1 pound to over 10 million pounds per installation point
Expansion equipment
GUOMAT isolators extend the life of equipment through their excellent performance
