Rubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas Hole

China Rubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas Hole supplier
Rubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas Hole supplier Rubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas Hole supplier Rubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas Hole supplier Rubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas Hole supplier

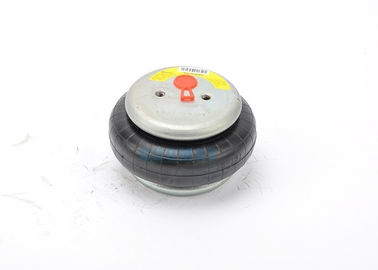

Large Image :  Rubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas Hole

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W01-358-7731

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Firestone: W01-358-7731
Warranty: 12 Months Weight: 1.7 Kg
Other Name: Air Suspension System Pressure Ability: 2-8 M Pa

Air spring vibration isolation equipment testing platform W01-358-7731 Slant Gas Hole





OEM Original Equipment Manufacturer:



Firestone : W01-358-7731



W01-358-7731 Technical Parameters
Top Cover Plate Diameter 115mm
Bottom Cover Plate Diameter 115mm
Screw Center Distance 44.5mm
Distance Gas Hole Between Nut 22.25mm
Gas Hole 1/4NPTF
Screw (Nut) Tooth 2pcsX3/8-16UNC
Rubber Bellows Diameter MAX Φ165mm
The Height 50-120 mm





GUOMAT NO.1B7731 Other details information:



GUOMAT NO. 1B7731 GUOMAT BELLOWS NO. 1B131
131B Style Air Spring, Type 1 Bead Plate 3/8-16 Blind Nuts On 1.75" Centers, 1/4" NPT Centered Port Short Description W01-358-7731, W013587731, WO1-358-7731, WO13587731
WO1-358-7731, 131B 2BN1/4CTR 2BN.   Manufacturer Part Number W013587731
Maximum Diameter @ 100 PSIG (mm) 165 Manufacturer Firestone Industrial
Maximum Height (mm) 120 Style Number 131B
Maximum Stroke (mm) 70 Style Shape Single Convolution
Minimum Usable Height (mm) 50 Competitor Cross Reference # Goodyear Part # 1B6-050 ‚ 1B6-051 ‚ 1B6-052 ‚ 1B6-053 ‚ 1B6-530 ‚ 1B6-531 ‚ 1B6-532
1 Inch (pounds) 1350 40 psig (pounds) 550
Maximum Stroke (pounds) 850 60 psig (pounds) 850
Material 2-Ply Standard Cord 80 psig (pounds) 1170
Bead plate Type 1 Natural Frequency (@80 psig) (cpm) 181
Blind Nut Centers (mm) 44.5 400 CPM % 74.4
Design Height (mm) 89 800 CPM % 94.6
    1500 CPM % 98.5





Rubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas HoleRubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas HoleRubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas HoleRubber SS Industrial Air Spring vibration isolation equipment testing platform W01-358-7731 Slant Gas Hole
