| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B9-202 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Goodyear: | 1B9-202 |
|---|---|---|---|
| Weight: | 1.8 Kg | Pressure Ability: | 2-8 M Pa |
| Goodyear Another OEM: | 578 91 3 201 | Gas Hole: | G3/4 |
| Screw Tooth: | M8 | Screw Center Distance: | 70 Mm |
| High Light: | convoluted air spring,air helper springs |
||

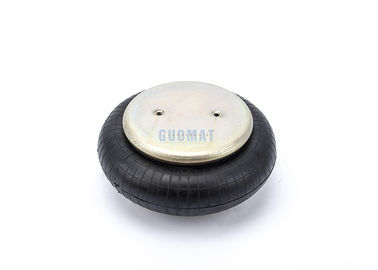

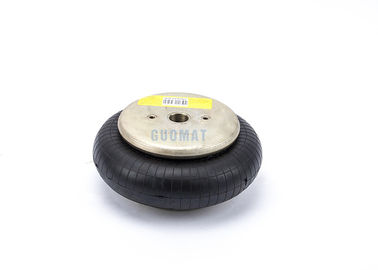

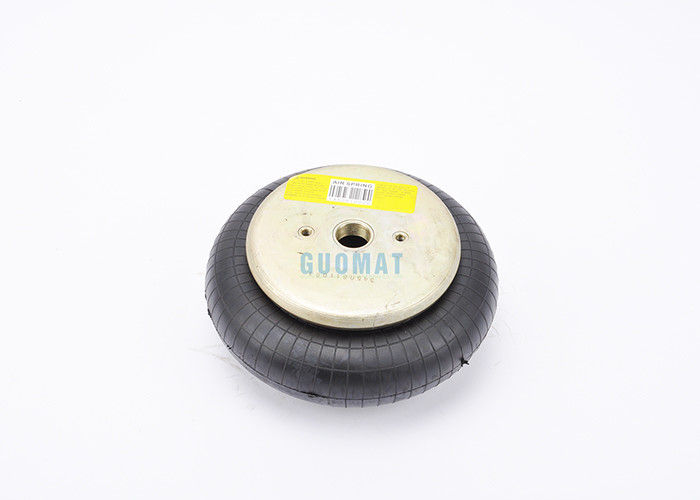

Vertical lift force for platforms and for rotation tables Industrial Air Spring Goodyear 1B9-202
OEM Original Equipment Manufacturer:
| Goodyear |
| 1B9-202 |
| 578 91 3 201 |
5.9 inches (150 mm)
Minimum height
2.3 inches (58.42 mm)
Stroke
3.6 inches (91.44 mm)
The maximum diameter
11 inches (279 mm)
❶Nut/blind nutTop plate screw (nut) teeth: 2 x 3 / 8-16UNCTop plate screw center distance: 89 mmScrew (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNCScrew center distance of bottom cover plate: 89 mm❷Air hole/air inlet/air fittingAir hole/air inlet: 1/4NPTCenter distance between nut and air inlet: 44.5 mm❸coverTop plate diameter (width): 160 mmDiameter of bottom cover (width): 160 mmBell rubber bellowsRubber bellows diameter: 222 mmCompressed height: 100 mm / 4.1 inchesMaximum height: 160 mmWorking stroke: 60 mm❺Bumper block/bumper blockNo bumper❻Belt loop/Belt loopWith belt loop: Without belt loop

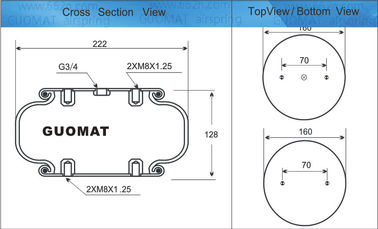

the gas hole is G3/4, and the Screw tooth is the metric system M8 ,Screw center distance is 70 mm
