Air Shock Suspension W01 M58 6353​ Rotary Shaft / Drain Valve Actuators

China Air Shock Suspension W01 M58 6353​ Rotary Shaft  / Drain Valve Actuators supplier
Air Shock Suspension W01 M58 6353​ Rotary Shaft  / Drain Valve Actuators supplier Air Shock Suspension W01 M58 6353​ Rotary Shaft  / Drain Valve Actuators supplier Air Shock Suspension W01 M58 6353​ Rotary Shaft  / Drain Valve Actuators supplier

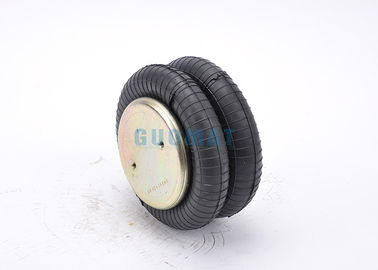

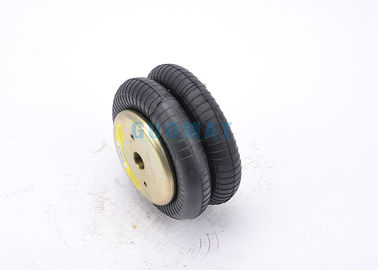

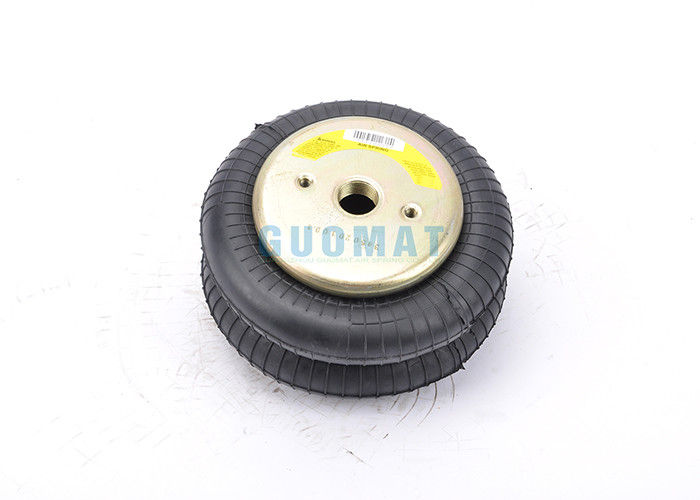

Large Image :  Air Shock Suspension W01 M58 6353​ Rotary Shaft / Drain Valve Actuators

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W01 M58 6353

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows WEFORMA: WBZ 300-E2
Gas Hole: G1/4 Screw Tooth: M8*1.25
Screw Center Distance: 70 Mm Cover Plate Diameter: 135 Mm
Pressure Ability: 2-8 M Pa Stroke: 75~230 Mm

Air Shock Suspension W01 M58 6353​ Rotary Shaft Actuators Drain Valve Actuators





GUOMAT FD12017 Technical parameters



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 70 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 70 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4 in the middle of the Top Cover Plate

Screw Center Distance Between Gas Hole and Nut : 35 mm

Cover Plate

Top Cover Plate Diameter: 135 mm

Bottom Cover Plate Diameter: 135 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 215 mm

The Working Stroke : MIN 75 mm to MAX 230 mm

Maximum Height : 230 mm

Minimum Height :75mm

Rubber Bellows Natural Height: 167 mm

Stroke Height : 155 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Many OEM Original Equipment Manufacturers of FIRESTONE W01 M58 6353 :



BELLOW Numbers COMPLETE Numbers

CONTITECH 603 N BOSCH 822419062
FIRESTONE FLEX 26 CONTITECH FD 120-17 61361
FIRESTONE W01 358 0142 FIRESTONE W01 M58 6353
PIRELLI 26 026B 095.0275
PHOENIX 2B O7 R WEFORMA WBZ 300-E2
AIRKRAFT 114050 AIRKRAFT 113054



W01-M58-6353, W01M586353, W01 M58 6353 WO1-M58-6353, WO1M586353



Detail Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]



Air Shock Suspension W01 M58 6353​ Rotary Shaft  / Drain Valve ActuatorsAir Shock Suspension W01 M58 6353​ Rotary Shaft  / Drain Valve ActuatorsAir Shock Suspension W01 M58 6353​ Rotary Shaft  / Drain Valve Actuators
