| Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01-358-6926 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
| Screw Center Distance: | 89 Mm | Cover Plate Diameter: | 160 Mm |
| Pressure Ability: | 2-8 M Pa | Stroke: | 75~260 Mm |
| Net Weight: | 3.35 Kg | Package Size: | 24*24*24 CM |
| Highlight: | convoluted air spring,air helper springs |
||

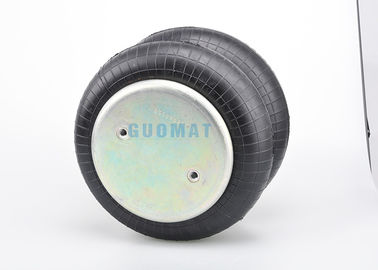

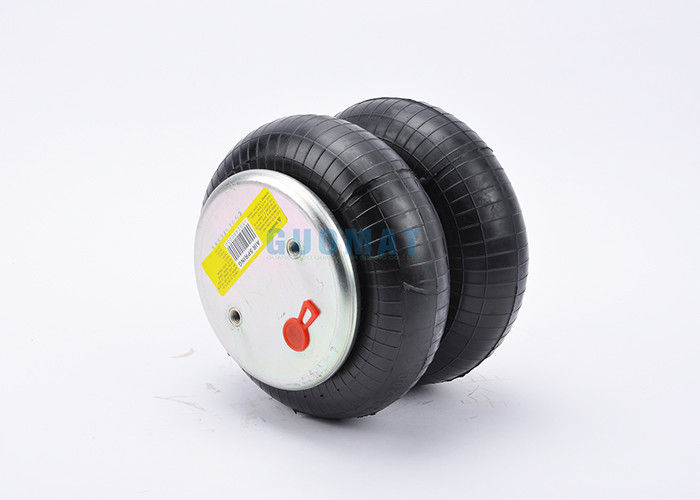

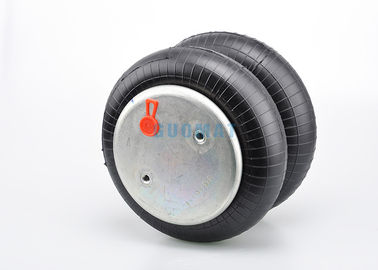

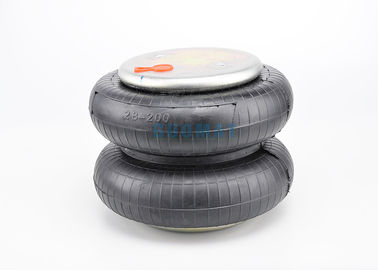

FD 200-19 504 Double Convoluted Air Spring For Acting Actuators Stitching Machines
GUOMAT 2B200-19 504 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 260 mm
Minimum Height :75mm
Stroke Height : 285 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
FD 200-19 504 Cross others OEM
| BELLOW Numbers | COMPLETE Numbers |
| AIRKRAFT 114001 | Firestone : W01-358-6926 |
| CONTITECH FD 20019 S / 895 N | Contitech : FD 200-19 504 |
| FIRESTONE FLEX 20 | : 161299 |
| FIRESTONE W01-358-0138 | Triangle : 6325/4504 |
| 095-0009 | Load share |
| GOODYEAR 2B 9-200 | RR Load : Ls20 |
| 578923202 | |
| PHOENIX 2B 12R | |
| PIRELLI T20 86600 |
Details Technical data at the below photo
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values Force F [kN]
FD 200-19 504 Double Convoluted Air Spring fit for
Quench Tank Actuator
Paper Sizing Press
Pickling Tank Actuator
Oscillating Doctor for Paper Calender Roll
Core Straightener
Cable Tensioning Device
Other kinds of FD 200-19 that GUOMAT have:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 200 19 310 | FD 200-19 310 | 161292 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 315 | FD 200-19 315 | 161293 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 320 | FD 200-19 320 | 161008 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 362 | FD 200-19 362 | 161294 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 448 | FD 200-19 448 | 161295 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 450 | FD 200-19 450 | 161296 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 452 | FD 200-19 452 | 161297 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 499 | FD 200-19 499 | 161298 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 504 | FD 200-19 504 | 161299 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 505 | FD 200-19 505 | 161300 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 506 | FD 200-19 506 | 161301 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 510 | FD 200-19 510 | 161302 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 524 | FD 200-19 524 | 161385 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 539 | FD 200-19 539 | 161303 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 600 | FD 200-19 600 | 161017 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
