Material: | Steel Cover Plate , Rubber Bellows | Contitech3: | FD 200-25 45 |
---|---|---|---|
Gas Hole: | 1/4NPT | Screw Tooth: | 3/4-16UNF |
Screw Center Distance: | 89 Mm | Cover Plate Diameter: | 160 Mm |
Pressure Ability: | 2-8 M Pa | Stroke: | 81-325 Mm |

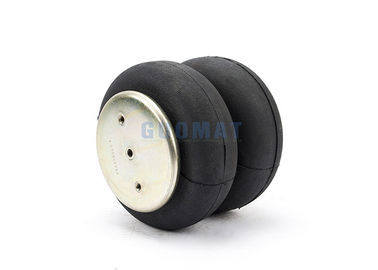

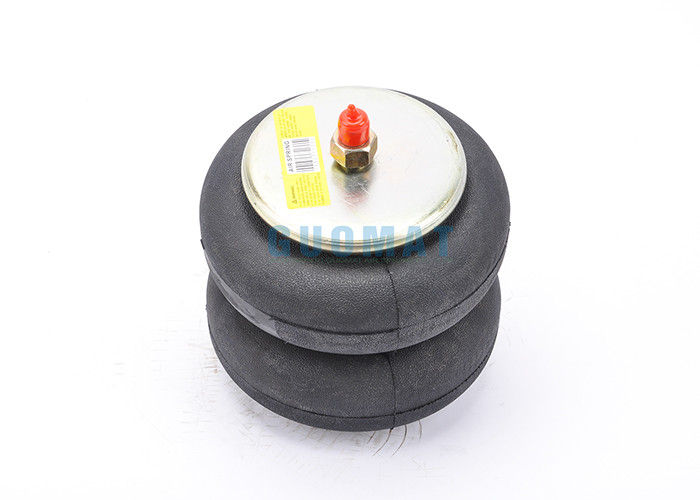

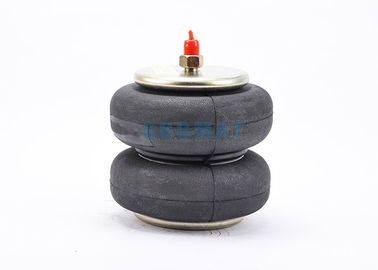

Firestone Air Spring Bag W01-358-6927 Actuators For Flask Lifts On Foundry Shake-Outs
GUOMAT 2B200-25 453 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX 3/4-16UNF
Top Cover Plate Screw (Nut) is Combined with the (Gas Hole / Air inlet / Air Fitting) which is In The Middle Of The Top Cover Plate
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 160 mm / 6.31 inches
Bottom Cover Plate Diameter: 160 mm / 6.31 inches
❹Rubber Bellows
Rubber Bellows MAX Diameter: 262 mm
Rubber Bellows Natural Diameter :225 mm / 8.88 inches
The Working Stroke : MAX 325mm to MIN 81 mm
Maximum Height : 325 mm
Minimum Height :81 mm / 3.12 inches
Stroke Height : 224 mm
❺ Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Firestone Part Number:W01-358-6927 / w013586927 / w01 358 6927
Firestone Bellows Number:20-2
ContiTech : FD20025453 / FD200-25453 FD200-25 453
ContiTech : 16133
Goodyear Part Number:2B9-218 / 2B9218 / 2B9 218
Goodyear Bellows Number:578-92-3-202 / :578923202 / :578 92 3 202
Reyco Number:12906-01
Triangle Part Number:4453
Triangle Bellows Number:6332
Leland : SC2072
SAF Holland : 57006927
Tuthill Technology : FSIP OEM: W017556927
Tuthill Technology : 1290601
W01-358-6927 Cross others OEM
OEM References Numbers | References Numbers |
Firestone : W01-358-6927 | Triangle : 6332/4453 |
Contitech : FD 200-25 453 | Leland : Sc2072 |
Contitech :: 161336 | SAF Holland : 57006927 |
Goodyear : 2B9-218 | Tuthill Technology : 1290601 |
Goodyear : 578923206/2 | Reyco : 12906-01 |
Details Technical data at the below photo
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values Force F [kN]
