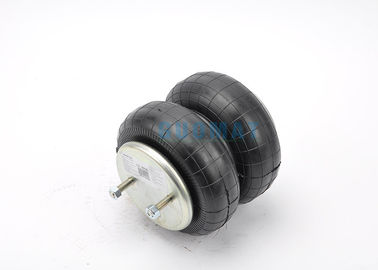

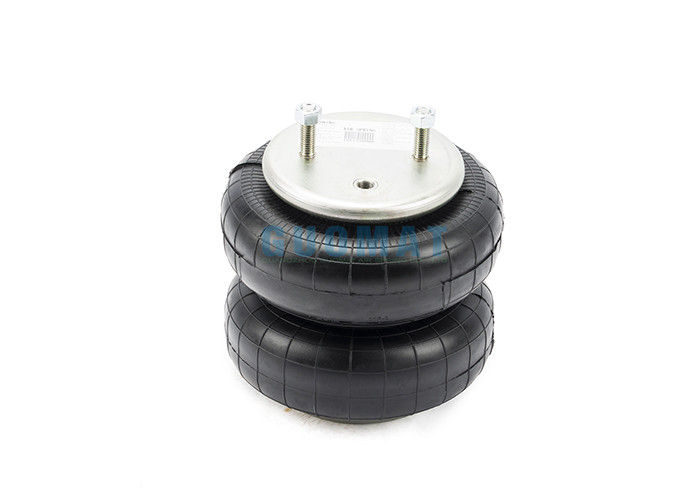

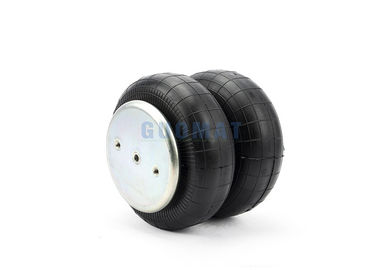

Goodyear 2B9-250 with Two Pillars Stick Nuts Actuators on Transfer Tables Lift Bag
GUOMAT 2B9-250 Specifications and Technical Data
Firestone Part Number: W01-358-6943 / W013586943 / W01 358 6943
Compressed Height: 3.12 inches /
Top Plate Number: 3101
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Piston Number: 3090
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Rubber Bellows MAX Diameter: 262 mm
The Working Stroke : MAX 325 mm to MIN 79 mm
Gas Hole / Air inlet : 1/4 NPTF
Firestone Bellows Number: 20-2
Goodyear Part Number: 2B9-250
Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206
Triangle Part Number: 4426
Triangle Bellows Number: 6332
Watson & Chalin #: AS-0041
Bellows NO.: 20-2
Order Number: W01-358-6943
Assembly Weight: 8.1 lbs
Design Height: 9-11 inches
Loading Capacity at 20 psig: 648 lbsf
Loading Capacity at 60 psig: 1,944 lbsf
Loading Capacity at 90 psig: 2,916 lbsf
Maximum Diameter: 10.4 inches
Operating Temperature: 56Cº to -53Cº
Goodyear: 2B9-250 Cross others OEM
| OEM References Numbers | References Numbers |
| Firestone : W01-358-6943 | Watson&Chalin : AS-0041 |
| Contitech : FD 200-25 426 | Neway/SAF : 90557237 |
| Contitech :: 161332 | V-Steer II (Lift Bag) |
| Goodyear: 2B9-250 | Van Raden |
| Triangle : 6332/4426 | Ridewell : 1003586943C |
| Goodyear:: 578923206 | Tuthill : 6352 |
