| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 578 92 3 206 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 2B9-253 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Two Pillars Stick Nuts: | 1/2 |
| Screw Center Distance: | 89 Mm | Cover Plate Diameter: | 160 Mm |
| Pressure Ability: | 2-8 M Pa | Natural Height: | 235 Mm |
| High Light: | convoluted air spring,air helper springs |
||

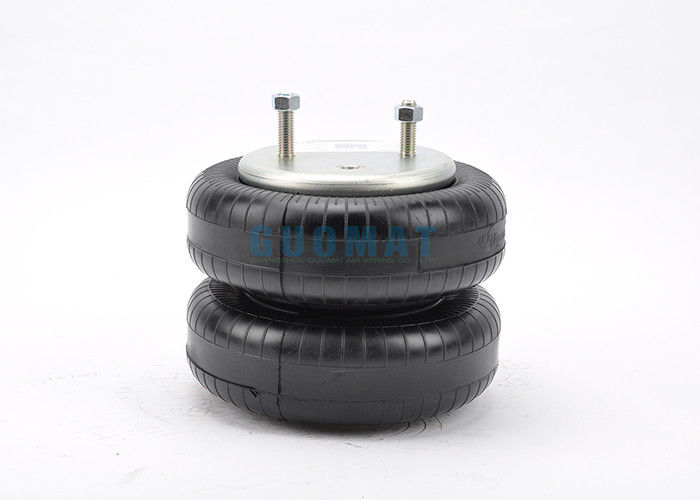

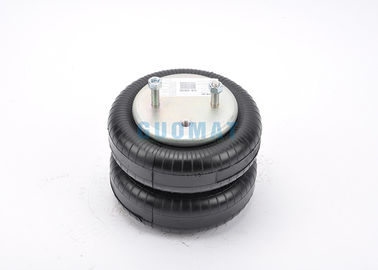

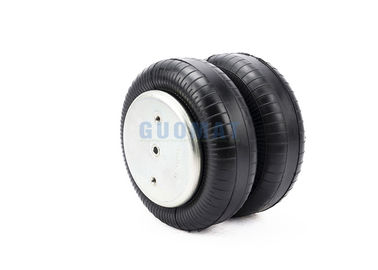

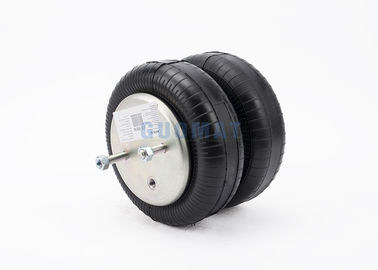

578923206 Industrial Air Spring Actuators On Bottle And Carton Filling Machines
Firestone W01-358-6951 CHANGE TO Firestone W01-358-6945/20-2
Top Plate Hole/Stud: 3 Pieces
Bottom Plate Hole/Stud: 2 Pieces
Top Cover Plate: 6.4 inches / 160 mm
Bottom Cover Plate Diameter: 6.4 inches / 160 mm
Collapsed Height: 3.8 inches / 96 mm
Screw Center Distance of Top Cover Plate : 3.5 inches / 89 mm
Screw Center Distance of Bottom Cover Plate : 3.5 inches / 89 mm
Rubber Bellows Natural Diameter : 232.5 mm
The Working Stroke : MAX 309 mm to MIN 96 mm / MAX 12.2 inches to MIN 3.8 inches
Maximum Height : 12.2 inches / 309 mm
Minimum Height :3.8 inches / 96 mm
Compression Height :8.3 inches / 213 mm
Rubber Bellows Natural :9.2 inches /235 mm
Goodyear Trimmed: 2B9253
Conti Tech: FD200-25427 / FD 200-25 427
Firestone W01-358-6945 / 20-2
Goodyear 2B9-253
Goodyear Flexmember: 578-92-3-206 / 578923206 / 578 92 3 206
Triangle Spring: 4427 / 6332
Firestone: 6945
Conti Tech: 64550
Ridewell: 1003586945C
Batco: 10-96945
UCF / Impex: AB-2B9-253
T.W. Distribution: AB6945
Dallas Spring: AS6945
Midland / Haldex: CS209253
Euclid/Meritor Aftermarket: E-FS6945
Euclid/Meritor Aftermarket: FS6945
Leland: SC2125
Watson&Chalin : AS0119F / AS01451G
Goodyear 578923206 Cross others OEM
| OEM References Numbers | References Numbers |
| Firestone W01-358-6951 | Triangle : 6332/4427 |
| Contitech FD 200-25 | Leland : Sc2125 |
| Goodyear 578923206 | Watson&Chalin : AS0119F |
| Goodyear 2B9-253 | : AS01451G |
| Ridewell : 1003586945C |
Details Technical data at the below photo
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values Force F [kN]
| 57892221800000 | 57892221800000 | 20094422 | Y | 2B9-218 | 2B9-218 |
| 57892221800004 | 2B9-218 | 20035782 | N | 2B9-218 Bellows Air Spring | 2B9-218 Bellows Air Spring |
| 57892222300000 | 57892222300000 | 20067192 | N | 2B9-223 METRIC | 2B9-223 METRIC |
| 57892222400000 | 57892222400000 | 20094430 | Y | 2B9-224 | 2B9-224 |
| 57892222500000 | 57892222500000 | 20035783 | Y | 2B9-225 | 2B9-225 |
| 57892222500004 | 2B9-225 | 20094432 | N | 2B9-225 Bellows Air Spring | 2B9-225 Bellows Air Spring |
| 57892222500019 | 57892222500019 | 20248277 | Y | ENIDINE 2B9-225 | ENIDINE 2B9-225 |
| 57892222500029 | 57892222500029 | 20251574 | Y | 2B9-225 VIBRATECH | 2B9-225 VIBRATECH |
| 57892222500073 | 57892222500073 | 20131791 | Y | 2B9-225 NATIONAL STEEL 70604703 | 2B9-225 NATIONAL STEEL 70604703 |
| 57892222500074 | 57892222500074 | 20140152 | Y | 2B9-225 TTX 1999408 | 2B9-225 TTX 1999408 |
| 57892222600004 | 2B10-226 | 20094435 | N | 2B10-226 Bellows Air Spring | 2B10-226 Bellows Air Spring |
| 57892222800000 | 57892222800000 | 20094438 | Y | 2B9-228 | 2B9-228 |
| 57892222900000 | 57892222900000 | 20094439 | Y | 2B9-229 | 2B9-229 |
| 57892222900004 | 2B9-229 | 20067578 | N | 2B9-229 Bellows Air Spring | 2B9-229 Bellows Air Spring |
| 57892222900077 | 57892222900077 | 20215645 | Y | 2B9-229 WATSON & CHALIN AS0058 | 2B9-229 WATSON & CHALIN AS0058 |
| 57892222930000 | 57892222930000 | 20094444 | Y | 2B9-229 | 2B9-229 |
| 57892223000004 | 2B9-230 | 20067579 | N | 2B9-230 Bellows Air Spring | 2B9-230 Bellows Air Spring |
| 57892223400000 | 57892223400000 | 20067736 | Y | 2B9-234 METRIC | 2B9-234 METRIC |
| 57892223500000 | 57892223500000 | 20094446 | Y | 2B9-235 METRIC | 2B9-235 METRIC |
| 57892223500019 | 57892223500019 | 20094447 | Y | ENIDINE YI-2B9-235 METRIC | ENIDINE YI-2B9-235 METRIC |
| 57892223800000 | 57892223800000 | 20106791 | Y | 2B9-238 | 2B9-238 |
| 57892223800004 | 2B9-238 | 20110594 | N | 2B9-238 | 2B9-238 |
| 57892223900000 | 57892223900000 | 20106792 | Y | 2B9-239 | 2B9-239 |
| 57892223900004 | 2B9-239 | 20110595 | N | 2B9-239 Bellows Air Spring | 2B9-239 Bellows Air Spring |
| 57892224000000 | 57892224000000 | 20035767 | Y | 2B9-240 KIT | 2B9-240 KIT |
| 57892224000004 | 2B9-240 | 20094448 | N | 2B9-240 Bellows Air Spring | 2B9-240 Bellows Air Spring |
| 57892224100000 | 57892224100000 | 20106793 | Y | 2B9-241 | 2B9-241 |
| 57892224200000 | 57892224200000 | 20106794 | Y | 2B9-242 | 2B9-242 |
| 57892224200004 | 2B9-242 | 20110597 | N | 2B9-242 | 2B9-242 |
| 57892224300000 | 57892224300000 | 20106795 | Y | 2B9-243 | 2B9-243 |
| 57892224300004 | 2B9-243 | 20110599 | N | 2B9-243 | 2B9-243 |
| 57892224400000 | 57892224400000 | 20113666 | Y | 2B9-244 | 2B9-244 |
| 57892224400004 | 2B9-244 | 20113667 | N | 2B9-244 Bellows Air Spring | 2B9-244 Bellows Air Spring |
| 57892224500000 | 57892224500000 | 20119614 | Y | 2B9-245 | 2B9-245 |
| 57892224500004 | 2B9-245 | 20113706 | N | 2B9-245 Bellows Air Spring | 2B9-245 Bellows Air Spring |
| 57892224600000 | 57892224600000 | 20139383 | Y | 2B9-246 | 2B9-246 |
| 57892224600004 | 2B9-246 | 20139384 | N | 2B9-246 Bellows Air Spring | 2B9-246 Bellows Air Spring |
| 57892224900000 | 57892224900000 | 20169787 | Y | 2B9-249 | 2B9-249 |
| 57892224900004 | 2B9-249 | 20169789 | N | 2B9-249 | 2B9-249 |
| 57892225000000 | 57892225000000 | 20094450 | Y | 2B9-250 EXT | 2B9-250 EXT |
| 57892225000004 | 2B9-250 | 20054261 | N | 2B9-250 Bellows Air Spring | 2B9-250 Bellows Air Spring |
| 57892225000019 | 57892225000019 | 20094453 | Y | ENIDINE YI-2B9-250 | ENIDINE YI-2B9-250 |
| 57892225000076 | 57892225000076 | 20246076 | Y | 2B9-250 EXT - DANA S-3106-044 | 2B9-250 EXT - DANA S-3106-044 |
