| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7444 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | FIRESTONE: | W01-358-7444 |
|---|---|---|---|
| GOODYEAR FLEX: | 556 2 3 8328 | AIRKRAFT: | 114302 |
| Top Cover Plate Screw (Nut) Tooth: | 2 Pcs X 3/8-16UNC | Rubber Bellows Natural Diameter: | 300 Mm |
| Pressure Ability: | 0.2-0.8 MPa | ||
| Highlight: | convoluted air spring,air suspension parts |
||

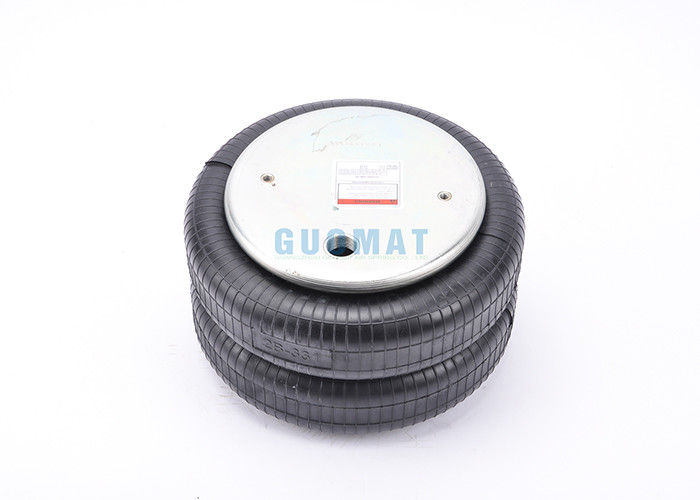

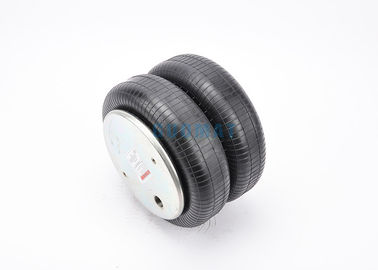

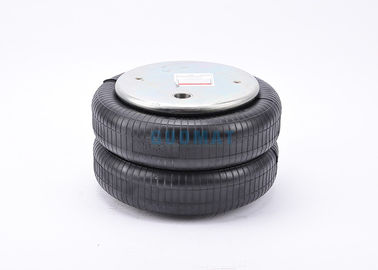

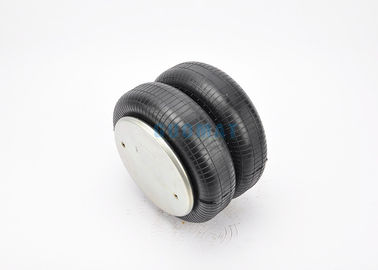

2B7444 Rubber Industrial Air Spring W01-358-7444 Double Air Bellows For Gas Hole / Air Inlet 1/4nptf 3/4nptf
| BELLOW Number | COMPLETE Number | COMPLETE Number |
| FIRESTONE W01 358 0259 | DUNLOP (FR) S12280 | DUNLOP (FR) S12280 |
| 22-1,5/095.0092 | FIRESTONE W01 358 7440 | FIRESTONE W01-358-7443 |
| GOODYEAR FLEX 556 2 3 8328 | GOODYEAR 2B12-305 | GOODYEAR 2B12-305 |
| 578 92 3 310 | AIRKRAFT 113311 | AIRKRAF T 113493 |
| AIRKRAFT 114302 | ||
| FIRESTONE FLEX 22-1,5 | FIRESTONE W01-358-7442 | |
| FIRESTONE W01-358-7444 | GOODYEAR 2B12-419 | |
| GOODYEAR 2B12-416 | AIRKRAFT 113494 | |
| AIRKRAFT 113316 |
W01-358-7444 Specifications:
2B-320 Rubber bellow only
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF / 3/4NPTF / Rp1/4
Rp1/4(Air inlet is in the center)
1/4NPT ( air inlet 73mm)
1/4NPT(Air inlet is in the center)
3/4NPT ( air inlet 73mm)
❸ Cover Plate
Top Cover Plate Diameter (Width): 210 mm
Bottom Cover Plate Diameter (Width): 210 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 300 mm
Rubber Bellows Natural Height : 241 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Compressed height
3.03"
Maximum expansion height
14.2"
The maximum diameter
13.4"
Maximum inflation pressure
120 psi
Maximum stroke
11.17 inches
Inlet type
Imperial
Air inlet
1/4"
series
C
lowest temperature
-76°F
Maximum temperature
158°F
Bellows type
Double convolution
weight
11.2 pounds
W01-358-7444 Other cross OEM:
Air Spring Supplier: ContiTech
Competitor / Supplier Number: FD330-30369
Air Spring Supplier: Goodyear
Reference: 578923315
Competitor / Supplier Number: 2B12-416
Air Spring Supplier: Goodyear
Reference: 578923310
Competitor / Supplier Number: 2B12-446
Air Spring Supplier: Triangle
Reference: 6328
Competitor / Supplier Number: 4369
Suspension of supplier: Hendrickson
FSIP OEM: W01-455-7444
Suspension of suppliers: Hendrickson Trailer
Competitor / Supplier Number: S9830
Suspended supplier: Ridewell
Competitor / Supplier Number: 1003587444C
Firestone Trimmed: w01-358-7444
Firestone air springs:
|
Description |
Assembly Order No. |
|
|
Firestone Style 22-1.5 |
Blind nuts, 1/4 NPT |
Firestone W01-358-7444 |
|
Blind nuts, 1/4 NPT, rubber bumper |
Firestone W01-358-7473 |
|
|
Blind nuts, 3/4 NPT |
Firestone W01-358-7442 |
|
|
Two Ply Bellows |
||
|
Blind nuts, 1/4 NPT(centered) |
Firestone W01-358-7443 |
|
|
Rubber bellows only |
Firestone W01-358-0259 |
|
|
Countersunk steel bead rings, 1 5/8 bolts, nuts, washers |
Firestone W01-358-7480 |
|
|
Assembly weight...................................................... 12.9 lbs. |
||
|
Force to collapse to minimum height (@ 0 PSIG) ..... 26 lbs. |
||
