| Material: | Steel Cover Plate , Rubber Bellows | Contitech: | Fd 70-13 |
|---|---|---|---|
| Continental: | Fd 70-13 | Firestone Style:: | 25(255-1.5) |
| Firestone: | W01-M58-6105 | Gigant: | 196027 |
| Pressure Ability: | 0.2-0.8 MPa | GUOMAT NO.: | 2B7070 |
| MAX OD: | 165 MM | ||
| High Light: | convoluted air spring,air suspension parts |
||

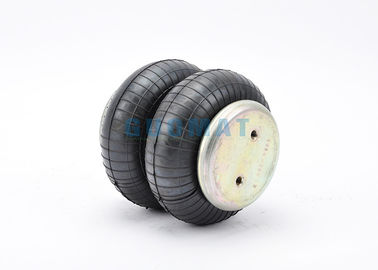

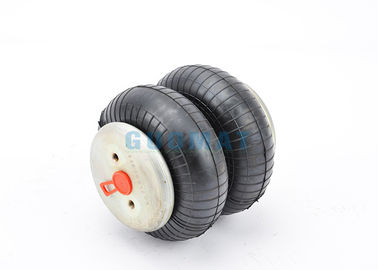

Air Spring Continental Fd 70-13 Firestone Style:25(255-1.5) Firestone W01-M58-6105
GUOMAT Air Spring 2B7070 double convoluted Air Bag describes GUOMAT convoluted type industry air spring will use a flexible member without internal molded beads. The rubber bellows number is 25, and the flexible piece is connected to the end of the holder by pinching the material between the top and the bottom plates, and then adjusting it to an appropriate diameter.
| GUOMAT 2B7070 OEM COMPLETE Number |
| FD 70-13 1/4 M8 |
| fd 70-13 contitech |
| fd 70-13 1/4 m8 |
| fd 70-13 |
| fd 70 13 |
| fd 70-13 ci |
| contitech fd 70-13 ci |
| continental fd 70-13 ci |
| Firestone Style :25(255-1.5) |
| Firestone No.:W01-M58-6105 |
| Manufacturer Original-part no. |
| Model Gigant 196027 |

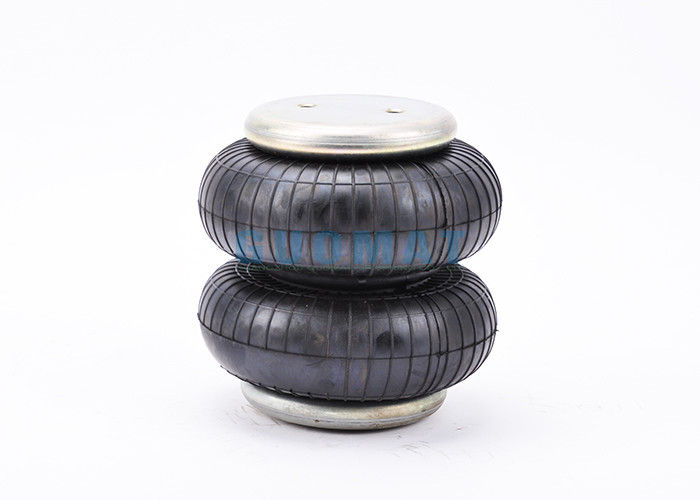

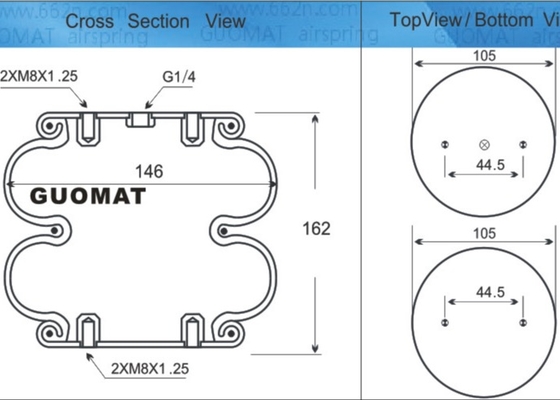

Fd 70-13 Specifications and Detail Technical Parameters
Specifications
Weight 1,4 kg
G1/4: max. 25 Nm
M8: max. 25 Nm
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Top Cover Plate : 44.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate : 44.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
❸ Cover Plate
Top Cover Plate Diameter (Width): 105 mm
Bottom Cover Plate Diameter (Width): 105 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 146 mm
Rubber Bellows MAX Diameter : 165 mm
Installation Space Diameter : 180 mm
Rubber Bellows Natural Height : 162 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
One pc of GUOMAT 2B7070 Package size and weight:
| Net Weight | Gross Weight | Length (cm) |
Width (cm) |
Height (cm) |
Measurememt (cbm) |
| 1.6 | 2.0 | 16 | 16 | 16 | 0.01 |
Note:
We always have goods in stock.
This air spring is generally in stock. The products produced by GUOMAT conform to national standards. The warranty is one year. Any quality problem can be exchanged within one year.
There is no limit to the number of purchases. Small quantities are generally sent by international express, such as DHL, FEDEX, UPS, TNT, etc. The time is also very fast, usually within 3-7 working days to receive the goods.
Pictures Show The Information Includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
Double Convolution Air Spring Calculation inquiry:
| GUOMAT NO. | Product designation | Load capacity at | Natural frequency at | Recommended operating height | Required installation diameter | ||
| 5 bar | 8 bar | 5 bar | 8 bar | ||||
| Double Convolution Air Spring | |||||||
| FD 40 10 | FD 40-10 | 1,95 | 3,2 | 2,7 | 2,7 | 160 | 160 |
| FD 70 13 | FD 70-13 | 3,1 | 5 | 2,5 | 2,5 | 175 | 180 |
| FD 110 15 | FD 110-15 | 5,6 | 9,2 | 2,2 | 2,1 | 175 | 215 |
| FD 120 17 | FD 120-17 | 6,5 | 10,6 | 2 | 2 | 190 | 230 |
| FD 120 20 | FD 120-20 | 7,8 | 12,7 | 1,8 | 1,7 | 205 | 235 |
| FD 138 18 | FD 138-18 | 6,9 | 11,2 | 2 | 2 | 200 | 245 |
| FD 200 19 | FD 200-19 | 9 | 14,5 | 1,9 | 1,9 | 210 | 265 |
| FD 200 22 | FD 200-22 | 10,3 | 16,5 | 1,7 | 1,6 | 220 | 265 |
| FD 200 25 | FD 200-25 | 10,2 | 16,5 | 1,7 | 1,7 | 254 | 275 |
| FD 210 22 | FD 210-22 | 11,6 | 19,4 | 1,8 | 1,7 | 220 | 300 |
