Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | FD 40-10 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FD 40-10 |
---|---|---|---|
Gas Hole: | G1/4 | Screw Tooth: | M8X1.25 |
Screw Center Distance: | 20 Mm | Cover Plate Diameter: | 90 Mm |
Pressure Ability: | 0.2-0.8 M Pa | Rubber Bellows Natural Height: | 145 Mm |
Highlight: | convoluted air spring,air helper springs |

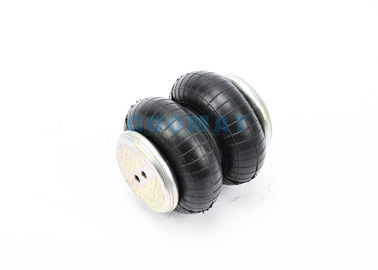

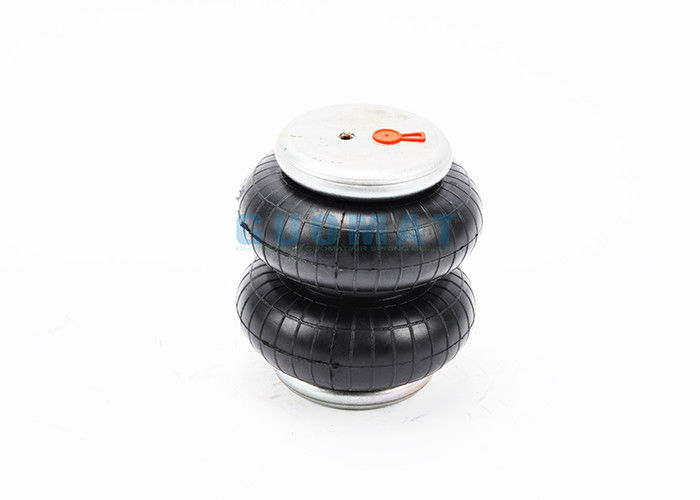

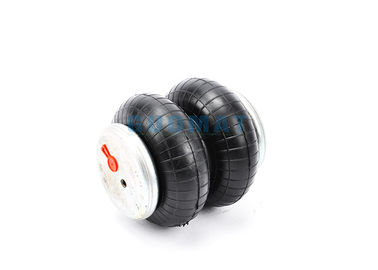

Industrial Air Spring Fd 40-10 Has G1/8 Air Inlet Is Combined With Nut Is M8x1.25
FD 40-10
FD 40-10 CI
Contitech FD 40-10
Double Convolution Air Actuator
M8: max. 25 Nm
G1/8: max. 25 Nm
Type Order No. Rubber bellows only 72586 with crimped plates, G1/8 air inlet 10 mm excentrical 2682001000 with stainless steel crimped plates, G1/8 air inlet 0 mm excentrical 61755
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Top Cover Plate : 20 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate : 20 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/8 Air inlet is combined with Nut
❸ Cover Plate
Top Cover Plate Diameter (Width): 90 mm
Bottom Cover Plate Diameter (Width): 90 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 125mm
Rubber Bellows Natural Height : 145 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Piece of Girdle Hoop
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
GUOMAT NO. | Product designation | Load capacity at | Natural frequency at | Recommended operating height | Required installation diameter | ||
5 bar | 8 bar | 5 bar | 8 bar | ||||
Double Convolution Air Spring | |||||||
FD 40 10 | FD 40-10 | 1,95 | 3,2 | 2,7 | 2,7 | 160 | 160 |
FD 70 13 | FD 70-13 | 3,1 | 5 | 2,5 | 2,5 | 175 | 180 |
FD 110 15 | FD 110-15 | 5,6 | 9,2 | 2,2 | 2,1 | 175 | 215 |
FD 120 17 | FD 120-17 | 6,5 | 10,6 | 2 | 2 | 190 | 230 |
FD 120 20 | FD 120-20 | 7,8 | 12,7 | 1,8 | 1,7 | 205 | 235 |
FD 138 18 | FD 138-18 | 6,9 | 11,2 | 2 | 2 | 200 | 245 |
FD 200 19 | FD 200-19 | 9 | 14,5 | 1,9 | 1,9 | 210 | 265 |
FD 200 22 | FD 200-22 | 10,3 | 16,5 | 1,7 | 1,6 | 220 | 265 |
FD 200 25 | FD 200-25 | 10,2 | 16,5 | 1,7 | 1,7 | 254 | 275 |
FD 210 22 | FD 210-22 | 11,6 | 19,4 | 1,8 | 1,7 | 220 | 300 |
FD 330 22 | FD 330-22 | 16,7 | 27,6 | 1,8 | 1,7 | 240 | 340 |
FD 412 18 | FD 412-18 | 18,3 | 30 | 1,8 | 1,8 | 220 | 350 |
FD 530 22 | FD 530-22 | 25,8 | 42 | 1,8 | 1,7 | 250 | 400 |
FD 530 30 | FD 530-30 | 29,3 | 48,2 | 1,6 | 1,5 | 260 | 415 |
FD 530 35 | FD 530-35 | 31,6 | 51,2 | 1,5 | 1,4 | 285 | 420 |
FD 960 22 | FD 960-22 | 45,6 | 71,5 | 1,6 | 1,6 | 240 | 490 |
FD 1330 25 | FD 1330-25 | 65,3 | 103,9 | 1,6 | 1,5 | 240 | 570 |
FD 1710 25 | FD 1710-25 | 86,6 | 136,6 | 1,6 | 1,5 | 240 | 620 |
FD 2380 24 | FD 2380-24 | 114,9 | 186,1 | 1,6 | 1,5 | 240 | 710 |
FD 2870 30 | FD 2870-30 | 138,7 | 217,6 | 1,5 | 1,4 | 265 | 760 |
FD 5450 28 | FD 5450-28 | 260,8 | 415,3 | 1,4 | 1,3 | 280 | 1000 |
