ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426

China ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426 supplier
ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426 supplier ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426 supplier ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426 supplier ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426 supplier

Large Image :  ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W01-358-7406

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W01-358-7406
Goodyear: 2B12-426 / 2B12 426 / 2B12426 Firestone Bellows Number: 22
Gas Hole / Air Inlet: 1/4NPT Air Inlet And Nut :: 157mm
Compressed Height: 104 Mm / 4.12 Inches Working Stroke: 201 Mm / 7.9 Inches

Industrial Air Spring Firestone W01-358-7406 /W01 358 7406 / W013587406 To 2B12-426





Manufacturer Cross OEM Reference Other Cross OEM Reference
Firestone Part Number:W01-358-7406 /W01 358 7406 / W013587406 Ridewell Number:1003587406C
Firestone Bellows Number:22 Triangle : 6316/4365
Firestone : W01-358-7406 Leland : Sc2076
Contitech : FD 330-22 365 / FD330 22 365 Navistar : 1685180C1
Goodyear : 2B12-426 / 2B12 426 / 2B12426 SAF Holland : 57007406
Goodyear Bellows Number : 578-92-3-309 / 578 92 3 309 / 578923309 Leland : Sc2074





FD 330-22 CI have bellow kinds of air inlet and deference crimped plates.



Type Order No. : 74199

Order No. 60031 :with crimped plates, G1/4 air inlet, 73 mm excentrical

Order No. 68674:with crimped plates, G3/4 air inlet, 73 mm excentrical

Order No. 2682060000: with crimped plates, G1 air inlet, 66 mm excentrical

Order No. 61959:with stainless steel crimped plates, G1 air inlet, 66 mm excentrical

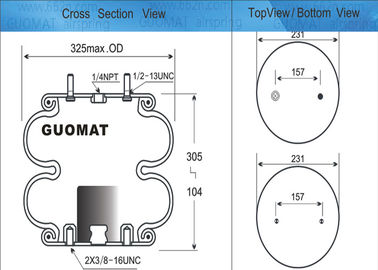

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC

Screw Center Distance of Top Cover Plate : 157 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT

Center Distance Between air inlet and Nut : 157mm

Cover Plate

Top Cover Plate Diameter (Width): 231 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches

Top Cover Plate Number: 3220

Bottom Cover Plate Number: 3183

Rubber Bellows

Rubber Bellows MAX Diameter : 325 mm / 12.9 inches

Compressed Height: 104 mm / 4.12 inches

Minimum Jounce Height: 104 mm / 4.12 inches

Design Height: 203 mm-241mm / 8-9.5 inches

Maximum Height: 305 mm / 12 inches

Bellows # NO.: 22

Working Stroke : 201 mm / 7.9 inches

Bumper block / Buffer block

With Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Pictures show the information includes:



Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values



ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426ISO Industrial Air Spring Firestone W01-358-7406 / W01 358 7406 / W013587406 To 2B12-426



GUOMAT air spring production of the air spring has the following advantages:



1, product quality, Thailand import natural rubber, the core technology in Germany

2, With the same price on the market, GUOMAT optimal quality. With the same quality of products, GUOMAT has lowest price.

3, cars, trucks, buses and industrial air spring has production, fully meet the customers' different requirements.

4, GUOMAT spell price, not only do the brand.

5, more than 10 years of production technology, products cover all over the world.

6, have dealers around the world, the first response to all customer requirements.





GUOMAT air spring solemn commitment to the customer:



1, we don't spell at a low price, we only make quality products.

2, the same price on the market of air spring, we must be the best quality.

3, the same quality of air spring on the market, we must be the best price.

4, different regions, the same price of air spring there will be a slight difference, because of considering the freight after wait for a reason.

5, GUOMAT air spring not profiteering, only genuine, solid products.

6, all customers for the product quality problems need to be replaced, we have to change.
