Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | W01-358-7781/233-2 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01 358 7550 |
---|---|---|---|
Contitech: | FD 530-35 545 | GoodYear: | 2B12-427 |
Gas Hole / Air Inlet: | Rc1 1/4 , Combination Stud/Air Inlet Stud | Cover Plate Diameter (Width): | 315 Mm |
Compressed Height: | 90 Mm | Bottom Cover Plate Screw (Nut) Tooth: | 4 Pieces XM10X1.5 |
High Light: | convoluted air spring,air helper springs |

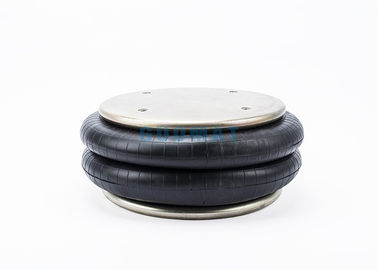

Goodyear 2B12 427 Industrial Air Spring Contitech FD53035545 Firestone W013587781
Manufacturers | OEM |
Firestone : | W01-358-7781/233-2 |
Contitech : | FD 530-35 545 |
Goodyear : | 2B12-427 |
Triangle : | 6312 |
Ridewell : | 1003587781C |
Firestone Top Plate Number: | 3134 |
Firestone Piston Number: | 3130 |
Firestone Bellows Number: | 233-2 |
Ridewell Number: | 1003587781C |
Part Number: | W01-358-7781 |
ContiTech :FD53035545 | FD53035545 |
Triangle: | 6412 |
Firestone Trimmed: | w013587781 |
Assembly Weight: 22.7 lbs
Minimum Jounce Height: 4.8 inches
Loading Capacity at 20 psig: 2,040 lbsf
Loading Capacity at 60 psig: 6,120 lbsf
Loading Capacity at 90 psig: 9,180 lbsf
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pieces XM10X1.5
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pieces XM10X1.5
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : Rc1 1/4 , Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter (Width): 315 mm
Bottom Cover Plate Diameter (Width): 315 mm
❹Rubber Bellows
Rubber Bellows Design Diameter : 360 mm
Rubber Bellows MAX Diameter : OD 385 mm
Compressed Height: 90 mm
Maximum Height: 300mm
Working Stroke : 210 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
80 psi | 100 psi | Min | MAX | ||||||
FD 530 22 311 | FD 530-22 311 | 161326 | 6530 | 8170 | 15 | 9.8 | 3.3 | 12.2 | 108 |
FD 530 22 316 | FD 530-22 316 | 161327 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
FD 530 22 321 | FD 530-22 321 | 161328 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
FD 530 22 342 | FD 530-22 342 | 161329 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
FD 530 22 345 | FD 530-22 345 | 161330 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
FD 530 22 374 | FD 530-22 374 | 161331 | 6530 | 8170 | 15 | 9.8 | 3.3 | 12.2 | 108 |
FD 530 30 449 | FD 530-30 449 | 161372 | 7480 | 9350 | 15.5 | 10.2 | 4.1 | 13.8 | 91 |
FD 530 30 451 | FD 530-30 451 | 161373 | 7480 | 9350 | 15.5 | 10.2 | 4.1 | 13.8 | 91 |
FD 530 30 518 | FD 530-30 518 | 161374 | 7480 | 9350 | 15.5 | 10.2 | 3.4 | 13.8 | 91 |
FD 530 30 519 | FD 530-30 519 | 161375 | 7480 | 9350 | 15.5 | 10.2 | 4.1 | 13.8 | 91 |
FD 530 30 532 | FD 530-30 532 | 161376 | 7480 | 9350 | 15.5 | 10.2 | 4.1 | 13.8 | 91 |
FD 530 35 528 | FD 530-35 528 | 161386 | 7930 | 9910 | 16 | 11 | 3 | 15.4 | 84 |
FD 530 35 530 | FD 530-35 530 | 161387 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
FD 530 35 543 | FD 530-35 543 | 161388 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
FD 530 35 544 | FD 530-35 544 | 161389 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
FD 530 35 545 | FD 530-35 545 | 161390 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
