| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 936N |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $19-29/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Natural Rubber | CONTITECH: | 936 N / 936N |
|---|---|---|---|
| DUNLOP UK: | PNP 309070100 / PNP309070100 | DUNLOP FR: | D12S01 |
| French Car V.I: | 5.000.819.370 | RVI: | 5000819370 |
| RVI Model: | Bus R312 | ||
| High Light: | contitech air bags,air helper springs |
||

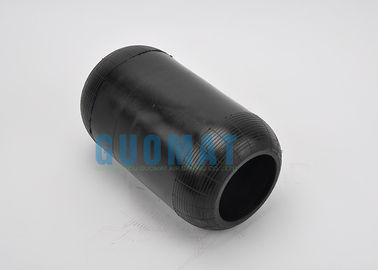

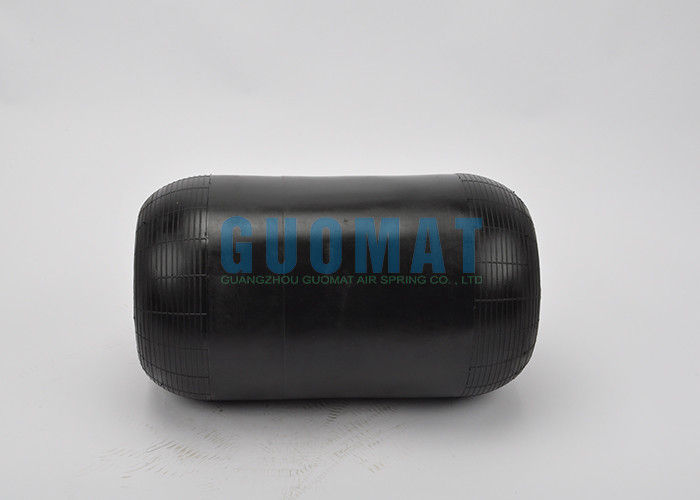

Bus Air Spring 936N DUNLOP UK PNP309070100 For RVI 5.000.819.370 Bus R312

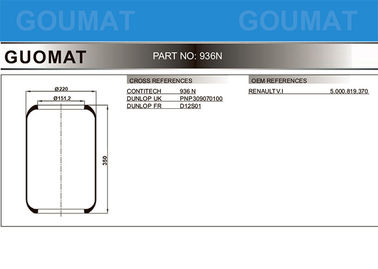

GUOMAT NO . 936N Air Spring specification:
maximum height: 330 mm
Assembly height: 230mm
Minimum height: 150mm
Minimum burst pressure : 18bar
load capacity (7.0 bar): 3365kg
Nominal working pressure : 5.0-6.0 bar
maximum working pressure : 7.0bar
space envelope diameter : 350mm
OEM Cross Number of 936N Air Spring:
| OEM Cross Number | |
| CONTITECH | 936 N / 936N |
| DUNLOP UK | PNP 309070100 / PNP309070100 |
| DUNLOP FR | D12S01 |
| GUOMAT | 936N |
Dunlop Part Number
PNP 30907 01 00
Contitech Reference
936 N
Dunlop France
D12 S01
OEM Applications / Part Numbers
RVI 5.000.819.370
936N fits for French car V.I Vehicles and Models :
| Vehicle | OEM | AIR SPRING | Model |
| French car V.I | 5.000.819.370 | 936 N | Bus R312 |
| RVI | 5.000.819.370 | 936 N | Bus R312 |
| RVI | 5000819370 | 936 N | Bus R312 |
| Rubber Bellows OEM Cross References | |||||||
| GUOMAT NO. | CONTITECH | FIRESTONE | FIRESTONE Part No. | GOODYEAR | PHOENIX | DUNLOP UK | Vibracoustic |
| G916N1 | 916 N1 | 9015 | 1 F 21 C-5 | ||||
| G921N | 921 N | 1R1A 415 260 | W01 095 0226 | 8043 | 1E 17 | V 2 E 23 | |
| G927N | 927 N | 1R1J 415 285 | W01 095 0244 | 8037 | 2 E 18 B | PNP 300080100 | V 2 E 18 B |
| G928N | 928 N | 1R1K 380 320 | W01 095 0228 | 8042 | 2 E 23 A | IC 3308 | |
| G936N | 936 N | PNP 309070100 | |||||
| G943N | 943 N | 1R1A 260 285 | W01 095 0189 | 9001 | PNP 316720100 | ||
| G944N | 944 N | 1R1A 370 285 | W01 095 0198 | 8012 | 1E 21-6 | V 1E 21-6 | |
| G945N | 945 N | 1R1A 460 290 | W01 095 0063 | 9014 | 1 E 21-C | PNP 301000101 | |
| G946N | 946 N | ||||||
| G975N | 975 N | 1R1T 320 195 | W01 095 0437 | 1 E 10 | V 1E 10 | ||
| G1234N1 | 1234 N1 | ||||||
| G1415N | 1415 N | ||||||
| G1421N | 1421 N | 1R2A 490 305 | W01 095 0472 | ||||
| G1720N | 1720 N | ||||||
| G1774N | 1774 N | ||||||
| G1782N1 | 1782 N1 | ||||||
| G1788N | 1788 N | ||||||
| G1819N | 1819 N | ||||||
| G1876N | 1876 N | ||||||
| G1885N1 | 1885 N1 | 1R2A 445 280 | W01 095 0429 | 9003 | 1 F 20 B | V 1F 20 B | |
| G1886N | 1886 N | ||||||
| G1888N | 1888 N | ||||||
| G1924N1 | 1924 N1 | ||||||
| GRZ415-25 | RZ 415-25 | 1R5P 345 290 | W01 095 0381 | 9004 | 2 G 20 | V 2 G 20 | |
| GRZ415-28 | RZ 415-28 | 1R5P 410 290 | W01 095 0382 | 9005 | 2 G 20 A | V 2 G 20 A | |
| GRZ450-25 | RZ 450-25 | 9050 | 1 E 23 | ||||
| G1R4U395 260 | 1R4U 395 260 | W01 095 0453 | A 310950013 | ||||
| G1R1E440 320 | 1R1E 440 320 | 229 | 8313 | PNP 30521 | |||
