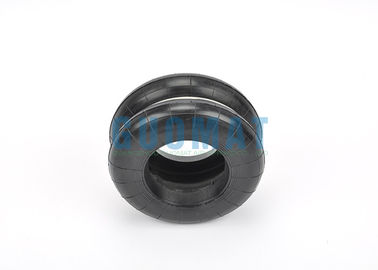

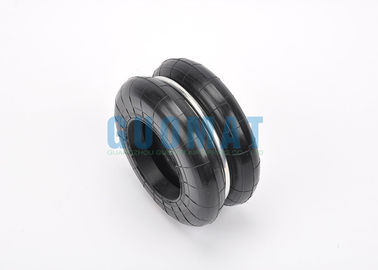

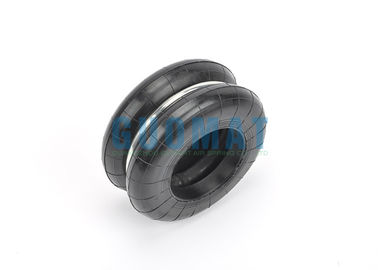

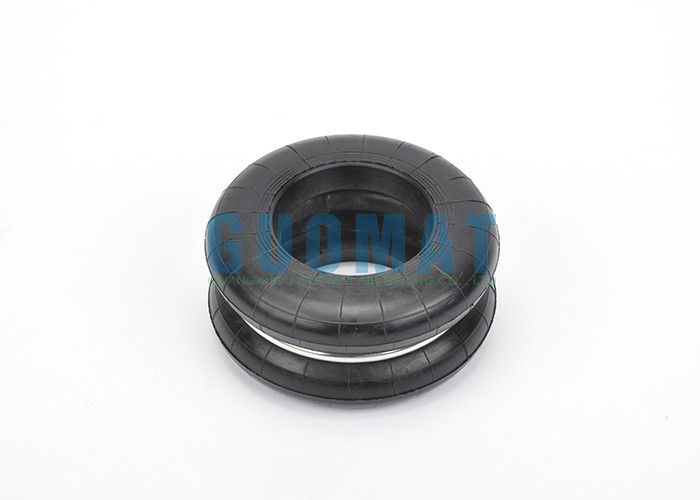

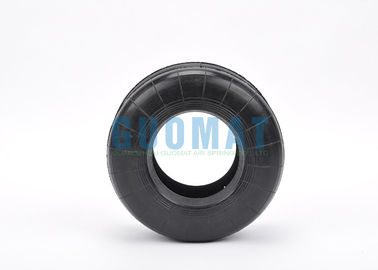

S-120-2R Rubber Air Spring 120-2 For Single , Double Acting , Three Move Punch Press

S-120-2R Rubber Air Spring 120-2 For Single , Double Acting , Three Move Punch Press

    • S-120-2R Rubber Air Spring 120-2 For Single , Double Acting , Three Move Punch Press
    • S-120-2R Rubber Air Spring 120-2 For Single , Double Acting , Three Move Punch Press
    • S-120-2R Rubber Air Spring 120-2 For Single , Double Acting , Three Move Punch Press
    • S-120-2R Rubber Air Spring 120-2 For Single , Double Acting , Three Move Punch Press
    • S-120-2R Rubber Air Spring 120-2 For Single , Double Acting , Three Move Punch Press
    • S-120-2R Rubber Air Spring 120-2 For Single , Double Acting , Three Move Punch Press
  • S-120-2R Rubber Air Spring 120-2 For Single , Double Acting , Three Move Punch Press

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: S-120-2R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,paypal or others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Rubber And Stainless Steel Yokohama: S-120-2R
    GUOMAT: F-120-2R Layer Number: 2 Convolution
    Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.7 Hz
    High Light:

    triple convoluted air spring

    ,

    double convoluted air spring

    S-120-2R Rubber Air Spring 120-2 For Single, Double Acting, Three Move Punch Press

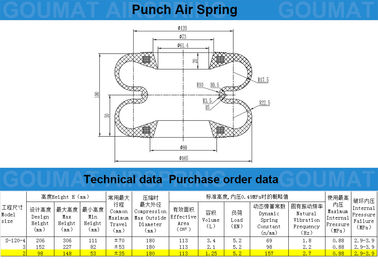

    S-120 items Detailed Parameter Table:





    GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
    Design High(mm) Maximum High(mm) Minimum Height(mm)
    F-120-4 S-120-4 206 306 111 ±70 180
    F-120-3 S-120-3 152 227 82 ±53 180
    F-120-2 S-120-2 98 148 53 ±35 180





    GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
    Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
    F-120-4 S-120-4 113 3.4 5.2 69 1.8 0.88 2.9-3.9
    F-120-3 S-120-3 113 2.1 5.2 98 2.2 0.88 2.9-3.9
    F-120-2 S-120-2 113 1.25 5.2 157 2.7 0.88 2.9-3.9
    F-100-4 S-100-4 79 1.95 3.9 59 1.9 0.88 2.9-3.9
    F-90-3 S-90-3 79 1.4 3.9 78 2.2 0.88 2.9-3.9
    F-90-2 S-90-2 79 0.85 3.9 118 2.7 0.88 2.9-3.9
    F-90-1 S-90-1 63.5 0.5 3.1 103 2.9 0.88 3.9-4.9



    S-120-2R air spring fits below items



    Papermaking equipment

    Scissor lift

    Mechanical Hopper vibration and damping handling stop

    Direct force

    Platform lift

    Short stroke mechanical linkage

    Hot foil stamping press

    Impact absorbtion

    Roller tensioning

    Quick lock device

    Reel tensioning

    Machine isolation





    GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



    GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
    F-600-1 F-600-R1 600-1r F-240-4 F-240-R4 240-4r
    F-600-2 F-600-R2 600-2r F-240-3 F-240-R3 240-3r
    F-600-3 F-600-R3 600-3r F-240-2 F-240-R2 240-2r
    F-600-4 F-600-R4 600-4r F-240-1 F-240-R1 240-1r
    F-600-5 F-600-R5 600-5r F-220-4 F-220-R4 220-4r
    F-550-2 F-550-R2 550-2r F-220-3 F-220-R3 220-3r
    F-550-3 F-550-R3 550-3r F-220-2 F-220-R2 220-2r
    F-500-2 F-500-R2 500-2r F-200-2 F-200-R2 200-2r
    F-500-3 F-500-R3 500-3r F-200-3 F-200-R3 200-3r
    F-500-4 F-500-R4 500-4r F-200-4 F-200-R4 200-4r
    F-500-5 F-500-R5 500-5r F-160-1 F-160-R1 160-1r
    F-450-1 F-450-R1 450-1r F-160-2 F-160-R2 160-2r
    F-450-2 F-450-R2 450-2r F-160-3 F-160-R3 160-3r
    F-450-3 F-450-R3 450-3r F-160-4 F-160-R4 160-4r
    F-450-4 F-450-R4 450-4r F-120-4 F-120-R4 120-4r
    F-450-5 F-450-R5 450-5r F-120-3 F-120-R3 120-3r
    F-400-2 F-400-R2 400-2r F-120-2 F-120-R2 120-2r
    F-400-3 F-400-R3 400-3r F-100-4 F-100-R4 100-4r
    F-400-4 F-400-R4 400-4r F-90-3 F-90-R3 90-3r
    F-400-5 F-400-R5 400-5r F-90-2 F-90-R2 90-2r
    F-350-1 F-350-R1 350-1r F-90-1 F-90-R1 90-1r
    F-350-2 F-350-R2 350-2r F-300-1 F-300-R1 300-1r
    F-350-3 F-350-R3 350-3r F-300-2 F-300-R2 300-2r
    F-350-4 F-350-R4 350-4r F-300-3 F-300-R3 300-3r
          F-300-4 F-300-R4 300-4r
