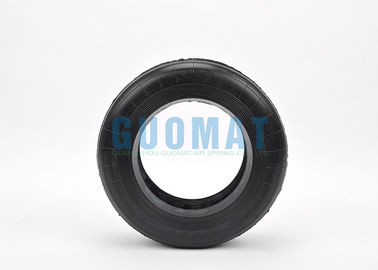

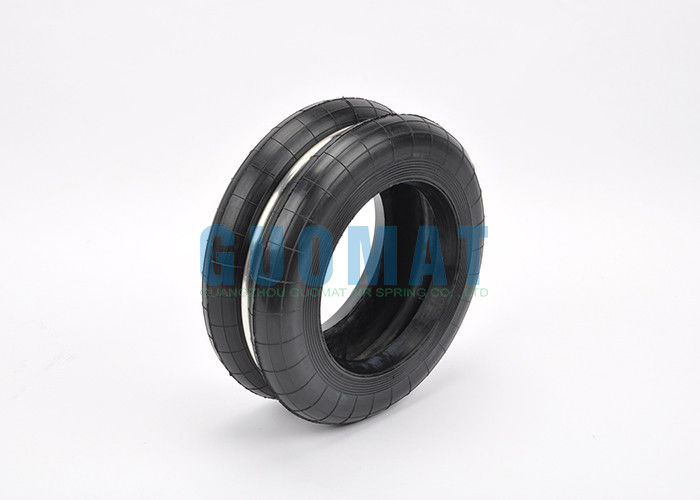

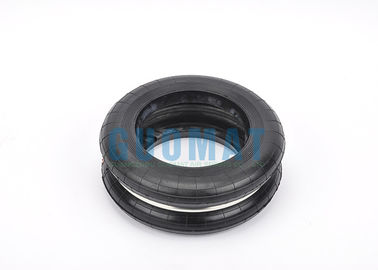

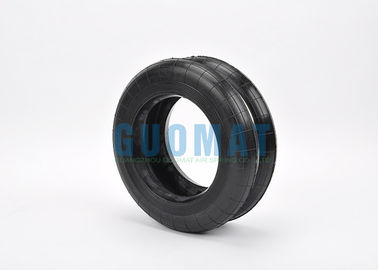

S-240-2 Steel Girdle Ring YOKOHAMA Air Spring 2 Convolution For Crankless Press

China S-240-2 Steel Girdle Ring YOKOHAMA Air Spring 2 Convolution For Crankless Press supplier
S-240-2 Steel Girdle Ring YOKOHAMA Air Spring 2 Convolution For Crankless Press supplier S-240-2 Steel Girdle Ring YOKOHAMA Air Spring 2 Convolution For Crankless Press supplier S-240-2 Steel Girdle Ring YOKOHAMA Air Spring 2 Convolution For Crankless Press supplier S-240-2 Steel Girdle Ring YOKOHAMA Air Spring 2 Convolution For Crankless Press supplier S-240-2 Steel Girdle Ring YOKOHAMA Air Spring 2 Convolution For Crankless Press supplier

Large Image :  S-240-2 Steel Girdle Ring YOKOHAMA Air Spring 2 Convolution For Crankless Press

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: S-240-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokohama: S-240-2
GUOMAT: F-240-2 Layer Number: 2 Convolution
Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.4 Hz


S-240-2 YOKOHAMA Air Spring 240-2 With Steel Girdle Ring For Crankless Press


Net Weight:2.8 KG

Gross Weight:3.3 KG

Package Size:120mm*295mm*295mm

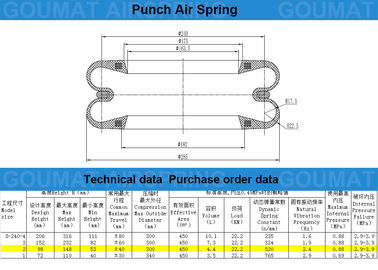

S-240 items Detailed Parameter Table:


GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-240-4 S-240-4 206 316 111 ±80 300
F-240-3 S-240-3 152 232 82 ±60 300
F-240-2 S-240-2 98 148 53 ±40 300
F-240-1 S-240-1 72 110 40 ±30 340




GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-240-4 S-240-4 450 10.1 22.2 235 1.6 0.88 2.9-3.9
F-240-3 S-240-3 450 7.3 22.2 324 1.9 0.88 2.9-3.9
F-240-2 S-240-2 450 4.4 22.2 520 2.4 0.88 2.9-3.9
F-240-1 S-240-1 450 3.5 22.2 765 2.9 0.69 2.9-3.9



This item can use in the following device and machine:

1 Large washing machine, supporting industrial dewatering machine
2 Since the vibration isolation effect is large, the frame structure can be simplified.
3 Stoppers for transport devices
4 Drum elevator for brake tester

5Waterway Valve Operation
6 Shaker Balancer

7 stamping die cushion device
8 for paper machine roll
9 Elevator shock absorber
10 Belt conveyor tensioning device
11 Roller Conveyor Elevator



GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:


GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R F-600-r1 F-240-4 S-240-4R F-240-r4
F-600-2 S-600-2R F-600-r2 F-240-3 S-240-3R F-240-r3
F-600-3 S-600-3R F-600-r3 F-240-2 S-240-2R F-240-r2
F-600-4 S-600-4R F-600-r4 F-240-1 S-240-1R F-240-r1
F-600-5 S-600-5R F-600-r5 F-220-4 S-220-4R F-220-r4
F-550-2 S-550-2R F-550-r2 F-220-3 S-220-3R F-220-r3
F-550-3 S-550-3R F-550-r3 F-220-2 S-220-2R F-220-r2
F-500-2 S-500-2R F-500-r2 F-200-2 S-200-2R F-200-r2
F-500-3 S-500-3R F-500-r3 F-200-3 S-200-3R F-200-r3
F-500-4 S-500-4R F-500-r4 F-200-4 S-200-4R F-200-r4
F-500-5 S-500-5R F-500-r5 F-160-1 S-160-1R F-160-r1
F-450-1 S-450-1R F-450-r1 F-160-2 S-160-2R F-160-r2
F-450-2 S-450-2R F-450-r2 F-160-3 S-160-3R F-160-r3
F-450-3 S-450-3R F-450-r3 F-160-4 S-160-4R F-160-r4
F-450-4 S-450-4R F-450-r4 F-120-4 S-120-4R F-120-r4
F-450-5 S-450-5R F-450-r5 F-120-3 S-120-3R F-120-r3
F-400-2 S-400-2R F-400-r2 F-120-2 S-120-2R F-120-r2
F-400-3 S-400-3R F-400-r3 F-100-4 S-100-4R F-100-r4
F-400-4 S-400-4R F-400-r4 F-90-3 S-90-3R F-90-r3
F-400-5 S-400-5R F-400-r5 F-90-2 S-90-2R F-90-r2
F-350-1 S-350-1R F-350-r1 F-90-1 S-90-1R F-90-r1
F-350-2 S-350-2R F-350-r2 F-300-1 S-300-1R F-300-r1
F-350-3 S-350-3R F-350-r3 F-300-2 S-300-2R F-300-r2
F-350-4 S-350-4R F-350-r4 F-300-3 S-300-3R F-300-r3
      F-300-4 S-300-4R F-300-r4
