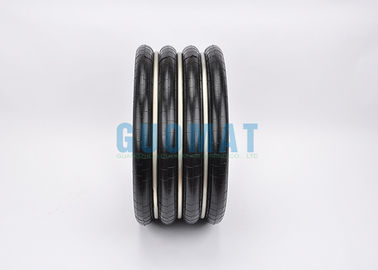

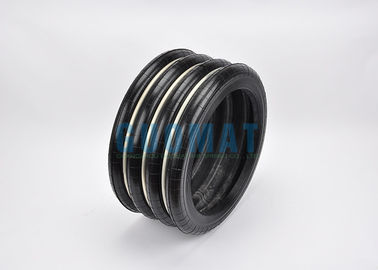

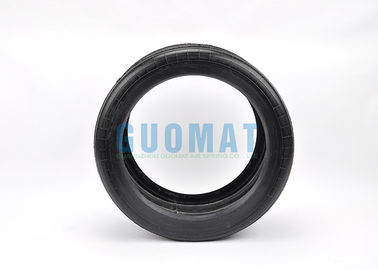

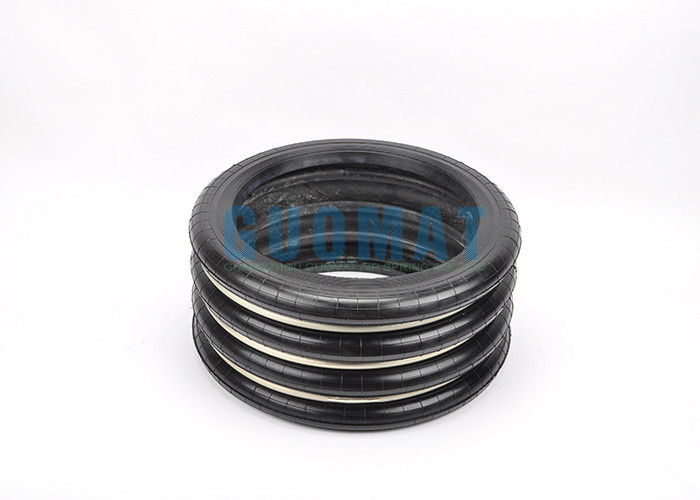

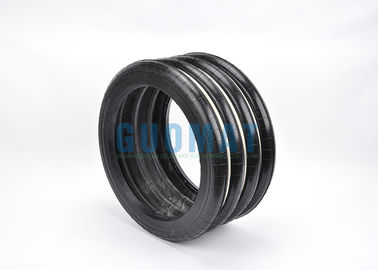

YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring

YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring

    • YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring
    • YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring
    • YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring
    • YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring
    • YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring
    • YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring
  • YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: S-350-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,paypal or others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Rubber And Stainless Steel Yokohama: S-350-4
    GUOMAT: F-350-4 Layer Number: 4 Convolution
    Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 1.6 Hz
    High Light:

    triple convoluted air spring

    ,

    double convoluted air spring

    YOKOHAMA S-350-4 Air Spring Cushion 350-4 With Triple Steel Girdle Ring For Screw Press

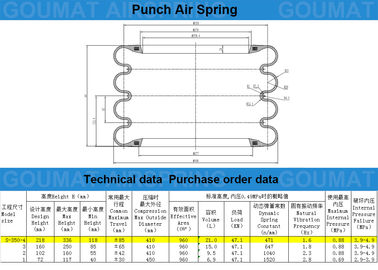

    S-350 items Detailed Parameter Table:



    GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
    Design High(mm) Maximum High(mm) Minimum Height(mm)
    F-350-1 S-350-1 72 117 40 ±30 450
    F-350-2 S-350-2 102 160 55 ±42 410
    F-350-3 S-350-3 160 250 85 ±65 410
    F-350-4 S-350-4 218 336 118 ±85 410



    GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
    Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
    F-350-1 S-350-1 960 6.9 47.1 1520 2.8 0.69 2.9-3.9
    F-350-2 S-350-2 960 9.5 47.1 1040 2.3 0.88 3.9-4.9
    F-350-3 S-350-3 960 15 47.1 647 1.8 0.88 3.9-4.9
    F-350-4 S-350-4 960 21 47.1 471 1.6 0.88 3.9-4.9



    GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



    GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
    F-600-1 S-600-1R S600-1 F-240-4 S-240-4R S240-4
    F-600-2 S-600-2R S600-2 F-240-3 S-240-3R S240-3
    F-600-3 S-600-3R S600-3 F-240-2 S-240-2R S240-2
    F-600-4 S-600-4R S600-4 F-240-1 S-240-1R S240-1
    F-600-5 S-600-5R S600-5 F-220-4 S-220-4R S220-4
    F-550-2 S-550-2R S550-2 F-220-3 S-220-3R S220-3
    F-550-3 S-550-3R S550-3 F-220-2 S-220-2R S220-2
    F-500-2 S-500-2R S500-2 F-200-2 S-200-2R S200-2
    F-500-3 S-500-3R S500-3 F-200-3 S-200-3R S200-3
    F-500-4 S-500-4R S500-4 F-200-4 S-200-4R S200-4
    F-500-5 S-500-5R S500-5 F-160-1 S-160-1R S160-1
    F-450-1 S-450-1R S450-1 F-160-2 S-160-2R S160-2
    F-450-2 S-450-2R S450-2 F-160-3 S-160-3R S160-3
    F-450-3 S-450-3R S450-3 F-160-4 S-160-4R S160-4
    F-450-4 S-450-4R S450-4 F-120-4 S-120-4R S120-4
    F-450-5 S-450-5R S450-5 F-120-3 S-120-3R S120-3
    F-400-2 S-400-2R S400-2 F-120-2 S-120-2R S120-2
    F-400-3 S-400-3R S400-3 F-100-4 S-100-4R S100-4
    F-400-4 S-400-4R S400-4 F-90-3 S-90-3R S90-3
    F-400-5 S-400-5R S400-5 F-90-2 S-90-2R S90-2
    F-350-1 S-350-1R S350-1 F-90-1 S-90-1R S90-1
    F-350-2 S-350-2R S350-2 F-300-1 S-300-1R S300-1
    F-350-3 S-350-3R S350-3 F-300-2 S-300-2R S300-2
    F-350-4 S-350-4R S350-4 F-300-3 S-300-3R S300-3
          F-300-4 S-300-4R S300-4



    YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring 0YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring 1YOKOHAMA S-350-4 Rubber Air Spring Cushion 350-4 With Triple Steel Girdle Ring 2
