S-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch Press

China S-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch Press supplier
S-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch Press supplier S-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch Press supplier S-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch Press supplier S-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch Press supplier S-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch Press supplier

Large Image :  S-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch Press

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: S-200-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokohama: S-200-2
GUOMAT: F-200-2R Layer Number: 2 Convolution
Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.5 Hz

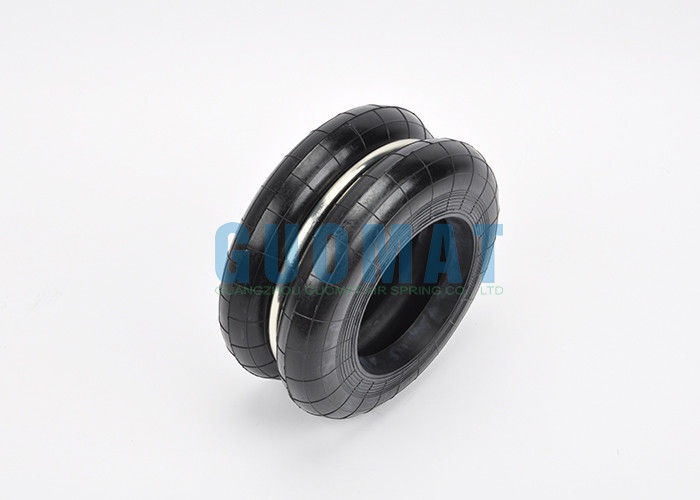

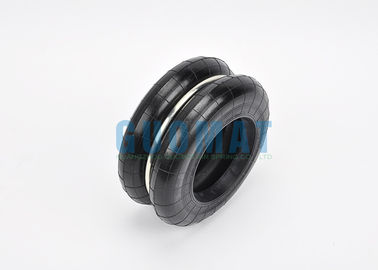

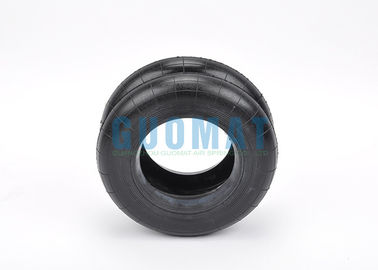

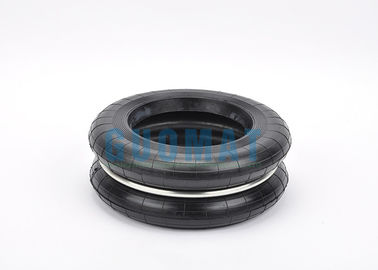

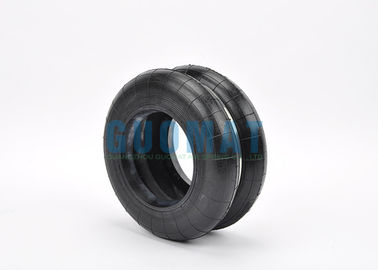

S-200-2R Rubber Air Spring 200-2 Air Cushion Airbag For Hydraulic Punch Press





Net Weight:2.5 KG



Gross Weight:3.0 KG



Package Size:120mm*260mm*260mm

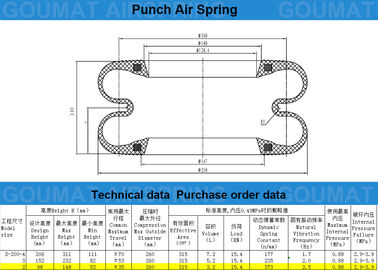

S-200 items Detailed Parameter Table:



GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-200-2 S-200-2 98 148 53 ±35 260
F-200-3 S-200-3 152 232 82 ±53 260
F-200-4 S-200-4 206 311 111 ±70 260



GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-200-2 S-200-2 315 3.2 15.4 373 2.5 0.88 2.9-3.9
F-200-3 S-200-3 315 5.2 15.4 235 2 0.88 2.9-3.9
F-200-4 S-200-4 315 7.2 15.4 177 1.7 0.88 2.9-3.9





Features:



1. The bellows type has less deformation of the rubber film during operation (expansion and contraction), so that excellent durability can be obtained.



2, The main component is rubber, without any sliding parts, so it can be easily maintained without refueling.



3, this air spring compared with other types of air springs, large stroke installation height can be kept low.



4, Because the air is used as an elastic body, it can be flexibly subjected to a large load by damping the compressed air. Such air springs do not allow other springs to use together.



5, By changing the internal pressure by compressing the air, the air spring withstands a wide range of pressure changes, so it is used in punching machines where the pressure range is very different.



6. It can be used with height adjustment valve, which can always maintain a constant height to prevent load fluctuations.



7, It can be used together with auxiliary tank and throttle valve to obtain excellent damping effect. And it can reduce the resonance amplitude.



8, This air spring is simple in structure and easy to install and disassemble.





GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



Japan Yokohama Rubber Air Spring Cushion Have The Following Specifications And Models:



S-300-1R, S-300-2R, S-300-3R, S-300- 4R, S-350-1R, S-350-2R, S-350-3R, S-350-4R, S-400-2R, S-400-3R, S-400-4R, S-400-5R S-450-1R, 2R, 3R, 4R, S-500-2R, 3R, 4R, Guangzhou GUOMAT, S-500-5R, S-550-2R, S-550-2R, S-550-3R S -600-1R, 2R, 3R, 4R, 5R, S-730-1R, 2R, 3R, 4R, 5R, 6R, S-50-2R, S-50-3R, S-60-2R, S-60 -3R, S-60-4R, S-90-3R, S-100-2R, S-100-3R, S-100-4R, S-120-2R, S-120-3R, S-120-4R , S-120-4R, S-160-1R, 2R, 3R, S-160-4R, S-200-2R, S-200-3R, S-200-4R, S-200-4R, S-220 -2R, S-220-3R, S-220-4R, S-240-1R, S-240-2R, S-240-3R, S-240-4R,



Bmw Station Si / Springride (Spratt), Taiwan Ysair Airbag / Air Cushion Specifications Are As Follows :



YS-65-1, YS-115-1 , YS-115-2, YS-130-1, YS-130-2, YS-160-1, YS-160-2, YS-210-1, YS-210-2, YS-250-1, YS -250-2, YS-280-1, YS-280-2, YS-320-1, YS-320-2, YS-320-3, YS-335-1, YS-335-2, YS-335 -3, YS-405-1, Y-S405-2, YS-405-3, YS-460-1, YS-460-2, YS-460-3, YS-510-1, YS-510-2 , YS-510-3, YS-560-1, YS-560-2, YS-560-3, YS-610-1, YS-610-2, YS-610-3, YS-660-1, YS -660-2, YS-660-3, YS-710-1, YS-710-2, YS-710-3;



S-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch PressS-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch PressS-200-2R Rubber Air Spring S200-2 Air Cushion Airbag For Hydraulic Punch Press
