|Place of Origin:||China|
|Minimum Order Quantity:||1pc|
|Packaging Details:||strong carton box or as customers need|
|Delivery Time:||2-8 work days|
|Payment Terms:||T/T, Western Union,Paypal or Others|
|Material:||Aluminum Alloy And Rubber||GUOMAT:||188102H-1|
|Warranty:||12 Months||Net Weight:||2.05 KG|
|Other Name:||Air Spring||Pressure Ability:||2-8 M Pa|
|Gross Weight:||2.6 KG||Flange Ring:||With Or Without|
|Connection Method:||Flange Connection|
convoluted air spring,
air helper springs

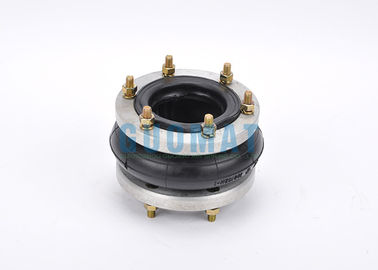

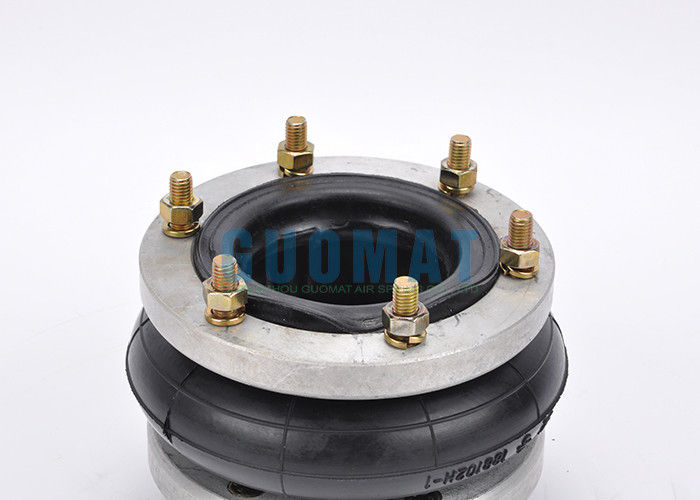

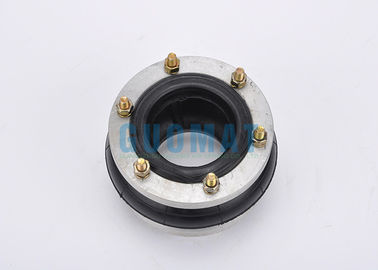

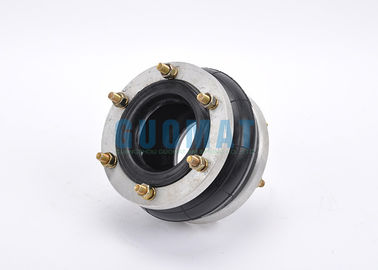

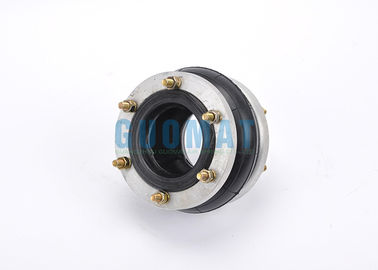

Guomat 188102H-1 Industrial Air Spring Can With or Without Flange Ring
Guomat 188102H-1 Single Convoluted Air Spring Specifications
❶Nut / Blind Nut
Top Cover Plate Screw number: 6 pcs
Bottom Cover Plate Screw number : 6 pcs
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 175 mm
Bottom Cover Plate Diameter: 175 mm
In 0.7 M pa,Rubber Bellows Diameter : 210 mm
Rubber Bellows Natural Height :102mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Girdle Hoop
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
