215120CY-1 Industrial Air Spring Single Convoluted Air Spring 12 Months Warranty

China 215120CY-1 Industrial Air Spring Single Convoluted Air Spring 12 Months Warranty supplier
215120CY-1 Industrial Air Spring Single Convoluted Air Spring 12 Months Warranty supplier 215120CY-1 Industrial Air Spring Single Convoluted Air Spring 12 Months Warranty supplier 215120CY-1 Industrial Air Spring Single Convoluted Air Spring 12 Months Warranty supplier 215120CY-1 Industrial Air Spring Single Convoluted Air Spring 12 Months Warranty supplier 215120CY-1 Industrial Air Spring Single Convoluted Air Spring 12 Months Warranty supplier

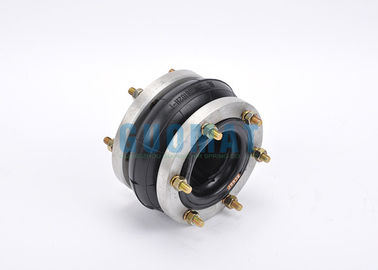

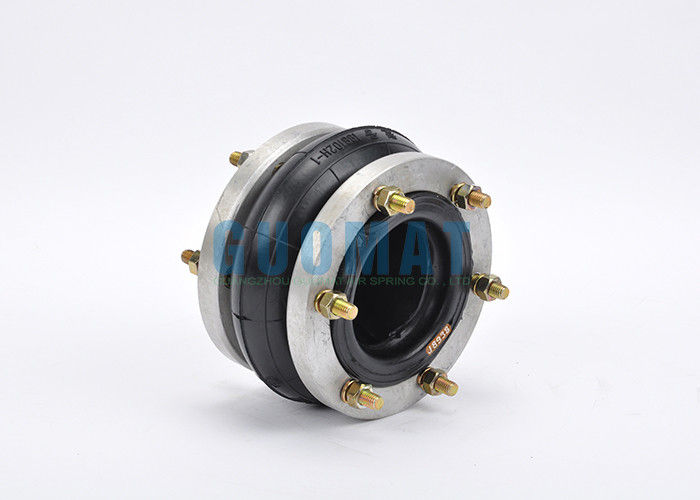

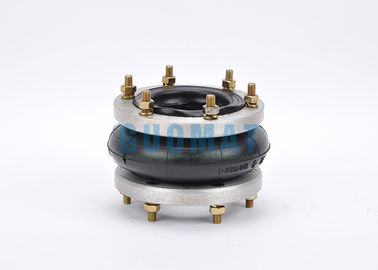

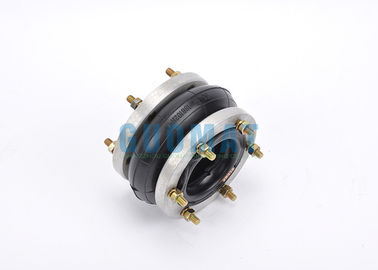

Large Image :  215120CY-1 Industrial Air Spring Single Convoluted Air Spring 12 Months Warranty

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 215120CY-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminum Alloy And Rubber GUOMAT: 215120CY-1
Warranty: 12 Months Net Weight: 3.05 KG
Other Name: Air Spring Pressure Ability: 2-8 M Pa
Gross Weight: 3.6 KG Flange Ring: With
Connection Method: Flange Connection

215120CY-1 Industrial Single Convoluted Air Spring With Flange Ring and Plate

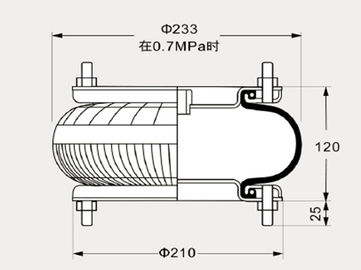

Guomat 215120CY-1 Single Convoluted Air Spring Specifications



❶Nut / Blind Nut

The Long Of The Nut:25 mm

Top Cover Plate Screw number: 6 pcs

Bottom Cover Plate Screw number : 6 pcs

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPTF

❸ Cover Plate

Top Cover Plate Diameter: 210 mm

Bottom Cover Plate Diameter: 210 mm

❹Rubber Bellows

In 0.7 M pa,Rubber Bellows Diameter : 233 mm

Rubber Bellows Natural Height :120 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

Without Girdle Hoop





The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects





Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate



Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.



Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.



Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.



Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.



Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.





Flange connection type of air spring model comparison table
GUOMAT NO. Contitech NO. GUOMAT NO. Contitech NO.
FS22-3DICR FS 22-3 DI CR FS960-12RS FS 960-12 RS
FS44-5DICR FS 44-5 DI CR FS1330-11RS FS 1330-11 RS
FS76-7DICR FS 76-7 DI CR FS1710-12RS FS 1710-12 RS
FS76-7DSCR FS 76-7 DS CR FS2870-16RS FS 2870-16 RS
FS138-8DS FS 138-8 DS FS5450-16RS FS 5450-16 RS
FS210-10DS FS 210-10 DS FD960-22RS FD 960-22 RS
FS412-10DS FS 412-10 DS FD1120-30RI FD 1120-30 RI
FS614-13DS FS 614-13 DS FD1330-25RS FD 1330-25 RS
FS816-15DS FS 816-15 DS FD1710-25RS FD 1710-25 RS
FD22-4DICR FD 22-4 DI CR FD1730-40RI FD 1730-40 RI
FD44-10DICR FD 44-10 DI CR FD2380-24RS FD 2380-24 RS
FD76-14DICR FD 76-14 DI CR FD2470-40RI FD 2470-40 RI
FD76-14DSCR FD 76-14 DS CR FD2870-30RS FD 2870-30 RS
FD138-18DS FD 138-18 DS FD5450-28RS FD 5450-28 RS
FD209-21DS FD 209-21 DS FT960-34RS FT 960-34 RS
FD210-22DS FD 210-22 DS FT1330-35RS FT 1330-35 RS
FD412-18DS FD 412-18 DS FT1710-38RS FT 1710-38 RS
FD614-26DS FD 614-26 DS FT2870-45RS FT 2870-45 RS
FD816-30DS FD 816-30 DS FT5450-44RS FT 5450-44 RS
FT22-6DICR FT 22-6 DI CR
FT44-15DICR FT 44-15 DI CR
FT76-20DICR FT 76-20 DI CR
FT76-20DSCR FT 76-20 DS CR
FT138-26DS FT 138-26 DS
FT210-32DS FT 210-32 DS
FT412-32DS FT 412-32 DS
FT614-36DS FT 614-36 DS
FT816-40DS FT 816-40 DS
