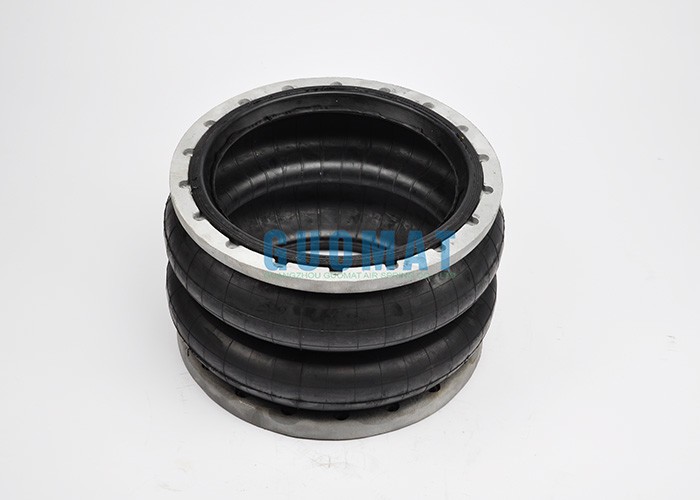

W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine

China W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine supplier
W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine supplier W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine supplier W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine supplier W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine supplier W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine supplier

Large Image :  W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W01-358-7902 / W013587902

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminum Alloy And Rubber GUOMAT: W01-358-7902 / W013587902
Warranty: 12 Months Net Weight: 13.6 KG
Other Name: Industry Air Spring Isolator Pressure Ability: 2-8 M Pa
Gross Weight: 14.6 KG Flange Ring: With Or Without
Connection Method: Flange Connection

W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large paper machine

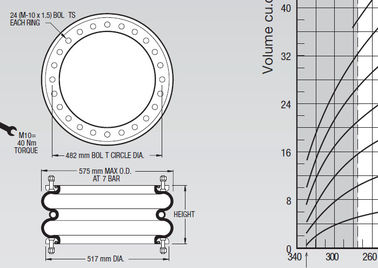

Industrial Double Convoluted Air Spring Specifications



Description Assembly

Style 29
Ribbed neck aluminum
bead rings (equal spacing),
45 mm bolts, nuts, washers
Order No.:W01-M58-7532

Two Ply Bellows

Rolled plate assembly,
1/2 blind nuts, 3/4 BSP
Order No.: W01-358-7275

Rubber bellows only
Order No.: W01-358-7902

Assembly weight:13.06 kg.
Force to collapse to minimum height (@ 0 BAR) 311 N.


Style 207
Ribbed neck aluminum
bead rings (equal spacing),
45 mm bolts, nuts, washers
Order No.: W01-M58-6987

High Strength Construction
Rubber bellows only
Order No.: W01-358-0207



Force Table (Use for Airstroke™ actuator design)
Assembly Height (mm) Volume @ 7 BAR (cu cm) EFF Area @ 7 BAR (cm sq) @ 3 BAR @ 4 BAR @ 5 BAR @ 6 BAR @ 7 BAR
280 53863 1317 37.03 50.72 64.11 78.82 92.17
240 47704 1618 47.12 63.62 80.06 97.4 113.25
200 40443 1814 53.26 72.74 90.77 109.45 127
160 32306 1962 57.95 78.61 98.18 118.39 137.31
120 23824 2110 62.84 84.57 105.81 127.52 147.69
80 15280 2255 67.74 90.95 113.48 136.38 157.84





Dynamic Characteristics at 240 mm Design Height (Required for Airmount isolator design only)
Gauge
Pressure
(BAR)
Load (KN) Spring Rate (kN/m) Natural Frequency Hz
3 47.12 497 1.62
4 63.62 663 1.61
5 80.06 795 1.57
6 97.4 923 1.54
7 113.25 1050 1.52



W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine





Flange connection type of air spring model comparison table
GUOMAT NO. Contitech NO. GUOMAT NO. Contitech NO.
FS22-3DICR FS 22-3 DI CR FS960-12RS FS 960-12 RS
FS44-5DICR FS 44-5 DI CR FS1330-11RS FS 1330-11 RS
FS76-7DICR FS 76-7 DI CR FS1710-12RS FS 1710-12 RS
FS76-7DSCR FS 76-7 DS CR FS2870-16RS FS 2870-16 RS
FS138-8DS FS 138-8 DS FS5450-16RS FS 5450-16 RS
FS210-10DS FS 210-10 DS FD960-22RS FD 960-22 RS
FS412-10DS FS 412-10 DS FD1120-30RI FD 1120-30 RI
FS614-13DS FS 614-13 DS FD1330-25RS FD 1330-25 RS
FS816-15DS FS 816-15 DS FD1710-25RS FD 1710-25 RS
FD22-4DICR FD 22-4 DI CR FD1730-40RI FD 1730-40 RI
FD44-10DICR FD 44-10 DI CR FD2380-24RS FD 2380-24 RS
FD76-14DICR FD 76-14 DI CR FD2470-40RI FD 2470-40 RI
FD76-14DSCR FD 76-14 DS CR FD2870-30RS FD 2870-30 RS
FD138-18DS FD 138-18 DS FD5450-28RS FD 5450-28 RS
FD209-21DS FD 209-21 DS FT960-34RS FT 960-34 RS
FD210-22DS FD 210-22 DS FT1330-35RS FT 1330-35 RS
FD412-18DS FD 412-18 DS FT1710-38RS FT 1710-38 RS
FD614-26DS FD 614-26 DS FT2870-45RS FT 2870-45 RS
FD816-30DS FD 816-30 DS FT5450-44RS FT 5450-44 RS
FT22-6DICR FT 22-6 DI CR
FT44-15DICR FT 44-15 DI CR
FT76-20DICR FT 76-20 DI CR
FT76-20DSCR FT 76-20 DS CR
FT138-26DS FT 138-26 DS
FT210-32DS FT 210-32 DS
FT412-32DS FT 412-32 DS
FT614-36DS FT 614-36 DS
FT816-40DS FT 816-40 DS



W01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper MachineW01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper MachineW01-358-7902 Double Convoluted Air Spring W01-M58-7532 For Large Paper Machine
